- RS Stock No.:
- 381-0721
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- K3GN-NDC-FLK 24 VDC
- ผู้ผลิต / Manufacturer:
- Omron
7 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB15,423.86
(exc. VAT)
THB16,503.53
(inc. VAT)
Units | Per unit |
1 - 4 | THB15,423.86 |
5 - 9 | THB15,037.97 |
10 + | THB14,641.75 |
- RS Stock No.:
- 381-0721
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- K3GN-NDC-FLK 24 VDC
- ผู้ผลิต / Manufacturer:
- Omron
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
รายละเอียดสินค้า / Product Details

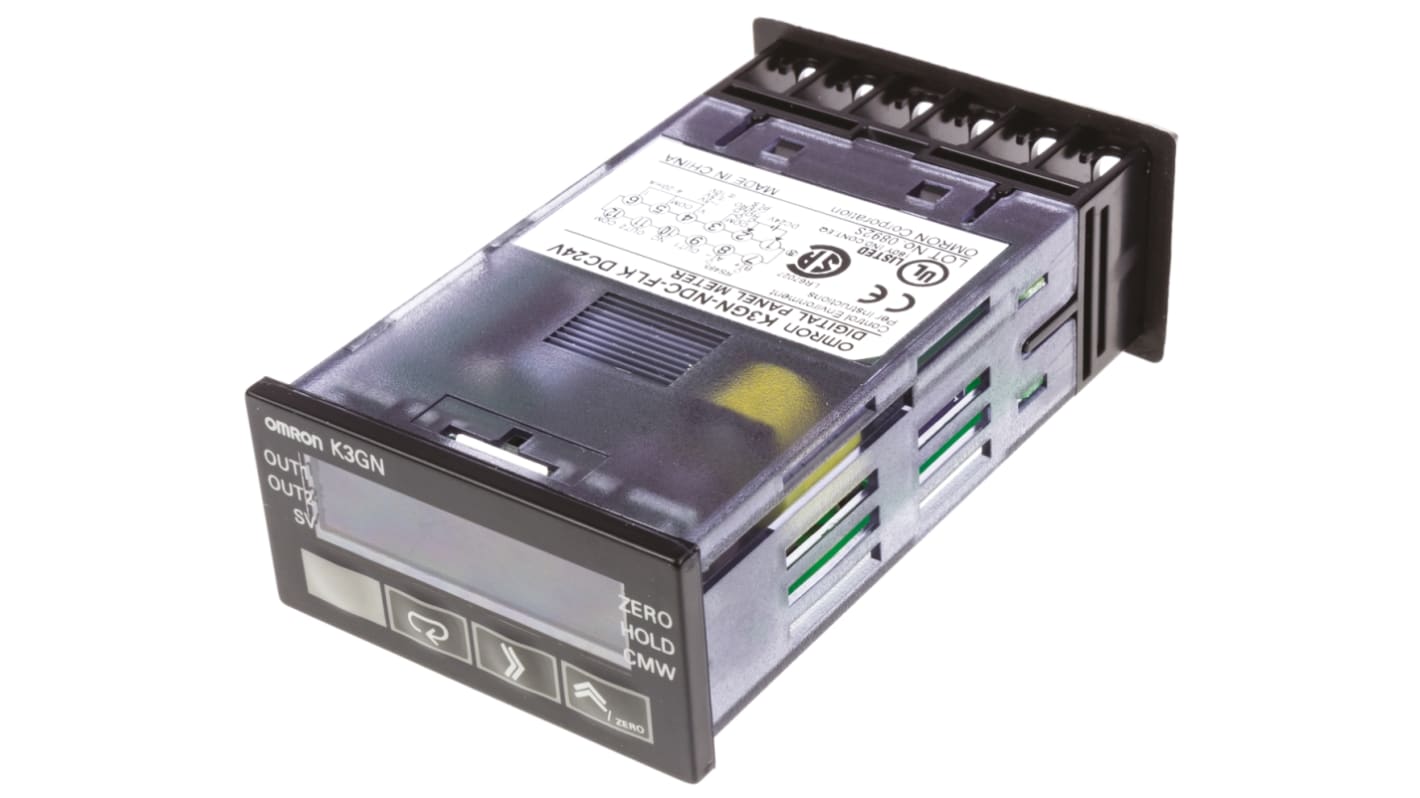

Process Panel Meters
Back lit 7mm high 5 digit LCD display (-19999 to 99999)
Configurable analogue inputs: 4-20mA, 0-20mA, 1-5V d.c., -5 to +5V d.c. and -10 to +10V d.c., all fully scaleable so can be configured to represent a wide range of engineering inputs
Supply voltage: 24V d.c.
Non-voltage and open collector inputs suitable for sensors, encoders and pulse inputs from 0.05 to 30Hz and 0.1 to 5000Hz
All inputs are simple to scale by setting the lower and upper limits and what they are to represent which are automatically linearised to the required scale
Accuracy ±0.1% Full Scale
Front panel protected to NEMA 4 (IP66)
Programmable display changes colour when activation or de-activation of outputs
Panel cut-out: 45 x 22.2mm
Dimensions: H24mm x W48mm x D83mm; depth behind panel: 80mm
CE marked in compliance with all current European noise and emissions regulations
Configurable analogue inputs: 4-20mA, 0-20mA, 1-5V d.c., -5 to +5V d.c. and -10 to +10V d.c., all fully scaleable so can be configured to represent a wide range of engineering inputs
Supply voltage: 24V d.c.
Non-voltage and open collector inputs suitable for sensors, encoders and pulse inputs from 0.05 to 30Hz and 0.1 to 5000Hz
All inputs are simple to scale by setting the lower and upper limits and what they are to represent which are automatically linearised to the required scale
Accuracy ±0.1% Full Scale
Front panel protected to NEMA 4 (IP66)
Programmable display changes colour when activation or de-activation of outputs
Panel cut-out: 45 x 22.2mm
Dimensions: H24mm x W48mm x D83mm; depth behind panel: 80mm
CE marked in compliance with all current European noise and emissions regulations
Approvals
UL and CSA
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Omron K3N Series
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Properties Measured | Current, Voltage |
Display Type | LCD |
Cutout Height | 22mm |
Cutout Width | 44.8mm |
Minimum Temperature | -10°C |
Maximum Temperature | +55°C |
