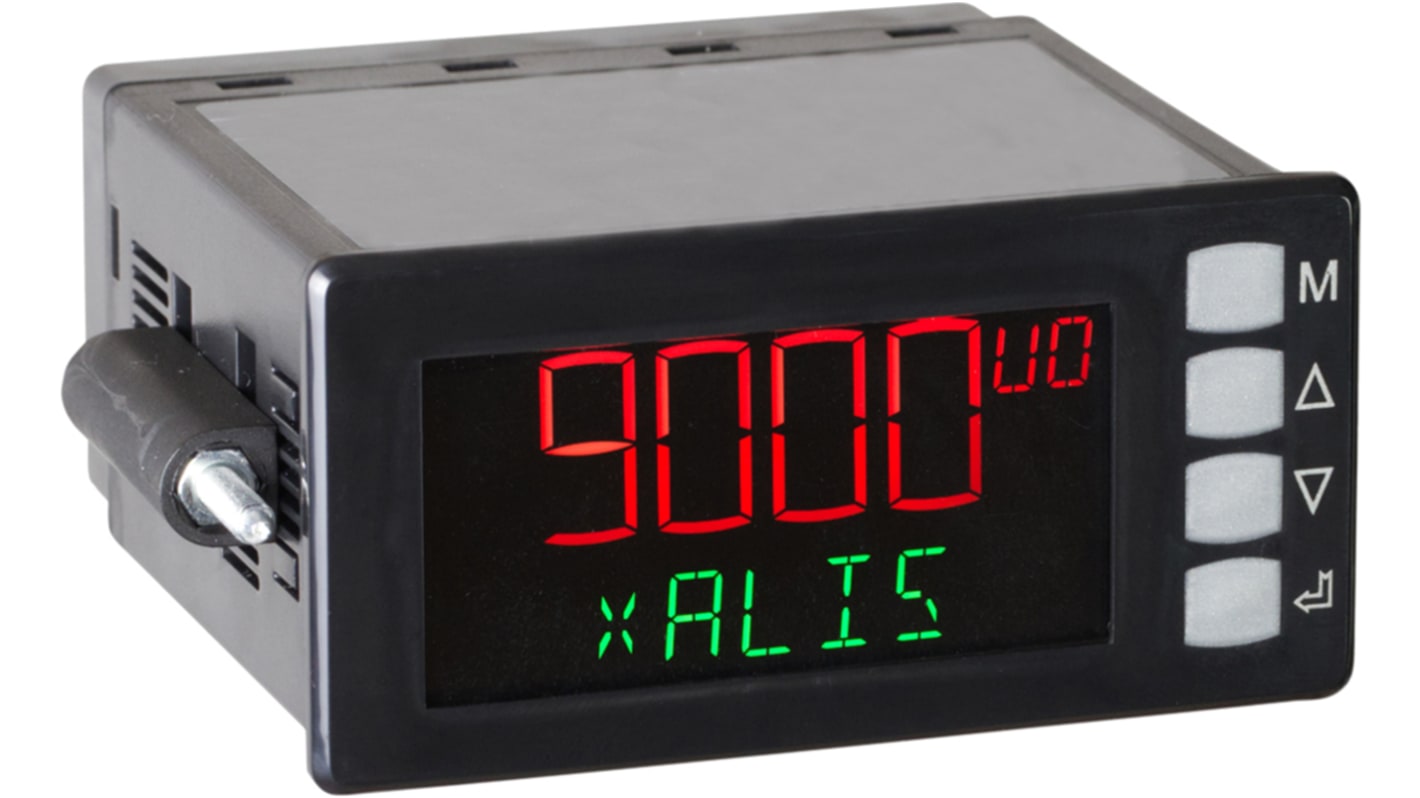

JM CONCEPT XALIS 9000 LCD Display, Two Color Digital Digital Panel Multi-Function Meter for Current, Potentiometer
- RS Stock No.:
- 231-3888
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- XALIS9000U0
- ผู้ผลิต / Manufacturer:
- JM CONCEPT
- RS Stock No.:
- 231-3888
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- XALIS9000U0
- ผู้ผลิต / Manufacturer:
- JM CONCEPT
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
รายละเอียดสินค้า / Product Details
The JM CONCEPT digital indicator comes with two-colour display allowing analogue and digital transmission of various signals. The flush-mount housing (IP65 48mm x 96mm x 85) equipped with plug-in connectors and a USB socket on the back. It comes with 1 universal input and supports RS485 USB communication.
Precision class 0,1
Input analogue / digital conversion 24 bits
Output analogue / digital conversion 16 bits
Thermal drift <25ppm
Maximum of consumption <11.3VA
Input analogue / digital conversion 24 bits
Output analogue / digital conversion 16 bits
Thermal drift <25ppm
Maximum of consumption <11.3VA
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Properties Measured | Current, Potentiometer Signals, Resistance, Temperature, Thermocouple, Voltage |
Display Type | LCD Display, Two Color Digital |
Cutout Height | 45mm |
Cutout Width | 92mm |
Depth | 85mm |
Number of Digits | 5 in Numeric, 9 in Alphanumeric |
Supply Voltage | 22 → 240 V dc, 90 → 230 V ac |
Digit Height | 18 mm |
Minimum Temperature | -10°C |
Maximum Temperature | +60°C |
Series | XALIS 9000 |
