รายละเอียดสินค้า / Product Details

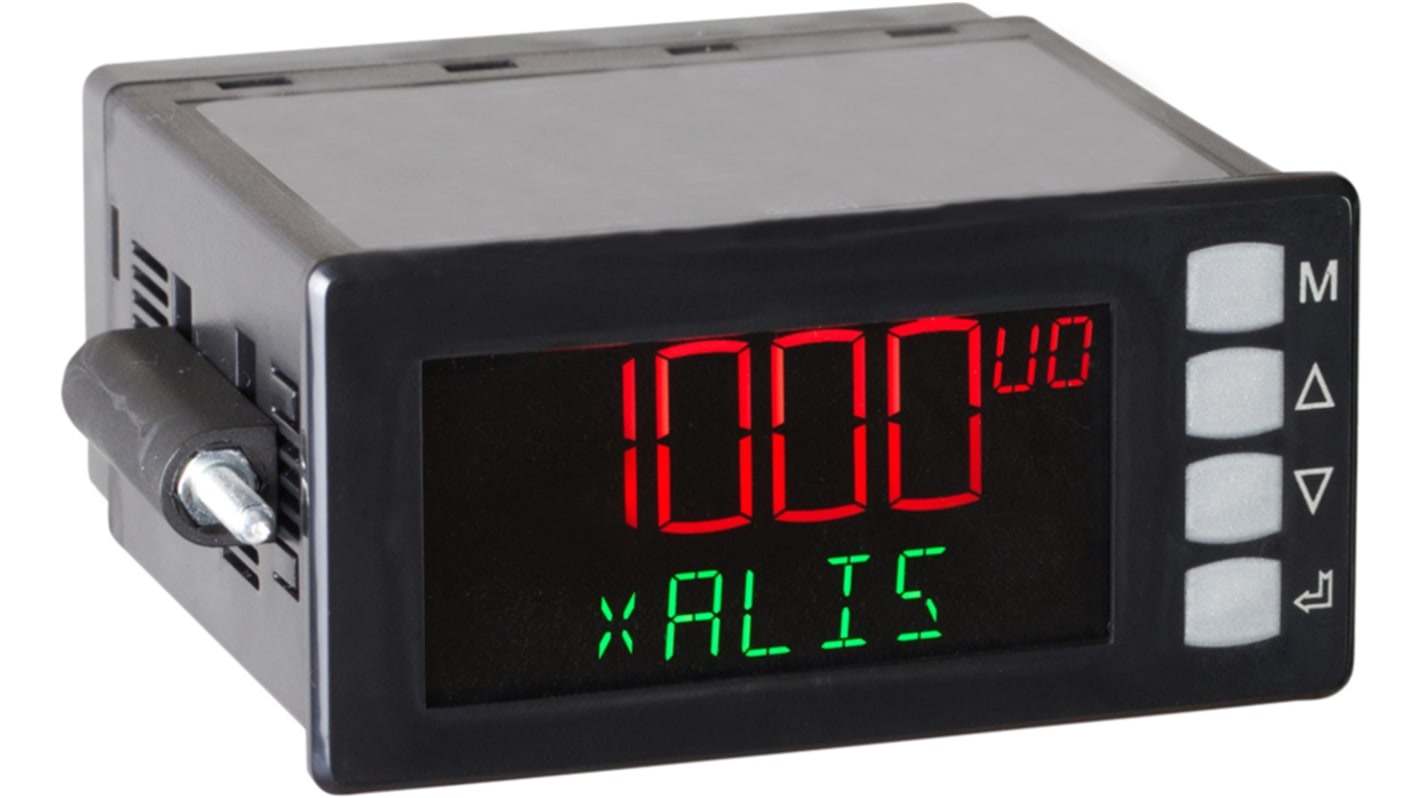

The JM CONCEPT digital indicator comes with two-colour display and is dedicated to Strain-gauge measurements. The flush-mount housing (IP65 48mm x 96mm x 85mm) equipped with plug-in connectors and a USB socket on the back. It has 1 strain gauge input and 1 analogue output. It supports RS485 USB communication.
Precision class 0,1
Input analogue / digital conversion 24 bits
Output analogue / digital conversion 16 bits
Thermal drift <25ppm
Maximum of consumption <13.25VA
Input analogue / digital conversion 24 bits
Output analogue / digital conversion 16 bits
Thermal drift <25ppm
Maximum of consumption <13.25VA
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Properties Measured | Strain Gauge |
Display Type | LCD Display, Two Color Digital |
Cutout Height | 45mm |
Cutout Width | 92mm |
Number of Digits | 5 in Numeric, 9 in Alphanumeric |
Depth | 85mm |
Digit Height | 18 mm |
Supply Voltage | 22 → 240 V dc, 90 → 230 V ac |
Minimum Temperature | -10°C |
Maximum Temperature | +60°C |
Series | XALIS 1000 |
