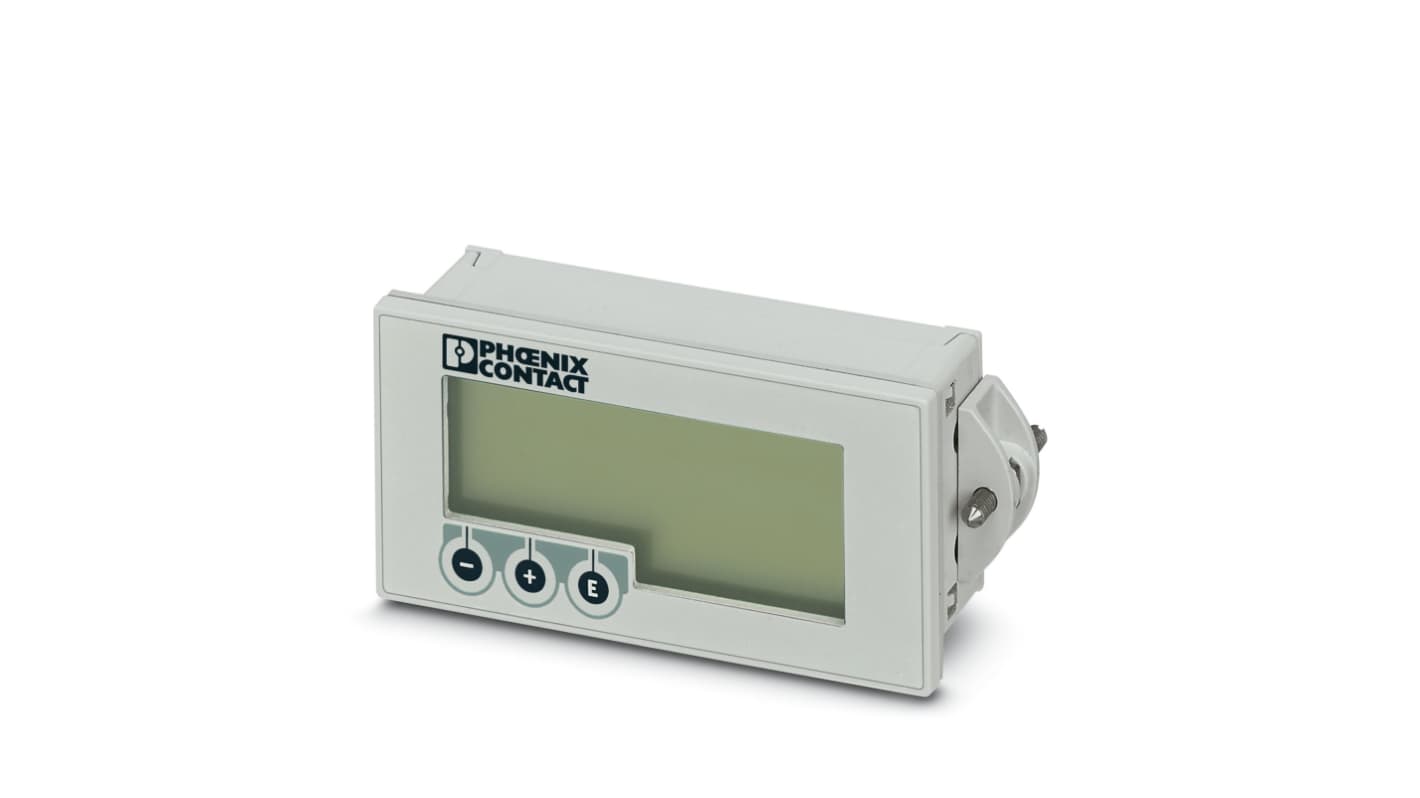

Phoenix Contact FA MCR-EX-DS-I-I-OLP Digital Digital Panel Multi-Function Meter for Current, 48mm x 96mm
- RS Stock No.:
- 176-9049
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2908800
- ผู้ผลิต / Manufacturer:
- Phoenix Contact
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 11/06/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB15,630.48
(exc. VAT)
THB16,724.61
(inc. VAT)
| Units | Per unit |
| 1 + | THB15,630.48 |
- RS Stock No.:
- 176-9049
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2908800
- ผู้ผลิต / Manufacturer:
- Phoenix Contact
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details
The device is an output loop-powered process indicator in the field housing for monitoring and displaying current signals or HART® process variables.The device displays measured current values or HART® variables.The device receives its energy from the 4 mA ... 20 mA current loop and accordingly requires no external supply.The device can either be used in 4 mA ... 20 mA mode or in HART® mode.The device meets the requirements of the HART® communication protocol specifications. The device can be used with devices from HART® version ≥5.0.
5-digit measured value indicator with dimensions, bar graph, and background lighting
Supply via 4 mA ... 20 mA signal
Use as the primary or secondary HART® master ≤1V voltage drop (HART®: ≤1.9 V)
Parameterization via front keypad
SIL impact-free
Supply via 4 mA ... 20 mA signal
Use as the primary or secondary HART® master ≤1V voltage drop (HART®: ≤1.9 V)
Parameterization via front keypad
SIL impact-free
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Properties Measured | Current |
| Display Type | Digital |
| Cutout Height | 48mm |
| Cutout Width | 96mm |
| Depth | 41.5mm |
| Minimum Temperature | -40°C |
| Maximum Temperature | +60°C |
| Measurement Range | 4 → 20mA |
| Series | FA MCR-EX-DS-I-I-OLP |
| Approvals | CSA 70106894, cULus Recognized, UL FILE E 330267 |
