- RS Stock No.:
- 291-4232
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 0529103
- ผู้ผลิต / Manufacturer:
- Hengstler
19 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB10,377.44
(exc. VAT)
THB11,103.86
(inc. VAT)
Units | Per unit |
1 - 2 | THB10,377.44 |
3 - 9 | THB9,962.34 |
10 + | THB9,547.25 |
- RS Stock No.:
- 291-4232
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 0529103
- ผู้ผลิต / Manufacturer:
- Hengstler
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details

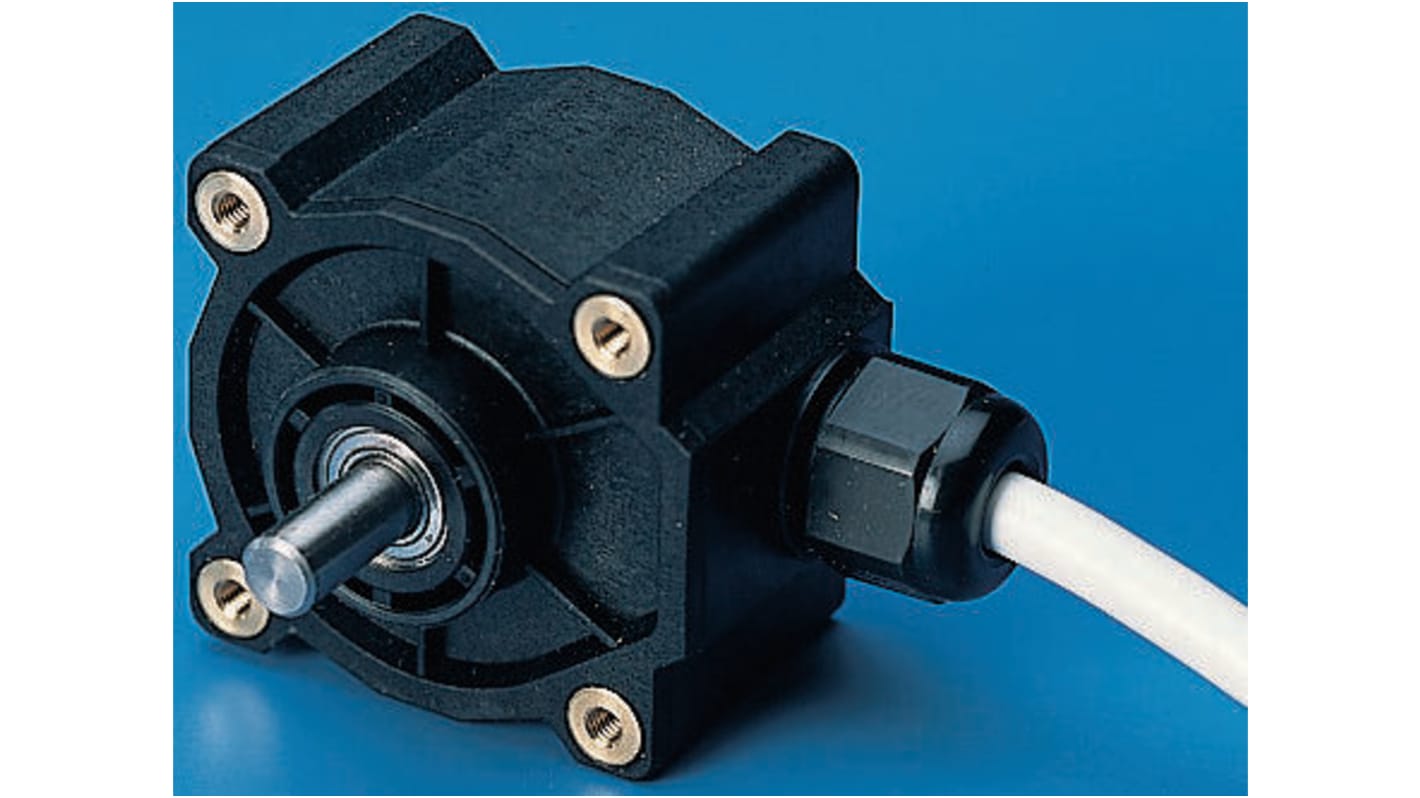

Incremental encoders series GI 38
Encoders for universal installation thanks to presence of 2 mounting faces, in front and rear.
Economical, long-life encoders thanks to the use of ball bearing rollers.
Low torque ratio.
Housing and front face of fibreglass-reinforced plastic.
Use of Opto-Asic technology for greater reliability and protection against electrical and electromagnetic interference.
Integrated control circuitry with alarm output.
Economical, long-life encoders thanks to the use of ball bearing rollers.
Low torque ratio.
Housing and front face of fibreglass-reinforced plastic.
Use of Opto-Asic technology for greater reliability and protection against electrical and electromagnetic interference.
Integrated control circuitry with alarm output.
Hengstler
Radial cable termination
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Encoder Technology | Incremental |
Series | RI38 |
Pulses Per Revolution | 360 |
Maximum Revolutions | 10000rpm |
Output Signal Type | Push Pull |
Supply Voltage | 10 → 30 V dc |
IP Rating | IP50 |
Overall Height | 44.2mm |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Switching Frequency | 200 kHz |
