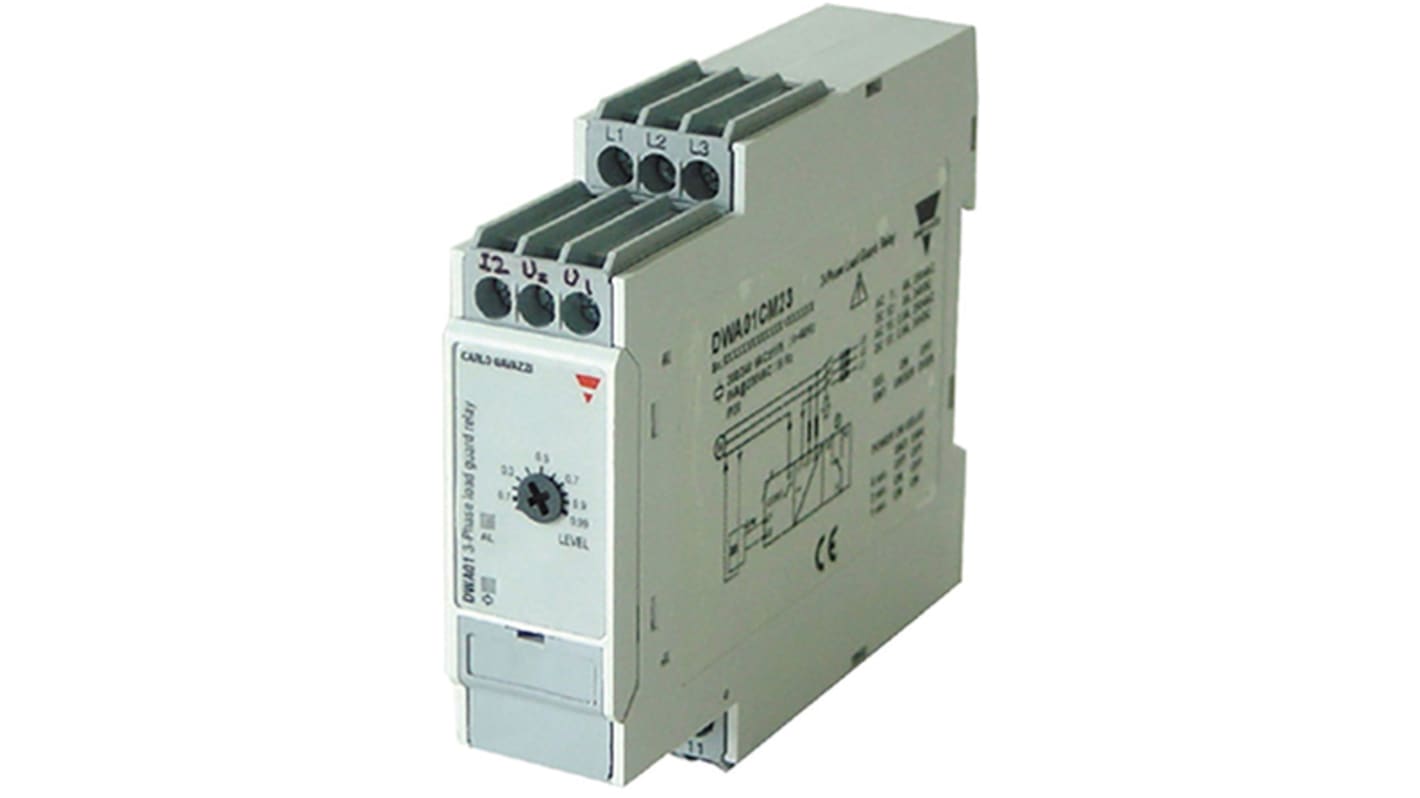

Carlo Gavazzi Power Factor Cosf Monitoring Relay With SPDT Contacts, 3 Phase, 380 → 480 V ac

  • RS Stock No. 859-3080
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. DWA01CM485A
  • ผู้ผลิต / Manufacturer Carlo Gavazzi
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
COO (Country of Origin): IT
รายละเอียดสินค้า / Product Details

3 Phase Load Guard Monitoring Relay

Carlo Gavazzi DWB01 & PWB01 series of precise TRMS power factor monitoring relays deisgned for use with 3 phase systems. Suitable for monitoring the actual load of asynchronous & symmetrical loads where proportional load & power factor is present. DWP01 & PWB01 series of monitoring relays feature a start/stop input allowing use of a manual switch to control the motor without any auxiliary device.
Another great feature of the DWB01 & PWB01 series is a latch function which enables the relays to be kept energised even after the alarm has finished

DIN rail (DWB01 series) and plug-in module (PWB01 series) variants available
TRMS load guard relays for 3 phase balanced applications
Power factor measurement within set parameters
Programmable latching or inhibit features
1 - 30 Seconds knob adjustable power ON delay
LEDs for relay, alarm & power indication

คุณสมบัติ / Specifications
คุณสมบัติ Value
Monitoring Application Power Factor Cosf
Supply Voltage 380 → 480 V ac
Contact Configuration SPDT
Electrical Phase 3
Time Delay 1 s, 2 s, 6 s
Width 99.5mm
Maximum Operating Temperature +50 (60 Hz) °C, +60 (50 Hz) °C
Height 83.5mm
Dimensions 22.5 x 99.5 x 83.5 mm
Minimum Operating Temperature -20°C
Length 22.5mm
Operating Temperature Range -20 → +50 (60 Hz) °C, -20 → +60 (50 Hz) °C
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 12/12/2019, จัดส่งภายใน (delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 9,176.67
(exc. VAT)
THB 9,819.04
(inc. VAT)
Units
Per unit
1 +
THB9,176.67
