- RS Stock No.:
- 856-8551
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DPC01DM69400HZ
- ผู้ผลิต / Manufacturer:
- Carlo Gavazzi
- RS Stock No.:
- 856-8551
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DPC01DM69400HZ
- ผู้ผลิต / Manufacturer:
- Carlo Gavazzi
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
รายละเอียดสินค้า / Product Details

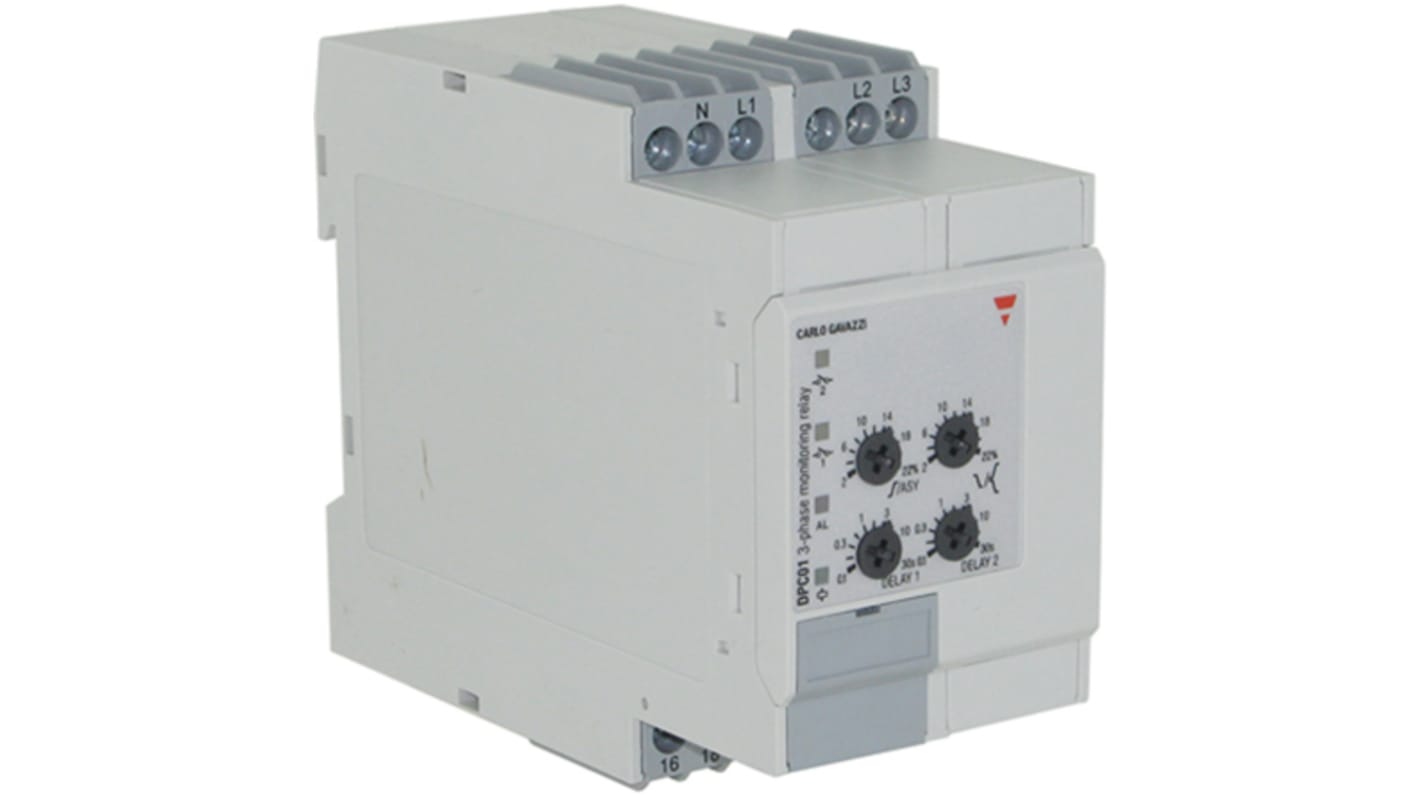

DPC01/PPC01 Multifunction Monitoring Relay
Carlo Gavazzi DPC01 & PPC01 series of monitoring relays provide the user with a comprehensive variety of monitoring options such as phase sequence, loss & asymmetry along with under & over voltage with separate set point adjustment.
Offers the facility to detect each individual phase is present and have the right sequence
Can ensure all phases are with set parameters
Adjustments can be made separately to setpoints for added customisation
Can detect if phase asymmetry is below user-defined set points
LED indication for relay, alarm & power supply status
Adjustable delays functions between 0.1-30 seconds
Can ensure all phases are with set parameters
Adjustments can be made separately to setpoints for added customisation
Can detect if phase asymmetry is below user-defined set points
LED indication for relay, alarm & power supply status
Adjustable delays functions between 0.1-30 seconds
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Monitoring Application | Phase, Voltage |
Electrical Phase | 3, 3+N |
Contact Configuration | SPDT |
Voltage Sensing Range | 510 → 793V ac |
Voltage Sensitivity | Overvoltage, Undervoltage |
Mounting Type | DIN Rail |
Phase Sensitivity | Asymmetry, Phase Loss, Phase Sequence, Tolerance |
Time Delay | 1 s, 6s |
Frequency Sensing Range | 50 → 400Hz |
Series | DPC01 |
Terminal Type | Screw |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | +60°C |
Minimum Frequency Sensed | 50Hz |
Minimum Voltage Sensed | 510V ac |
Length | 99.5mm |
Maximum Frequency Sensed | 400Hz |
Height | 80mm |
Maximum Voltage Sensed | 793V ac |
Dimensions | 99.5 x 45 x 80mm |
Maximum Operating Temperature | +60°C |
Width | 45mm |
