- RS Stock No.:
- 819-3289
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- K8AK-TH12S 24VAC/DC
- ผู้ผลิต / Manufacturer:
- Omron
16 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB6,432.21
(exc. VAT)
THB6,882.46
(inc. VAT)
Units | Per unit |
1 + | THB6,432.21 |
- RS Stock No.:
- 819-3289
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- K8AK-TH12S 24VAC/DC
- ผู้ผลิต / Manufacturer:
- Omron
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

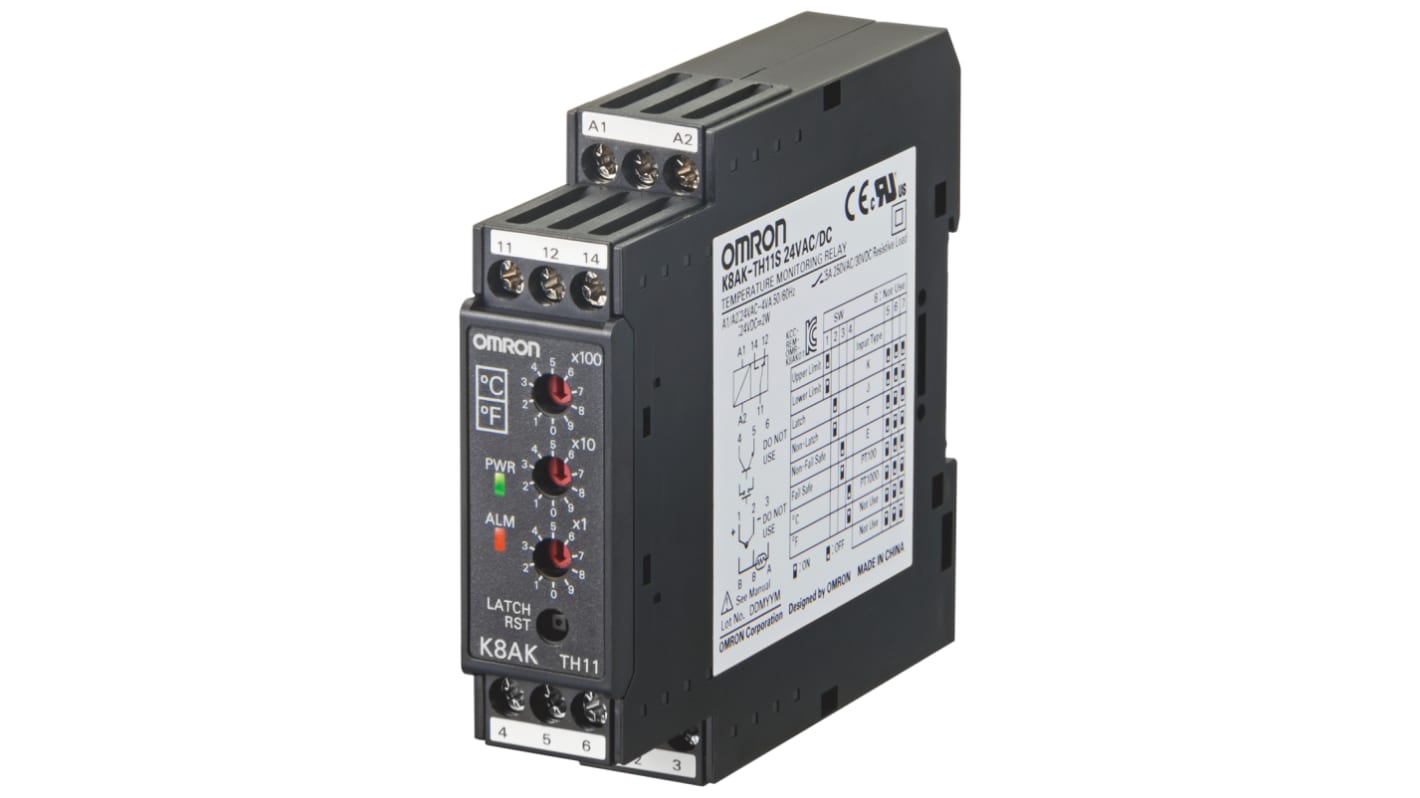

Omron K8AK-TH Monitoring Relays
The Omron K8AK series monitoring relays are expertly designed for accurate and reliable monitoring for industrial facilities and equipment.The K8AK-TH relays are compact and slim, suitable for temperature alarms and monitoring. The relays' intelligent design ensures abnormal temperatures can be monitored and prevented. The relay also comes with alarm status identification LED indicator and self-holding output.
K8AH-TH12S Monitoring Relay.
Prevents and monitors large and abnormal temperature rises.
Slim design only 22.5 mm wide.
Rotary switches makes temperature switching easy.
Universal input for thermocouple
Can be normally closed or normally open. NC/NO.
LED indicator alarm status / Output is retained when the alarm is off.
Self-holding output.
Slim design only 22.5 mm wide.
Rotary switches makes temperature switching easy.
Universal input for thermocouple
Can be normally closed or normally open. NC/NO.
LED indicator alarm status / Output is retained when the alarm is off.
Self-holding output.
K8AK-TH12S 24VAC/CD Model.
Monitoring Relay
Thermocouple
Temperature input
1 Relay
Setting Unit 10°C/°F
Power supply 24 V ac/dc
Thermocouple
Temperature input
1 Relay
Setting Unit 10°C/°F
Power supply 24 V ac/dc
Features and Benefits.
Power 2 W max (24 V dc), 4 VA max (24 V ac)
Sensor input Thermocouple – K, J, T, E, B, R, S, PLII
1 x SPDT relay (5 A at 250 V ac resistive load)
Rotary switch setting (3 switches)
Green LED Power (PWR)
Red LED Relay output (ALM)
DIN Rail Mounted
Weight 160 g
Case material PC and ABS, UL 94 V-0
Colour N1.5
Protection IP20
Sensor input Thermocouple – K, J, T, E, B, R, S, PLII
1 x SPDT relay (5 A at 250 V ac resistive load)
Rotary switch setting (3 switches)
Green LED Power (PWR)
Red LED Relay output (ALM)
DIN Rail Mounted
Weight 160 g
Case material PC and ABS, UL 94 V-0
Colour N1.5
Protection IP20
What is a Monitoring / Measuring Relay?
A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds.
Types of Monitoring Relays Available?
Motor protection relays
Temperature monitoring relays
Water level control relays
Voltage
Current
Temperature monitoring relays
Water level control relays
Voltage
Current
Standards
UL 61010-1, EN 61326-1, IP 20
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Monitoring Application | Temperature |
Contact Configuration | SPDT |
Mounting Type | DIN Rail |
Time Delay | 100ms |
Temperature Sensitivity | Overtemperature |
Temperature Sensing Range | 0 → 1800°C |
Series | K8AK-TH |
Minimum Operating Temperature | -20°C |
Width | 22.5mm |
Maximum Operating Temperature | +55°C |
Terminal Type | Screw |
Maximum Temperature Sensed | +1800°C |
Dimensions | 100 x 22.5 x 90mm |
Length | 100mm |
Height | 90mm |
Operating Temperature Range | +55°C |
Minimum Temperature Sensed | 0°C |
