Dold Frequency Monitoring Relay, SPDT, DIN Rail
- RS Stock No.:
- 656-6253
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IK9143.11 AC50/60Hz 230V Hyst.0.5-10%
- ผู้ผลิต / Manufacturer:
- Dold
1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB6,898.17
(exc. VAT)
THB7,381.04
(inc. VAT)
| Units | Per unit |
| 1 + | THB6,898.17 |
- RS Stock No.:
- 656-6253
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IK9143.11 AC50/60Hz 230V Hyst.0.5-10%
- ผู้ผลิต / Manufacturer:
- Dold
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
รายละเอียดสินค้า / Product Details

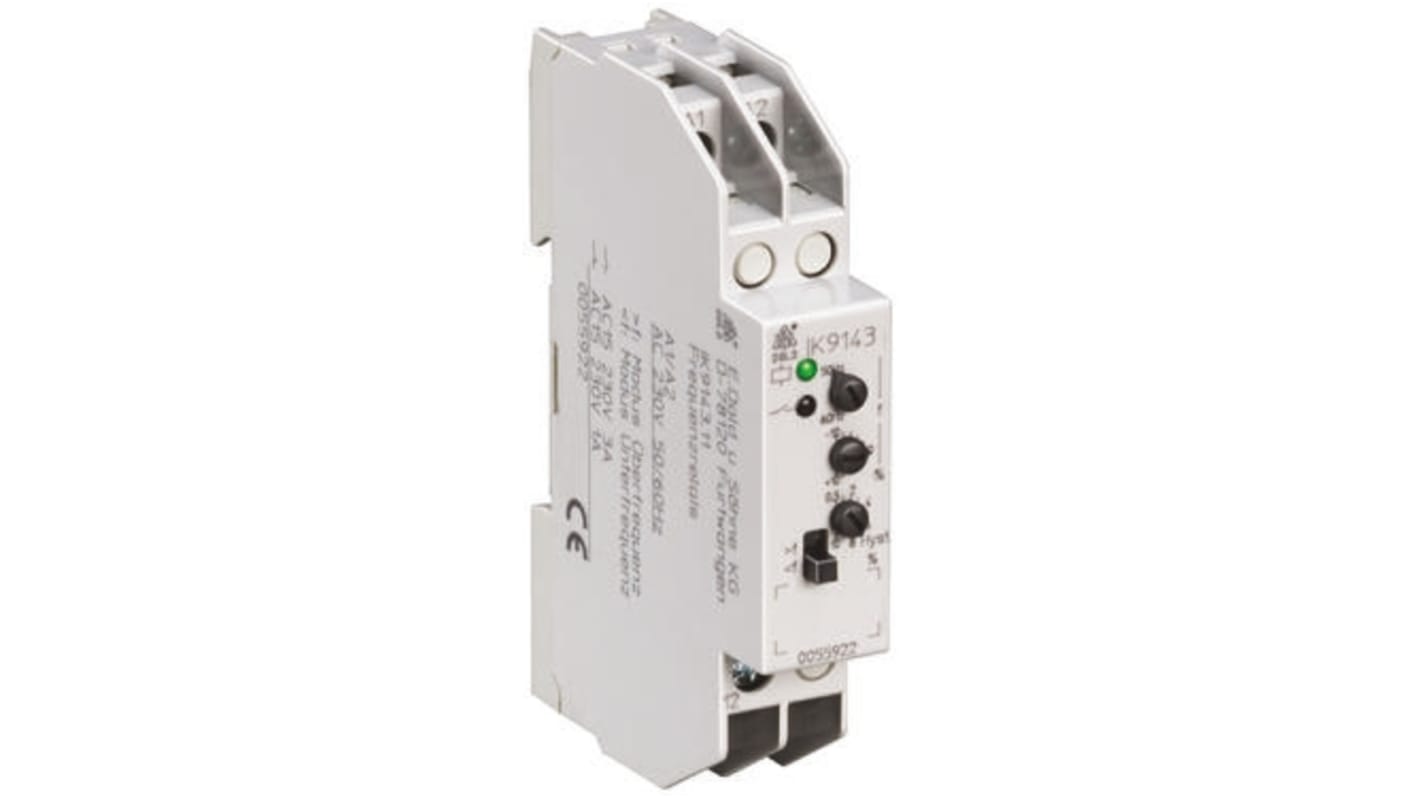

IK9143 - Frequency relay
Detection of under/over frequency in alternating voltage networks; switchable
No auxiliary voltage
Switchable frequency range for 50 or 60 Hz networks
Adjustable response value
Adjustable hysteresis
Rest current principle
LED status display
Overall width 17.5 mm
No auxiliary voltage
Switchable frequency range for 50 or 60 Hz networks
Adjustable response value
Adjustable hysteresis
Rest current principle
LED status display
Overall width 17.5 mm
Standards
IEC/EN 60255, DIN VDE 0435-303
Approvals
CE
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Monitoring Application | Frequency |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Frequency Sensing Range | Maximum of 60Hz |
| Series | IK 9143 |
| Operating Temperature Range | +60°C |
| Length | 58mm |
| Dimensions | 58 x 17.5 x 90mm |
| Maximum Operating Temperature | +60°C |
| Width | 17.5mm |
| Minimum Operating Temperature | -20°C |
| Frequency Sensitivity | Overfrequency, Underfrequency |
| Height | 90mm |
| Maximum Frequency Sensed | 60Hz |
