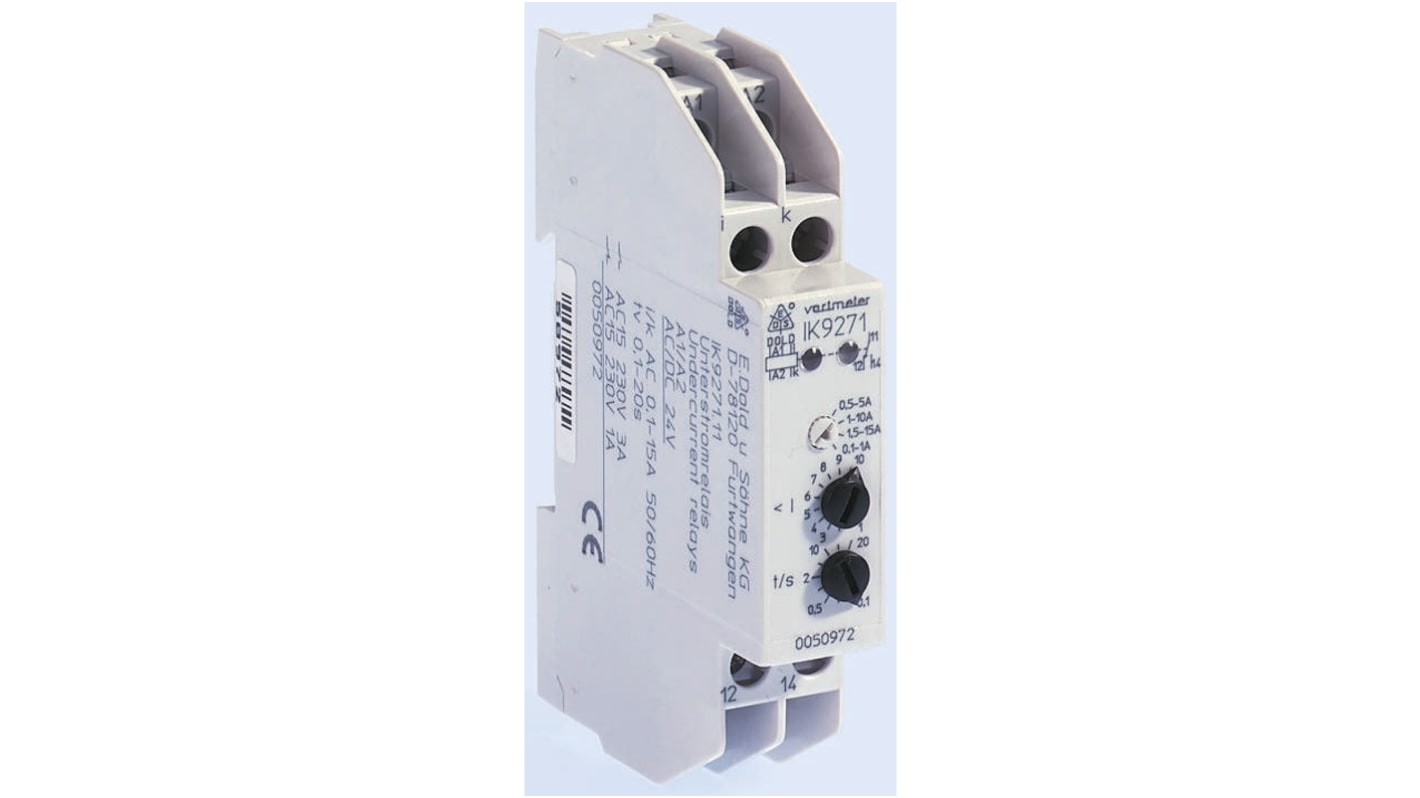

Dold Current Monitoring Relay With SPDT Contacts, 1 Phase, 220 → 240 V ac

  • RS Stock No. 358-6901
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. IK9271.11 AC220-240V 0.1-15A Tv=0.1-20S
  • ผู้ผลิต / Manufacturer Dold
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
รายละเอียดสินค้า / Product Details

Undercurrent relay, single phase, IK9271

Application: 1-phase undercurrent monitoring in three-phase and alternating current networks
4 measurement ranges from 0.1 → 15 A without an additional current transducer (programmable via rotary control)
Fixed hysteresis
Adjustable switching delay
Rest current principle
LED displays: applied voltage, activated output relay
Auxiliary voltage 230 Vac
Auxiliary circuit and measuring circuit galvanically isolated
In accordance with IEC 255, VDE 0435 Section 303

คุณสมบัติ / Specifications
คุณสมบัติ Value
Monitoring Application Current
Supply Voltage 220 → 240 V ac
Contact Configuration SPDT
Electrical Phase 1
Current Sensitivity Undercurrent
Minimum Current Sensed 0.1A
Maximum Current Sensed 15A
Time Delay 0.1 → 20 s
Height 90mm
Operating Temperature Range -20 → +60 °C
Width 17.5mm
Length 61mm
Current Range 0.1 → 1 A, 0.5 → 5 A, 1 → 10 A, 1.5 → 15 A
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Dimensions 61 x 17.5 x 90 mm
3 ภายใน (Within) 4-6 วันทำการ (สต๊อกทั่วโลก) (working days (Global stock))
7 ภายใน (Within) 4-6 วันทำการ (สต๊อกทั่วโลก) (working days (Global stock))
ราคา / Price Each
คือ THB6,197.61
THB 5,835.09
(exc. VAT)
THB 6,243.55
(inc. VAT)
Units
Per unit
1 +
THB5,835.09
