- RS Stock No.:
- 240-9027
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IL9075.12/001 AC50-400Hz 400V
- ผู้ผลิต / Manufacturer:
- Dold
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 22/05/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB8,405.06
(exc. VAT)
THB8,993.41
(inc. VAT)
Units | Per unit |
1 + | THB8,405.06 |
- RS Stock No.:
- 240-9027
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IL9075.12/001 AC50-400Hz 400V
- ผู้ผลิต / Manufacturer:
- Dold
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details

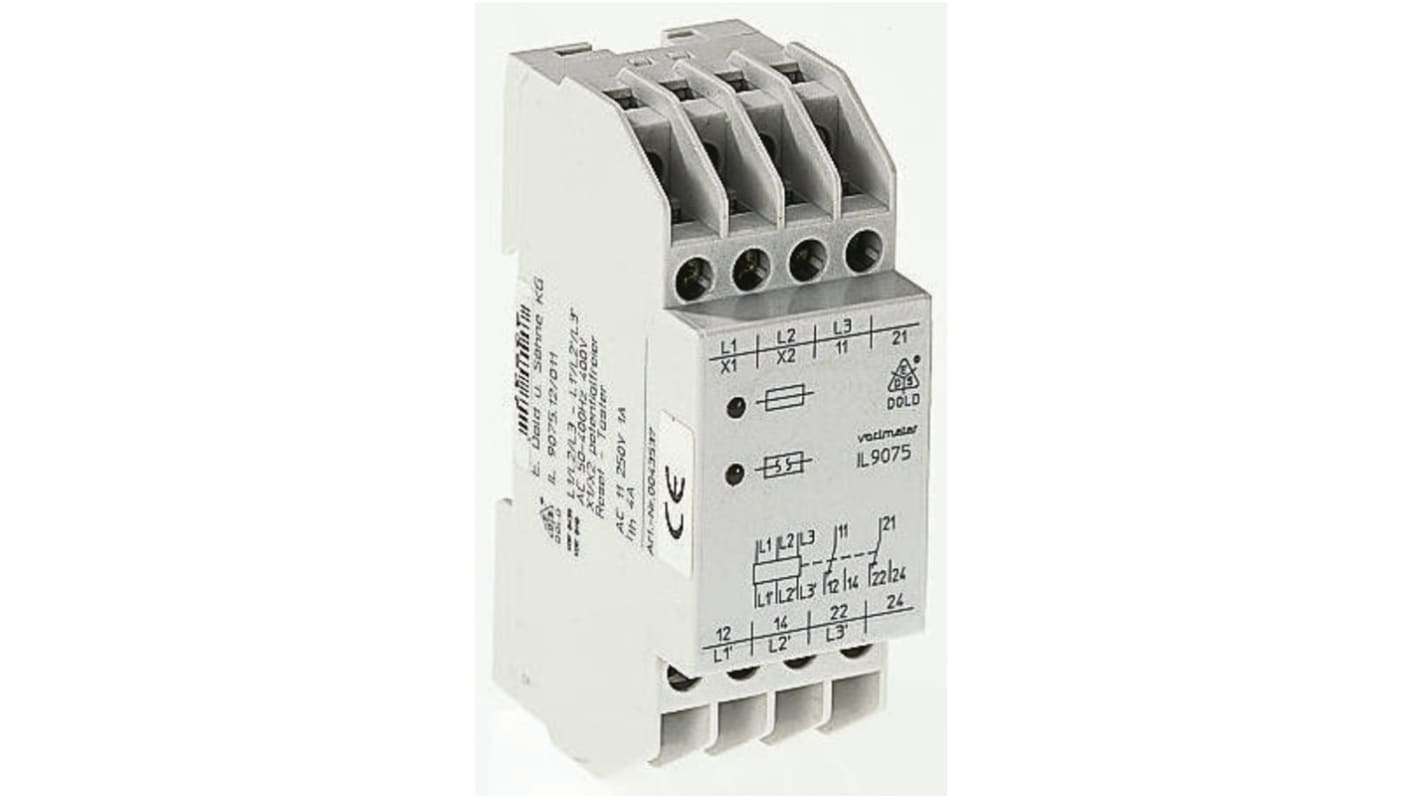

Fuse monitor, IL9075/001
Recognises fuse failures in three-phase networks up to 440 V
Failure notification even with loads switched off
Usable for all types and sizes of fuses
Independent of rotational direction
No abnormal behaviour even in asymmetrical networks with harmonics, or with regenerative motors
Shorter response time than motor protection circuit breakers
Internal resistance >1 MΩ
Rest current principle
2 LED displays
2 changeovers
35 mm overall width
Failure notification even with loads switched off
Usable for all types and sizes of fuses
Independent of rotational direction
No abnormal behaviour even in asymmetrical networks with harmonics, or with regenerative motors
Shorter response time than motor protection circuit breakers
Internal resistance >1 MΩ
Rest current principle
2 LED displays
2 changeovers
35 mm overall width
The IL9075/001 monitors all three fuses in the three-phase network to produce, for example, an automatic shutoff and switch lock of a three-phase motor if one or more of the phase fuses fails (in accordance with IEG 55, VDE 0435).
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Monitoring Application | Phase |
Electrical Phase | 3 |
Contact Configuration | DPDT |
Mounting Type | DIN Rail |
Time Delay | <50ms |
Frequency Sensing Range | 50 → 400Hz |
Series | IL 9075 |
Length | 59mm |
Operating Temperature Range | +60°C |
Height | 90mm |
Dimensions | 59 x 35 x 90mm |
Maximum Operating Temperature | +60°C |
Width | 35mm |
Minimum Operating Temperature | -20°C |
