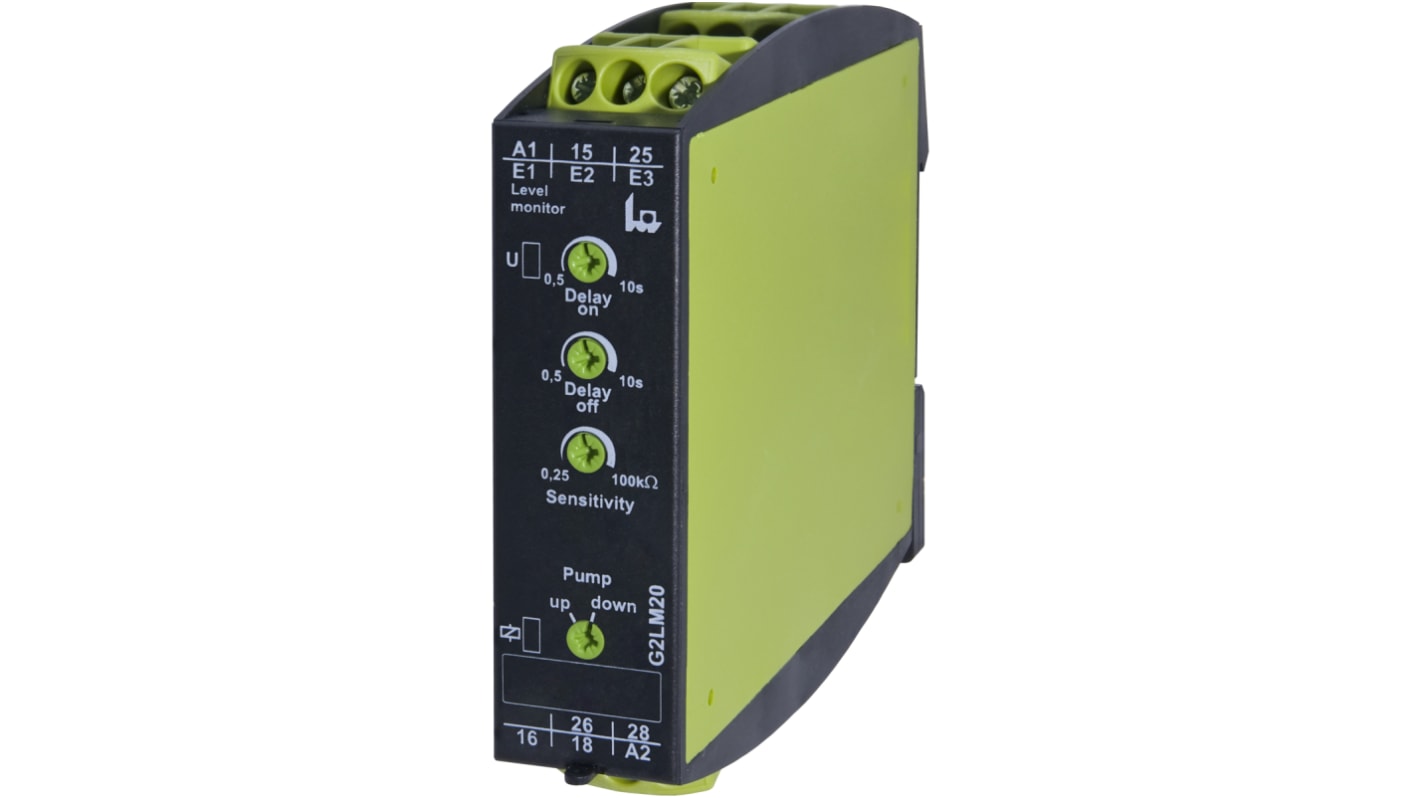

Tele Level Monitoring Relay, 1 Phase, DPDT, DIN Rail
- RS Stock No.:
- 123-9745
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- G2LM20 230VAC
- ผู้ผลิต / Manufacturer:
- Tele
4 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB5,855.37
(exc. VAT)
THB6,265.25
(inc. VAT)
| Units | Per unit |
| 1 + | THB5,855.37 |
- RS Stock No.:
- 123-9745
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- G2LM20 230VAC
- ผู้ผลิต / Manufacturer:
- Tele
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- AT
รายละเอียดสินค้า / Product Details
GAMMA Series Level Monitoring Relay
TELE GAMMA series level control monitoring relay for conductive liquids. Featuring pump up and pump down monitoring and a single change over contact. The GAMMA series have a self-extinguishing plastic body with an IP rating of IP40.
DIN Rail mount
LED indicator
Screw terminals
Multifunction
Secure isolation of the measuring circuit
2 change over contact
17.5 mm width
LED indicator
Screw terminals
Multifunction
Secure isolation of the measuring circuit
2 change over contact
17.5 mm width
Telecontrol GAMMA Monitoring Relays
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Monitoring Application | Level |
| Electrical Phase | 1 |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Time Delay | 0.5 → 10s |
| Series | GAMMA |
| Number of Poles | 2 |
| Operating Temperature Range | +55°C |
| Dimensions | 108 x 22.5 x 90mm |
| Length | 108mm |
| Maximum Operating Temperature | +55°C |
| Width | 22.5mm |
| Height | 90mm |
| Minimum Operating Temperature | -25°C |
| Terminal Type | Screw |
