Schneider Electric Frequency Monitoring Relay With DPDT Contacts, 120 → 277 V ac

  • RS Stock No. 146-193
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. RM35HZ21FM
  • ผู้ผลิต / Manufacturer Schneider Electric
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
รายละเอียดสินค้า / Product Details

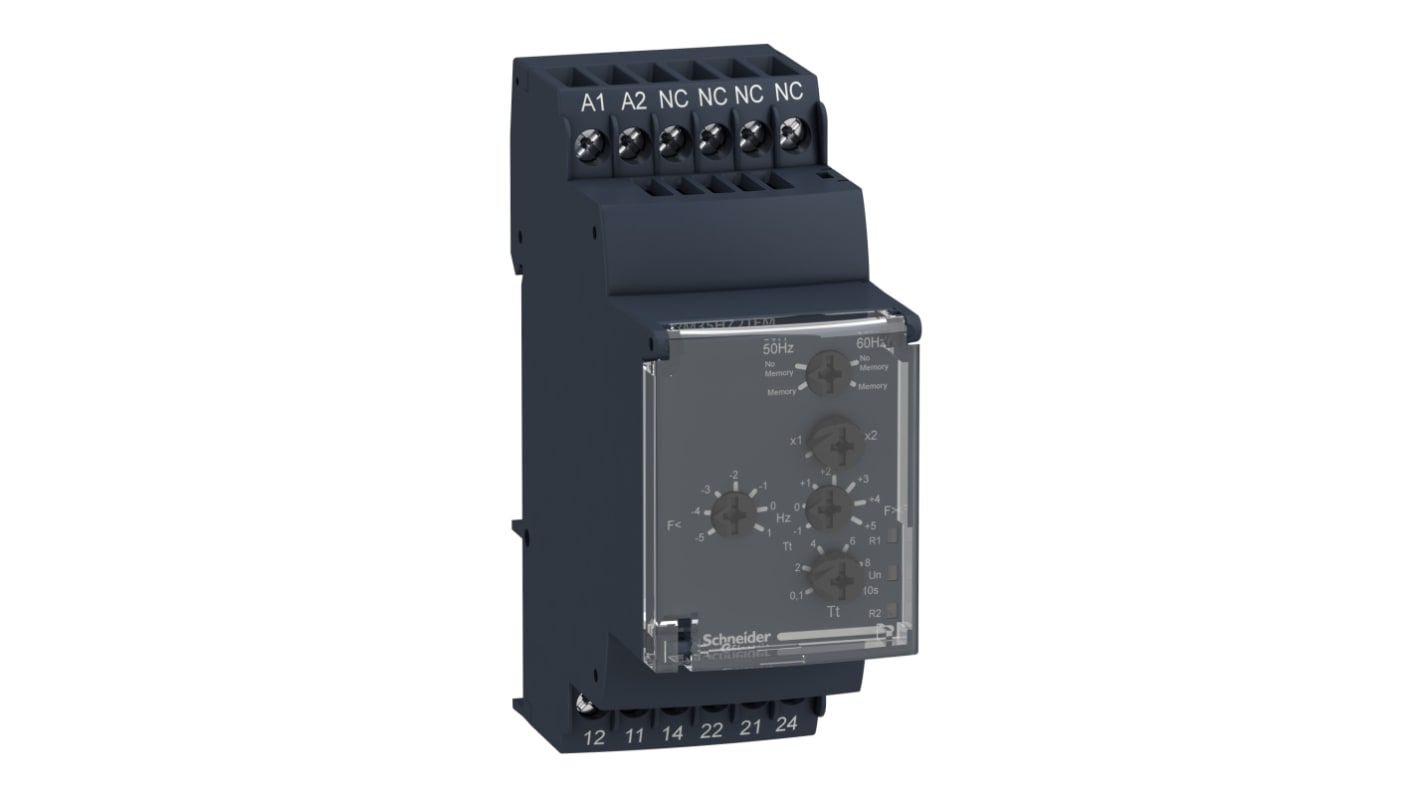

RM35 HZ frequency control relay

Schneider Electric RM35 HZ frequency control relays monitor the frequency variation of 50 or 60 Hz alternating signals. Detection of under and over-frequency with two independent relay outputs.

Selectable memory function
2 C/O output
Clear hinged front cover
LED display of output status
DIN Rail mounting

Standards

NF EN 60255-6 and IEC 60255-6

Approvals

UL, CSA, GL, C-Tick, GOST

Approvals

UL, CSA, GL, C-Tick, GOST

Standards

NF EN 60255-6 and IEC 60255-6

Schneider Electric Voltage, Current, Phase & Motor Protection

คุณสมบัติ / Specifications
คุณสมบัติ Value
Monitoring Application Frequency
Supply Voltage 120 → 277 V ac
Contact Configuration DPDT
Time Delay 0.1 → 10 s
Frequency Sensing Range 40 → 70 Hz
Frequency Sensitivity Overfrequency, Underfrequency
Length 72mm
Minimum Frequency Sensed 40Hz
Width 35mm
Maximum Frequency Sensed 70Hz
Minimum Operating Temperature -20°C
Dimensions 72 x 35 x 90 mm
Height 90mm
Operating Temperature Range -20 → +50 °C
Maximum Operating Temperature +50°C
2 ภายใน (Within) 5 - 8 วันทำการ (สต๊อกทั่วโลก) (working days (Global stock))
2 ภายใน (Within) 5 - 8 วันทำการ (สต๊อกทั่วโลก) (working days (Global stock))
ราคา / Price Each
THB 7,142.55
(exc. VAT)
THB 7,642.53
(inc. VAT)
Units
Per unit
1 - 4
THB7,142.55
5 - 9
THB7,000.92
10 +
THB6,928.71
