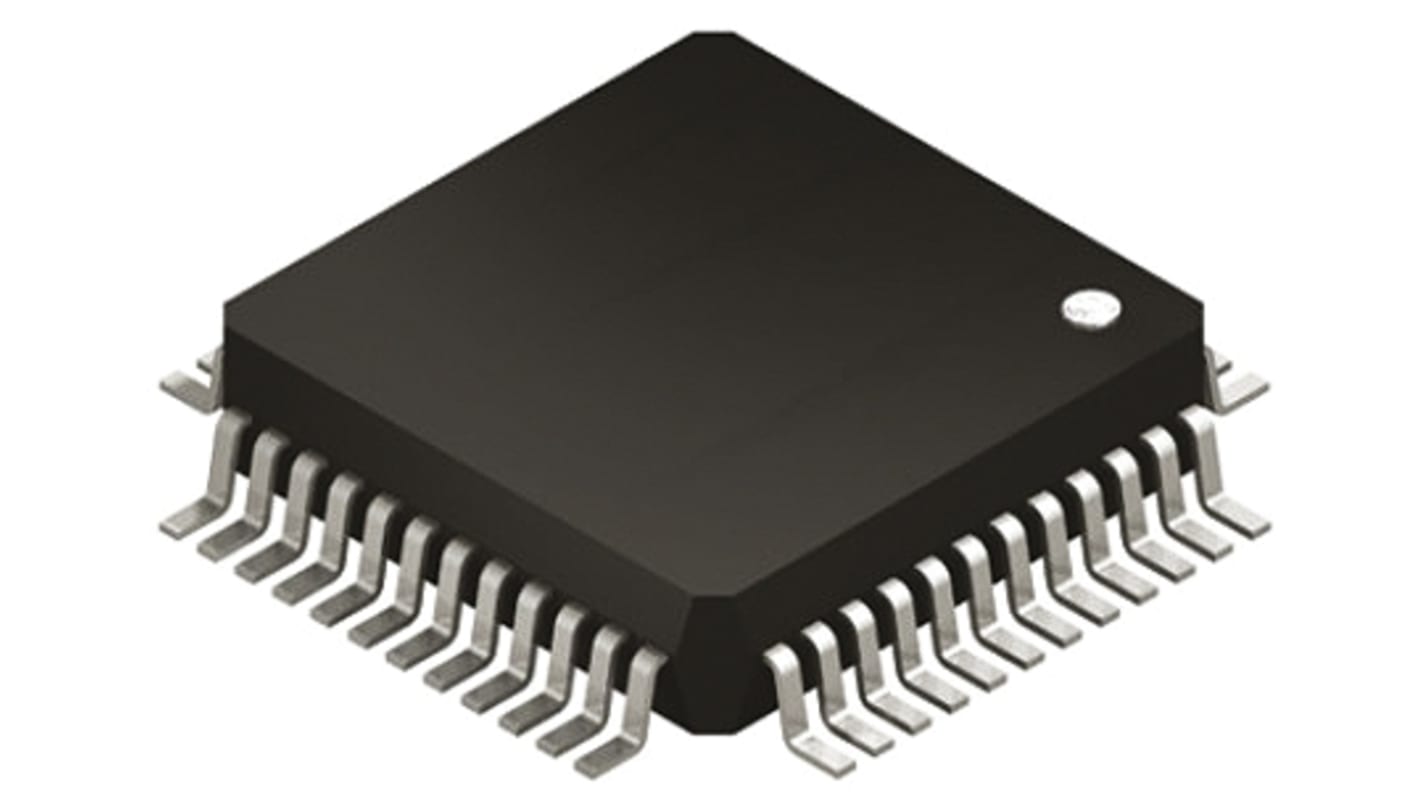

STMicroelectronics STM32F100C4T7B, 32bit ARM Cortex M3 Microcontroller, STM32F1, 24MHz, 16 kB Flash, 48-Pin LQFP
- RS Stock No.:
- 810-7367
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32F100C4T7B
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 15/11/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 5)
THB167.64
(exc. VAT)
THB179.37
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 60 | THB167.64 | THB838.20 |
65 - 120 | THB163.446 | THB817.23 |
125 + | THB160.932 | THB804.66 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 810-7367
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32F100C4T7B
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
STM32F100 Value Line Series Microcontrollers, STMicroelectronics
The STM32F100 Value line is based on the ARM Cortex™ M3 MCU incorporating 24 MHz CPU with motor control and CEC functions. The STM32 family ARM Cortex-M3 32 bit Flash microcontrollers product range operates low power, low voltage and combine high performance with real time capabilities. They are pin to pin and software compatible.
STMicroelectronics Advanced ARM 32-bit processor low and medium density value line with up to 512 KB Flash, timers, ADC, DAC and comm interface also available in different packages. STs STM32F100 microcontroller family is suitable in a wide area such as application control and user interfaces; medical and handheld equipment; PC and gaming peripherals; GPS platforms and industrial applications.
STMicroelectronics Advanced ARM 32-bit processor low and medium density value line with up to 512 KB Flash, timers, ADC, DAC and comm interface also available in different packages. STs STM32F100 microcontroller family is suitable in a wide area such as application control and user interfaces; medical and handheld equipment; PC and gaming peripherals; GPS platforms and industrial applications.
32 bit RISC; up to 512 KB Flash; up to 32 KB SRAM
Commercial & Industrial Temperatures
Low voltage: 2 V to 3.6 V
Commercial & Industrial Temperatures
Low voltage: 2 V to 3.6 V
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
STM32F1 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics
The STM32 family of 32-bit Flash Microcontrollers is based on the breakthrough ARM Cortex™-M3 core - a core specifically developed for embedded applications. The STM32 family benefits from the Cortex™-M3 architectural enhancements including the Thumb-2 instruction set to deliver improved performance with better code density, significantly faster response to interrupts, all combined with industry leading power consumption.
Benefits
Excellent real-time behaviour
Oustanding power efficiency
Superior and innovative peripherals
Maximum integration
Cross family pin-to-pin, peripheral and software compatibility
Excellent real-time behaviour
Oustanding power efficiency
Superior and innovative peripherals
Maximum integration
Cross family pin-to-pin, peripheral and software compatibility
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | STM32F1 |
Package Type | LQFP |
Mounting Type | Surface Mount |
Pin Count | 48 |
Device Core | ARM Cortex M3 |
Data Bus Width | 32bit |
Program Memory Size | 16 kB |
Maximum Frequency | 24MHz |
RAM Size | 4 kB |
USB Channels | 0 |
Number of PWM Units | 1 x 16 bit |
Number of SPI Channels | 1 |
Number of UART Channels | 0 |
Number of I2C Channels | 1 |
Number of USART Channels | 2 |
Typical Operating Supply Voltage | 2 → 3.6 V |
Number of CAN Channels | 0 |
Maximum Operating Temperature | +105 °C |
Minimum Operating Temperature | -40 °C |
Number of ADC Units | 1 |
Maximum Number of Ethernet Channels | 0 |
Instruction Set Architecture | ARM |
Number of Ethernet Channels | 0 |
Program Memory Type | Flash |
Pulse Width Modulation | 1 (6 x 16 bit) |
Dimensions | 7.2 x 7.2 x 1.45mm |
Width | 7.2mm |
Number of LIN Channels | 1 |
Height | 1.45mm |
ADCs | 10 x 12 bit |
Length | 7.2mm |
Number of PCI Channels | 0 |
