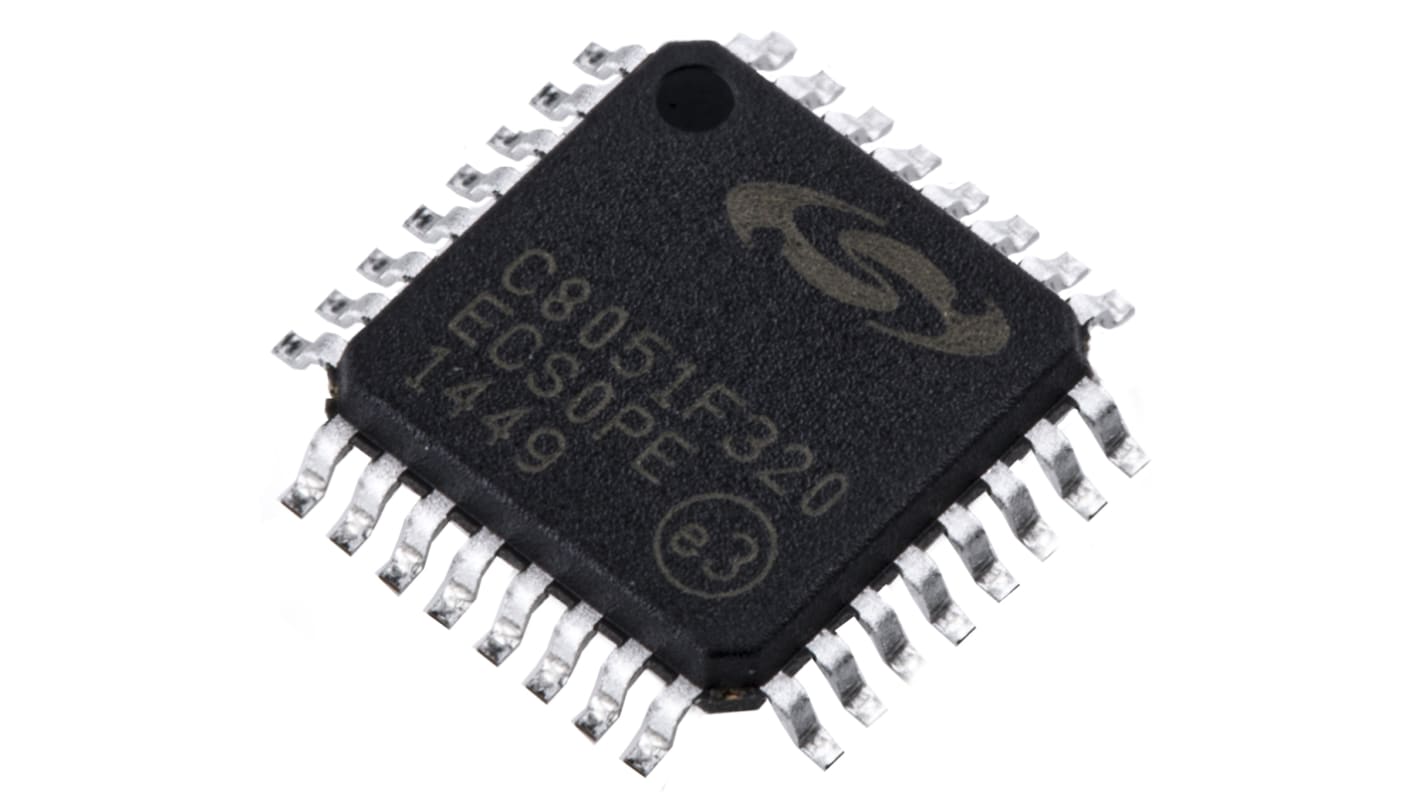

Silicon Labs C8051F320-GQ, 8bit 8051 Microcontroller, 25MHz, 16 kB Flash, 32-Pin LQFP

  • RS Stock No. 526-8857
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. C8051F320-GQ
  • ผู้ผลิต / Manufacturer Silicon Labs
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

C8051F32x/34x Microcontollers with USB, Silicon Labs

The Silicon Labs C8051F32x/34x families of microcontrollers (MCU) are embedded with full-speed USB 2.0, simplifying the implemention of USB into your design. Their USBXpress software enables a complete host and device side solution. No external resistors, crystal, voltage regulator, EEPROM or other components are required.

This family of microcontrollers includes a high-speed 8051 CPU with between 16 kB and 64 kB Flash. Together with UARTs, SMBus, SPI, timers, counters, PWM generators, multi-channel 10-bit ADC, voltage reference, internal oscillator, comparators and temperature sensor.

They are specified for 2.7 V to 3.6 V operation over the industrial temperature range (-45°C to +85°C). Available in 28-pin QFN, 32-pin LQFP or 48-pin TQFP packages.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name C8051F
Package Type LQFP
Mounting Type Surface Mount
Pin Count 32
Device Core 8051
Data Bus Width 8bit
Program Memory Size 16 kB
Maximum Frequency 25MHz
RAM Size 2.304 kB
USB Channels 1 x Device
Number of PWM Units 5
ADC Channels 17
Number of SPI Channels 1
Typical Operating Supply Voltage 2.7 → 3.6 V
Number of I2C Channels 1
Number of Timers 4
Number of UART Channels 1
Maximum Operating Temperature +85 °C
Program Memory Type Flash
Number of ADC Units 1
Timers 4 x 16 bit
Instruction Set Architecture CISC
ADC Resolution 10bit
Width 7mm
Dimensions 7 x 7 x 1.4mm
ADCs 17 x 10 bit
Length 7mm
Timer Resolution 16bit
Height 1.4mm
Minimum Operating Temperature -40 °C
Pulse Width Modulation 5(PWM/CCA)
61 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
คือ THB278.79
THB 200.29
(exc. VAT)
THB 214.31
(inc. VAT)
Units
Per unit
1 - 9
THB200.29
10 - 49
THB198.44
50 - 99
THB195.84
100 - 249
THB193.33
250 +
THB190.88
