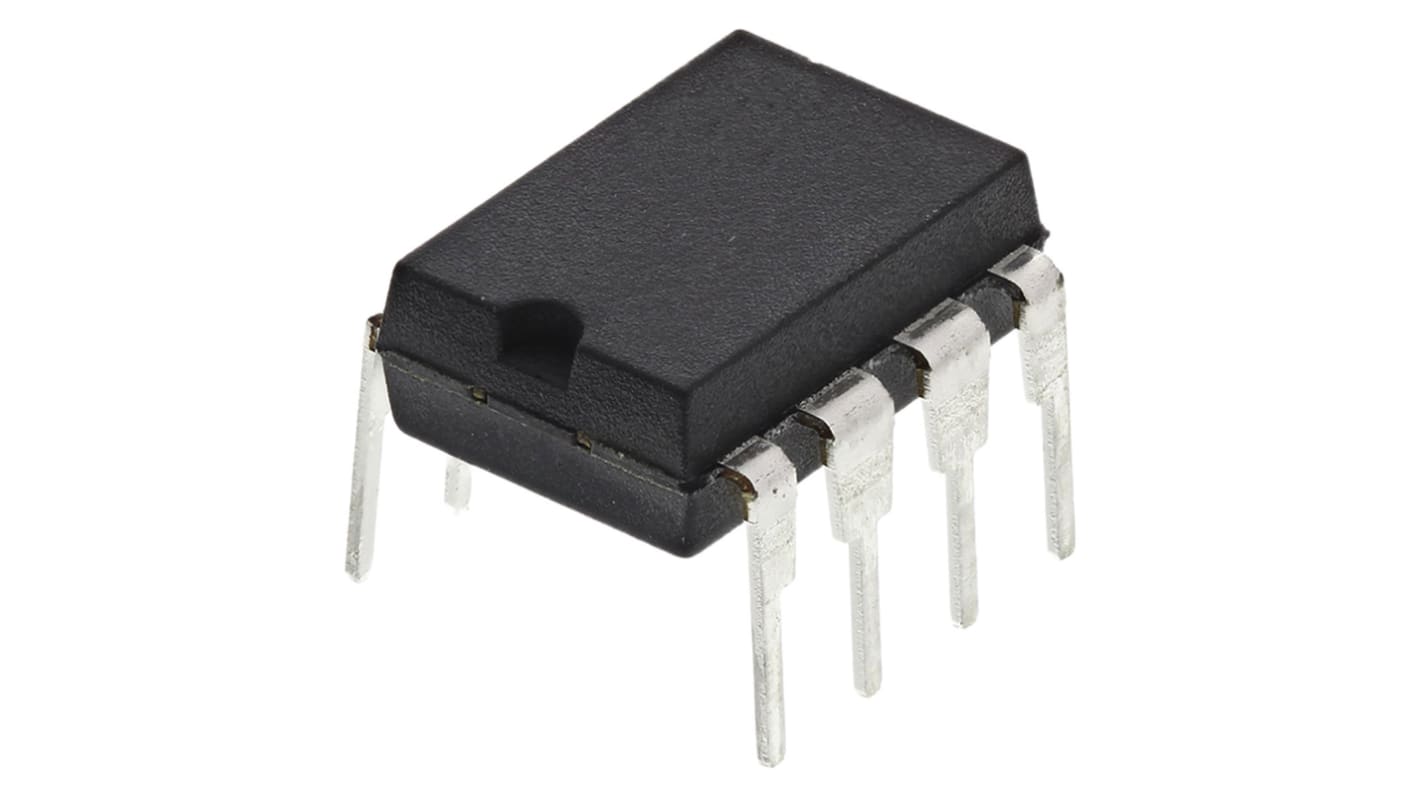

Microchip PIC12C508-04/P, 8bit PIC Microcontroller, PIC12C, 4MHz, 512 EPROM, 8-Pin PDIP
- RS Stock No.:
- 234-0300
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC12C508-04/P
- ผู้ผลิต / Manufacturer:
- Microchip
ผลิตภัณฑ์ที่เลิกผลิตแล้ว
ตัวเลือก
สินค้านี้ไม่มีจำหน่ายในขณะนี้ ลองดูสินค้าอื่นๆ ที่เราแนะนำ
- RS Stock No.:
- 234-0300
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC12C508-04/P
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
PIC12Cxxx 8-Bit Microcontrollers
This powerful (one micro (μ) second instruction execution) yet easy-to-program (only 33 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 8-pin package. 6 I/O pins with 25mA source/sink per I/O, 4 oscillator selections including the internal 4MHz RC oscillator with programmable calibration, and Power-on Reset. All new designs should consider using PIC12F variants.
Note
Note
May sometimes undergo a rise in internal frequency cycles of 5% at 25°C. This is due to unevenness in the processor
PIC12C Microcontrollers
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | PIC12C |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 8 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 512 x 12 words |
| Maximum Frequency | 4MHz |
| RAM Size | 25 B |
| USB Channels | 0 |
| Number of SPI Channels | 0 |
| Number of UART Channels | 0 |
| Number of USART Channels | 0 |
| Typical Operating Supply Voltage | 3 → 5.5 V |
| Number of I2C Channels | 0 |
| Number of CAN Channels | 0 |
| Width | 6.6mm |
| Instruction Set Architecture | RISC |
| Number of PCI Channels | 0 |
| Maximum Operating Temperature | +70 °C |
| Length | 9.78mm |
| Number of Ethernet Channels | 0 |
| Program Memory Type | EPROM |
| Dimensions | 9.78 x 6.6 x 3.17mm |
| Minimum Operating Temperature | 0 °C |
| Number of LIN Channels | 0 |
| Height | 3.17mm |
