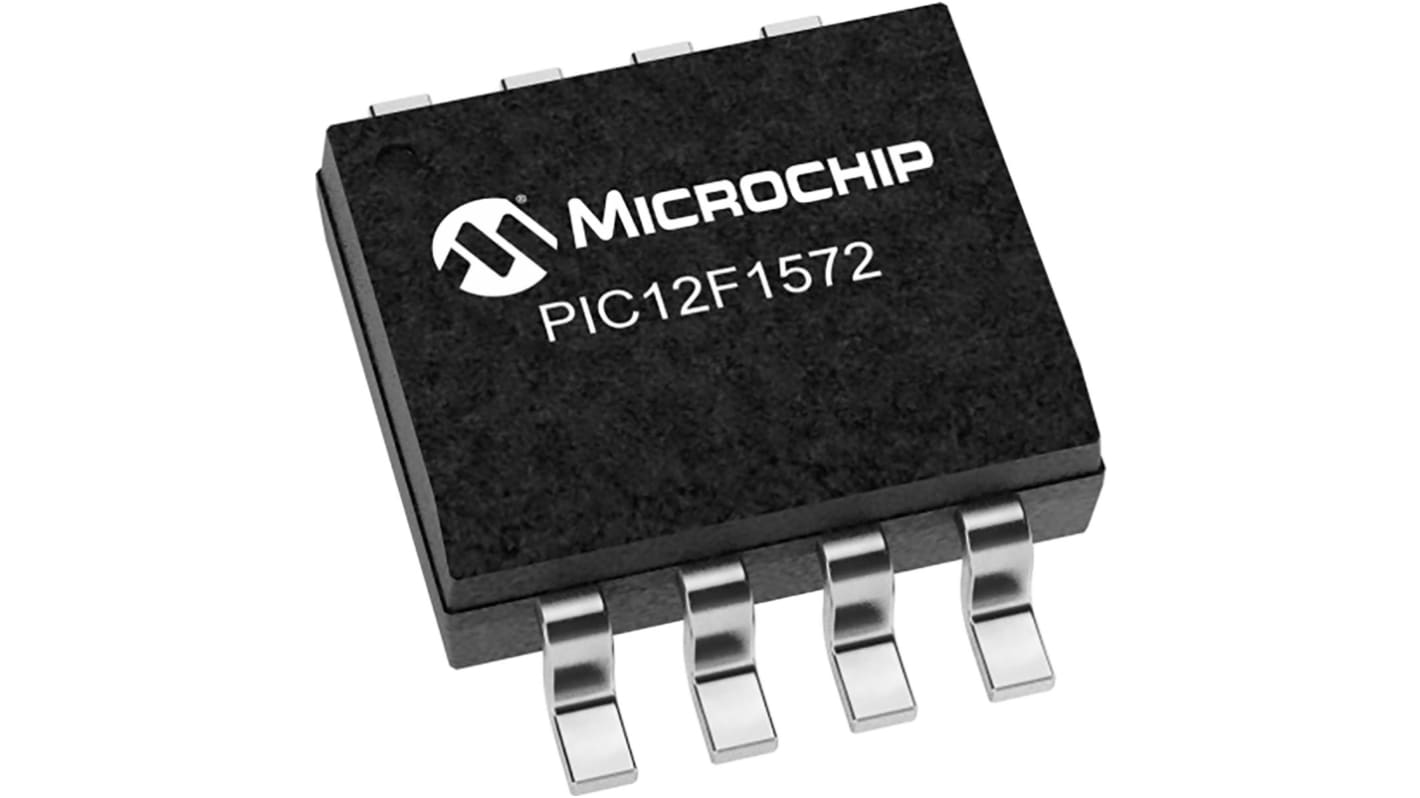

Microchip PIC12F1572T-I/SN, 8bit PIC Microcontroller, PIC12F, 20MHz, 8 kB Flash, 8-Pin SOIC
- RS Stock No.:
- 199-5386
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC12F1572T-I/SN
- ผู้ผลิต / Manufacturer:
- Microchip
9720 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 10)
THB30.743
(exc. VAT)
THB32.895
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 820 | THB30.743 | THB307.43 |
| 830 - 1640 | THB29.974 | THB299.74 |
| 1650 + | THB29.512 | THB295.12 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 199-5386
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC12F1572T-I/SN
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
2
The Microchip combine the capabilities of 16-bit PWMs with analogy to suit a variety of applications these devices deliver three 16-bit PWMs with independent timers for applications where high resolution is needed such as LED lighting, stepper motors, power supplies and other general purpose applications.
Two 8-bit timers
One 16-bit timer
Power on reset (POR)
Power up timer (PWRT)
Low power brown-out reset (LPBOR)
Programmable watchdog timer (WDT) up to 256s
Programmable code protection
One 16-bit timer
Power on reset (POR)
Power up timer (PWRT)
Low power brown-out reset (LPBOR)
Programmable watchdog timer (WDT) up to 256s
Programmable code protection
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | PIC12F |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 256 B |
| USB Channels | 1 |
| Number of PWM Units | 1 x 16 bit |
| Number of SPI Channels | 0 |
| Number of USART Channels | 1 |
| Number of UART Channels | 0 |
| Typical Operating Supply Voltage | 1.8 V to 5.5 V |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 0 |
| Instruction Set Architecture | RISC |
| Number of PCI Channels | 0 |
| Maximum Number of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 4.9mm |
| ADCs | 4 x 10 bit |
| Height | 1.5mm |
| Number of Ethernet Channels | 0 |
| Width | 3.9mm |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Pulse Width Modulation | 1 (3 x 16 bit) |
| Program Memory Type | Flash |
| Number of LIN Channels | 0 |
