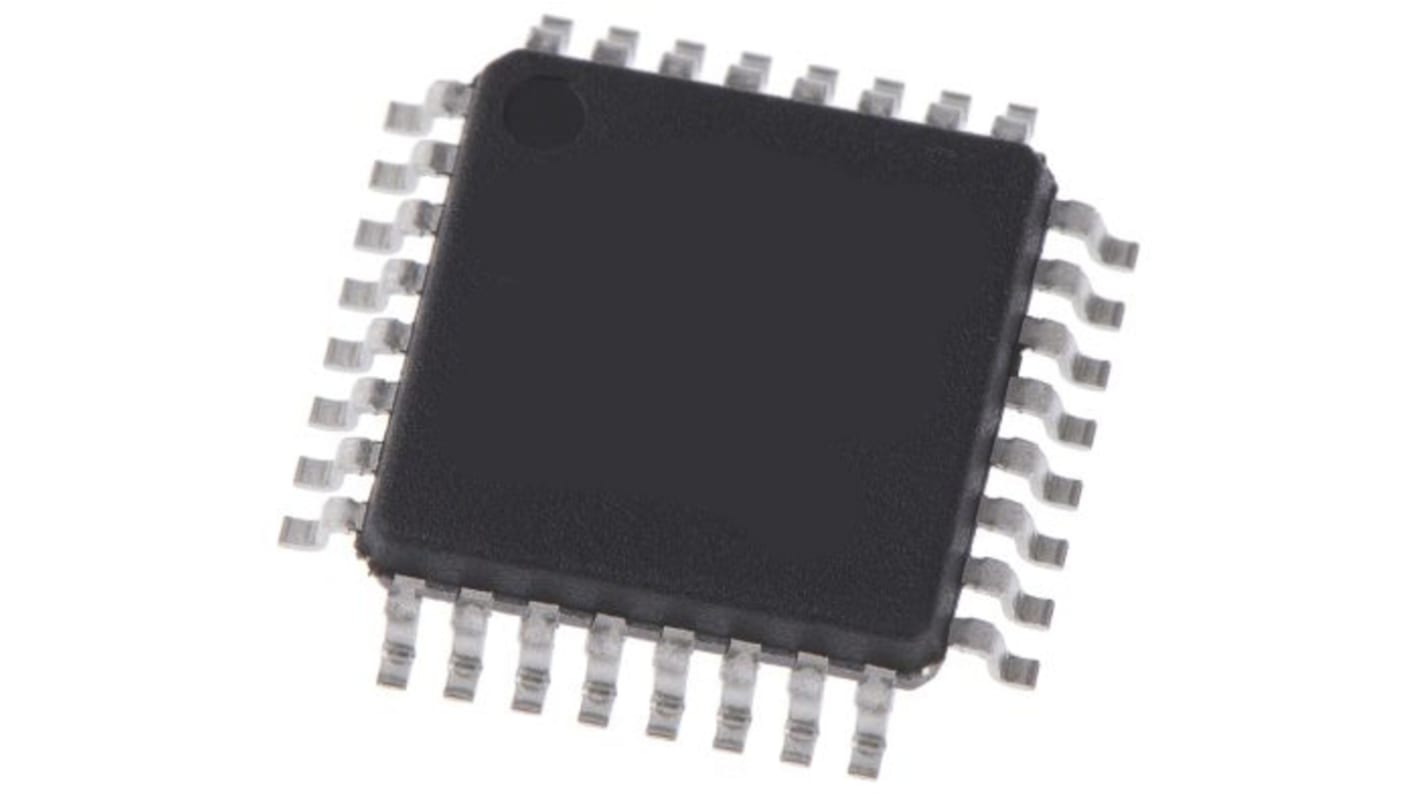

STMicroelectronics STM32L031K6T6, 32bit ARM Cortex M0+ Microcontroller, STM32L0, 32MHz, 32 kB Flash, 32-Pin LQFP
- RS Stock No.:
- 196-2070
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32L031K6T6
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
120 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 5)
THB124.164
(exc. VAT)
THB132.855
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 60 | THB124.164 | THB620.82 |
65 - 120 | THB121.06 | THB605.30 |
125 + | THB119.198 | THB595.99 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 196-2070
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32L031K6T6
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
The access line ultra-low-power STM32L031x4/6 family incorporates the high-performance ARM® Cortex®-M0+ 32-bit RISC core operating at a 32 MHz frequency, high-speed embedded memories (up to 32 Kbytes of Flash program memory, 1 Kbytes of data EEPROM and 8 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals.
The STM32L031x4/6 devices provide high power efficiency for a wide range of performance. It is achieved with a large choice of internal and external clock sources, an internal voltage adaptation and several low-power modes.
The STM32L031x4/6 devices offer several Analogue features, one 12-bit ADC with hardware oversampling, two ultra-low-power comparators, several timers, one low-power timer (LPTIM), three general-purpose 16-bit timers, one RTC and one SysTick which can be used as timebases. They also feature two watchdogs, one watchdog with independent clock and window capability and one window watchdog based on bus clock.
The STM32L031x4/6 devices provide high power efficiency for a wide range of performance. It is achieved with a large choice of internal and external clock sources, an internal voltage adaptation and several low-power modes.
The STM32L031x4/6 devices offer several Analogue features, one 12-bit ADC with hardware oversampling, two ultra-low-power comparators, several timers, one low-power timer (LPTIM), three general-purpose 16-bit timers, one RTC and one SysTick which can be used as timebases. They also feature two watchdogs, one watchdog with independent clock and window capability and one window watchdog based on bus clock.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | STM32L0 |
Package Type | LQFP |
Mounting Type | Surface Mount |
Pin Count | 32 |
Device Core | ARM Cortex M0+ |
Data Bus Width | 32bit |
Program Memory Size | 32 kB |
Maximum Frequency | 32MHz |
RAM Size | 1 kB |
Number of SPI Channels | 2 |
Number of USART Channels | 1 |
Typical Operating Supply Voltage | 1.8 → 3.6 V |
Number of I2C Channels | 1 |
Number of UART Channels | 1 |
Program Memory Type | Flash |
Minimum Operating Temperature | -40 °C |
Height | 1.45mm |
Dimensions | 7.2 x 7.2 x 1.45mm |
Maximum Operating Temperature | +85 °C |
Instruction Set Architecture | RISC |
Length | 7.2mm |
ADCs | 10 x 12 bit |
Width | 7.2mm |
Number of ADC Units | 1 |
