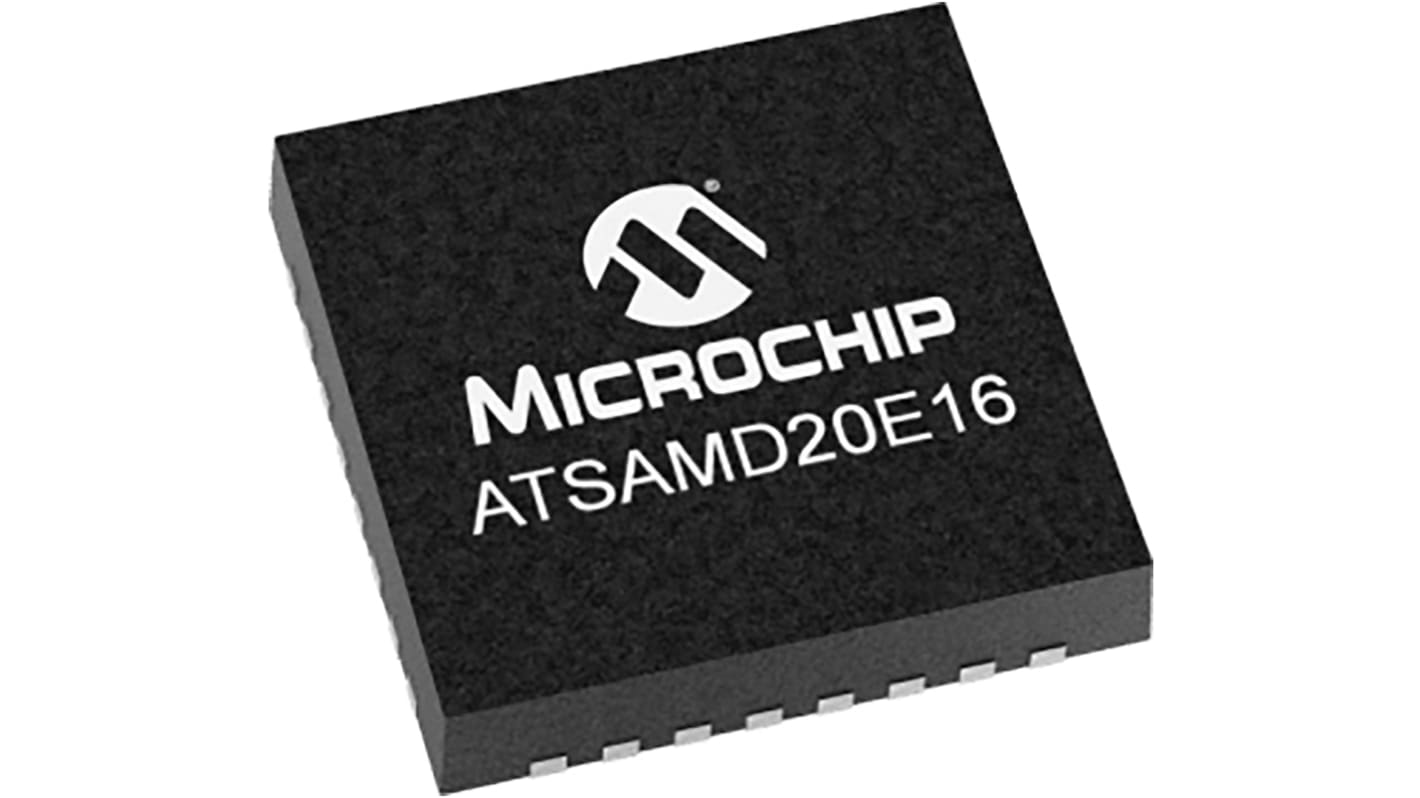

Microchip ATSAMD20E16A-MU, 32bit ARM Cortex M0+ Microcontroller, ATSAMD, 48MHz, 64 kB Flash, 32-Pin QFN
- RS Stock No.:
- 177-3467
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAMD20E16A-MU
- ผู้ผลิต / Manufacturer:
- Microchip
490 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tray of 490)
THB89.944
(exc. VAT)
THB96.24
(inc. VAT)
Units | Per unit | Per Tray* |
490 - 490 | THB89.944 | THB44,072.56 |
980 - 1470 | THB87.965 | THB43,102.85 |
1960 + | THB86.076 | THB42,177.24 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 177-3467
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAMD20E16A-MU
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
A low-power high-performance Microchip's ARM® Cortex®-M0+ based flash microcontroller, the ATSAMD20E16 is ideal for a wide range of home automation consumer metering and industrial applications.
64KB of flash and 8KB of SRAM
Up to 48MHz operating frequency
Four serial communication modules (SERCOM) configurable as UART/USART, SPI or I2C, six 16-bit timer/counters, 32-bit Real Time clock and calendar, 10 PWM channels, one 10-channel 12-bit ADC, one 10-bit DAC
Support for up to 60 touch channels
1.62V to 3.63V power supply
Easy pin migration to SAMD20G and SAMD20J devices
Supported by Atmel Studio, ASF and the SAM D20 Xplained Pro kit
Additional Features
Processor
ARM Cortex-M0+ CPU running at up to 48MHz
Single-cycle hardware multiplier
Memories
64KB in-system self-programmable Flash
8KB SRAM memory
System
Power-on Reset and brown-out detection (BOR)
Internal and external clock options with 48MHdigital frequency locked loop (DFLL48M) and 48MHto 96MHz
fractional digital phase locked loop
Up to 48MHz operating frequency
Four serial communication modules (SERCOM) configurable as UART/USART, SPI or I2C, six 16-bit timer/counters, 32-bit Real Time clock and calendar, 10 PWM channels, one 10-channel 12-bit ADC, one 10-bit DAC
Support for up to 60 touch channels
1.62V to 3.63V power supply
Easy pin migration to SAMD20G and SAMD20J devices
Supported by Atmel Studio, ASF and the SAM D20 Xplained Pro kit
Additional Features
Processor
ARM Cortex-M0+ CPU running at up to 48MHz
Single-cycle hardware multiplier
Memories
64KB in-system self-programmable Flash
8KB SRAM memory
System
Power-on Reset and brown-out detection (BOR)
Internal and external clock options with 48MHdigital frequency locked loop (DFLL48M) and 48MHto 96MHz
fractional digital phase locked loop
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | ATSAMD |
Package Type | QFN |
Mounting Type | Surface Mount |
Pin Count | 32 |
Device Core | ARM Cortex M0+ |
Data Bus Width | 32bit |
Program Memory Size | 64 kB |
Maximum Frequency | 48MHz |
RAM Size | 8 kB |
USB Channels | 0 |
Number of PWM Units | 1 |
Number of SPI Channels | 4 |
Number of UART Channels | 6 |
Number of USART Channels | 6 |
Typical Operating Supply Voltage | 3.3 V |
Number of I2C Channels | 4 |
Number of CAN Channels | 0 |
Maximum Operating Temperature | +85 °C |
Automotive Standard | AEC-Q100 |
Length | 5mm |
ADCs | 10 x 12 bit |
Height | 0.95mm |
Number of LIN Channels | 0 |
Width | 5mm |
Maximum Number of Ethernet Channels | 0 |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | ARM |
Number of ADC Units | 1 |
Pulse Width Modulation | 1 (10 Channel) |
Dimensions | 5 x 5 x 0.95mm |
Program Memory Type | Flash |
Number of PCI Channels | 0 |
Number of Ethernet Channels | 0 |
