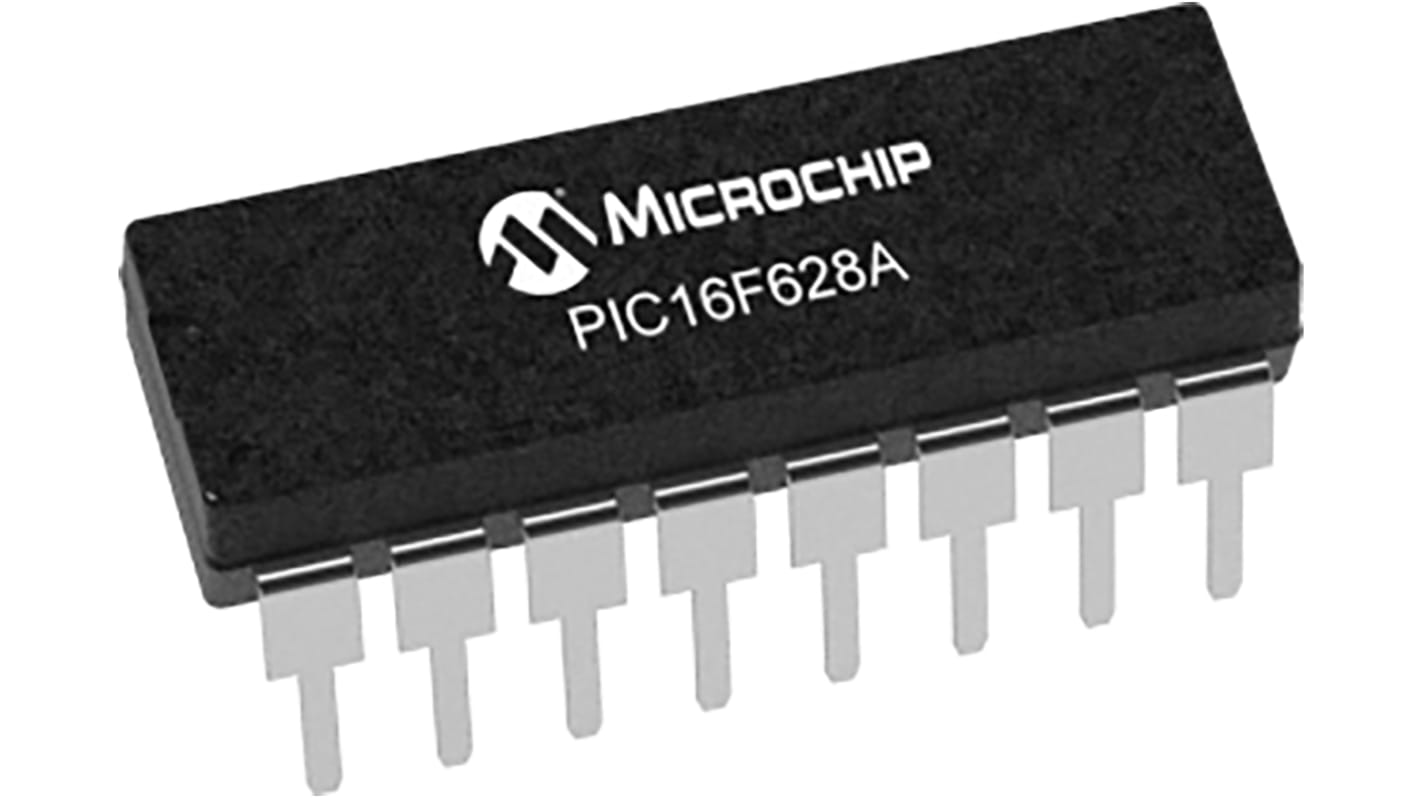

Microchip Technology PIC16F628A-E/P, 8bit PIC Microcontroller, 20MHz, 3.5 kB Flash, 18-Pin PDIP

  • RS Stock No. 177-2654
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PIC16F628A-E/P
  • ผู้ผลิต / Manufacturer Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
รายละเอียดสินค้า / Product Details

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 18-pin package and is upwards compatible with the PIC16F628, PIC16C62XA, PIC16C5X and PIC12CXXX devices. The PIC16F628A features 4MHz internal oscillator, 128 bytes of EEPROM data memory, a capture/compare/PWM, a USART, 2 Comparators and a programmable voltage reference that make it ideal for analog/integrated level applications in automotive, industrial, appliances and consumer applications.

Low voltage programming
Low speed Clock mode
Programmable BOR
4MHz internal oscillator
Programmable VREF
128 bytes of EEPROM
Data Memory
ICD

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name PIC16F
Package Type PDIP
Mounting Type Through Hole
Pin Count 18
Device Core PIC
Data Bus Width 8bit
Program Memory Size 3.5 kB
Maximum Frequency 20MHz
RAM Size 224 B
Number of PWM Units 1
Typical Operating Supply Voltage 5.5 (Maximum) V
Length 23.37mm
Number of UART Channels 1
Number of Timers 2
Program Memory Type Flash
Maximum Operating Temperature +125 °C
Timer Resolution 8 bit, 16 bit
Timers 1 (1 x 16 bit), 1 (2 x 8 bit)
Minimum Operating Temperature -40 °C
Dimensions 0.92 x 0.28 x 0.19in
Width 7.11mm
Number of USART Channels 1
Pulse Width Modulation 1 (1 x 10 bit)
Instruction Set Architecture RISC
Height 4.83mm
PWM Channels 1
PWM Resolution 10bit
30 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each: (In a Pack of 5)
THB 70.87
(exc. VAT)
THB 75.83
(inc. VAT)
Units
Per unit
Per Pack*
5 - 5
THB70.87
THB354.35
10 +
THB70.234
THB351.17
*ตัวบ่งบอกราคา / price indicative
