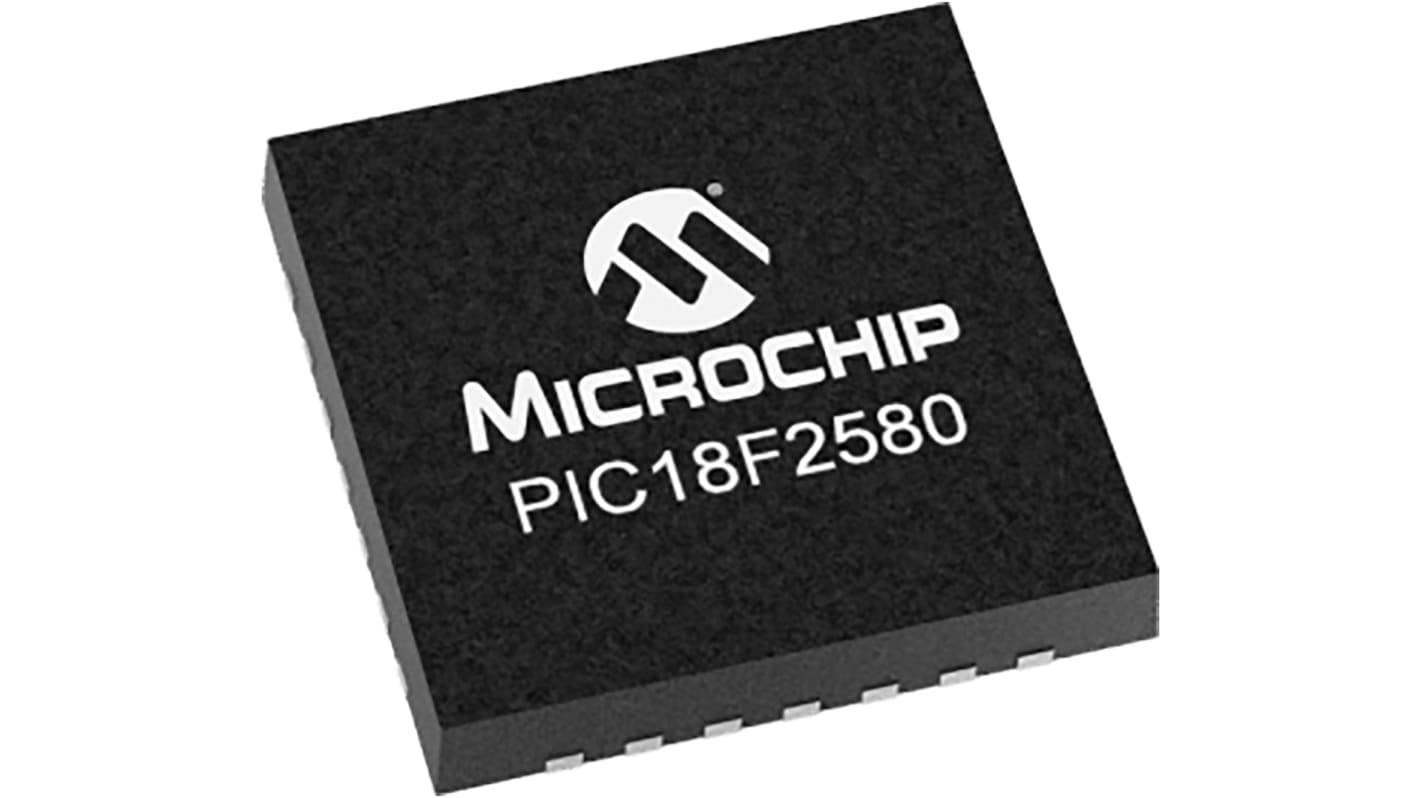

Microchip PIC18LF2580-I/ML, 8bit PIC Microcontroller, PIC18LF, 40MHz, 32 kB Flash, 28-Pin QFN
- RS Stock No.:
- 177-2521
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18LF2580-I/ML
- ผู้ผลิต / Manufacturer:
- Microchip
366 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 2)
THB402.305
(exc. VAT)
THB430.466
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 14 | THB402.305 | THB804.61 |
| 16 - 28 | THB392.25 | THB784.50 |
| 30 + | THB386.215 | THB772.43 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 177-2521
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18LF2580-I/ML
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
รายละเอียดสินค้า / Product Details
This family of devices offers the advantages of all PIC18 microcontrollers – namely, high computation performance at an economical price – with the addition of high-endurance, Enhanced Flash program memory. In addition to these features, the PIC18F2480/2580/4480/4580 family introduces design enhancements that make these microcontrollers a logical choice for many high-performance power-sensitive applications.
ECAN™
nanoWatt Features
Internal Oscillator
Self Programming
40 MHz Max. Speed
LIN USART
nanoWatt Features
Internal Oscillator
Self Programming
40 MHz Max. Speed
LIN USART
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | PIC18LF |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 1.536 kB |
| USB Channels | 0 |
| Number of PWM Units | 1 x 16 bit |
| Number of SPI Channels | 1 |
| Number of USART Channels | 1 |
| Number of CAN Channels | 1 |
| Number of UART Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Number of I2C Channels | 1 |
| Number of Ethernet Channels | 0 |
| Number of PCI Channels | 0 |
| Data Rate | 10Mbit/s |
| Width | 6mm |
| Number of LIN Channels | 0 |
| Height | 0.95mm |
| ADCs | 8 x 10 bit |
| Length | 6mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | Harvard |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (1 x 16 bit) |
| Dimensions | 6 x 6 x 0.95mm |
| Maximum Number of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
