- RS Stock No.:
- 177-2177
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:

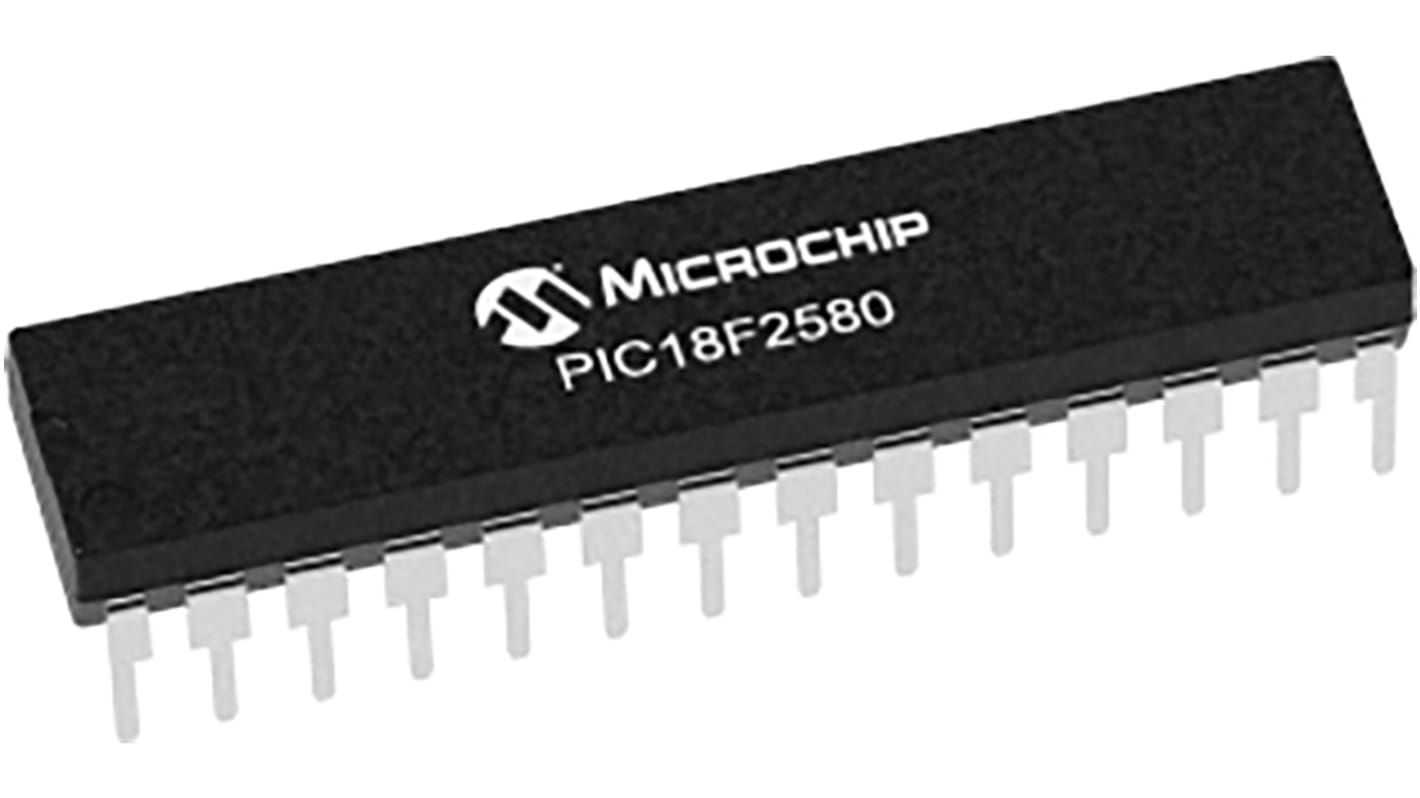

- PIC18F2580-I/SP
- ผู้ผลิต / Manufacturer:
- Microchip
60 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tube of 15)
THB398.331
(exc. VAT)
THB426.214
(inc. VAT)
Units | Per unit | Per Tube* |
15 - 15 | THB398.331 | THB5,974.965 |
30 - 45 | THB389.567 | THB5,843.505 |
60 + | THB381.203 | THB5,718.045 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 177-2177
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18F2580-I/SP
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- US
รายละเอียดสินค้า / Product Details
This family of devices offers the advantages of all PIC18 microcontrollers – namely, high computation performance at an economical price – with the addition of high-endurance, Enhanced Flash program memory. In addition to these features, the PIC18F2480/2580/4480/4580 family introduces design enhancements that make these microcontrollers a logical choice for many high-performance power-sensitive applications.
ECAN™
nanoWatt Features
Internal Oscillator
Self Programming
40 MHz Max. Speed
LIN USART
nanoWatt Features
Internal Oscillator
Self Programming
40 MHz Max. Speed
LIN USART
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | PIC18F |
Package Type | SPDIP |
Mounting Type | Through Hole |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 32 kB |
Maximum Frequency | 40MHz |
RAM Size | 1.536 kB |
USB Channels | 0 |
Number of PWM Units | 1 x 16 bit |
Number of SPI Channels | 1 |
Number of UART Channels | 1 |
Number of USART Channels | 1 |
Number of I2C Channels | 1 |
Typical Operating Supply Voltage | 5.5 (Maximum) V |
Number of CAN Channels | 1 |
Instruction Set Architecture | Harvard |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Maximum Number of Ethernet Channels | 0 |
Program Memory Type | Flash |
Pulse Width Modulation | 1 (1 x 16 bit) |
Number of Ethernet Channels | 0 |
Number of PCI Channels | 0 |
Number of LIN Channels | 0 |
ADCs | 8 x 10 bit |
Length | 35.56mm |
Height | 3.81mm |
Width | 7.37mm |
Data Rate | 10Mbit/s |
Dimensions | 1.4 x 0.29 x 0.15in |
