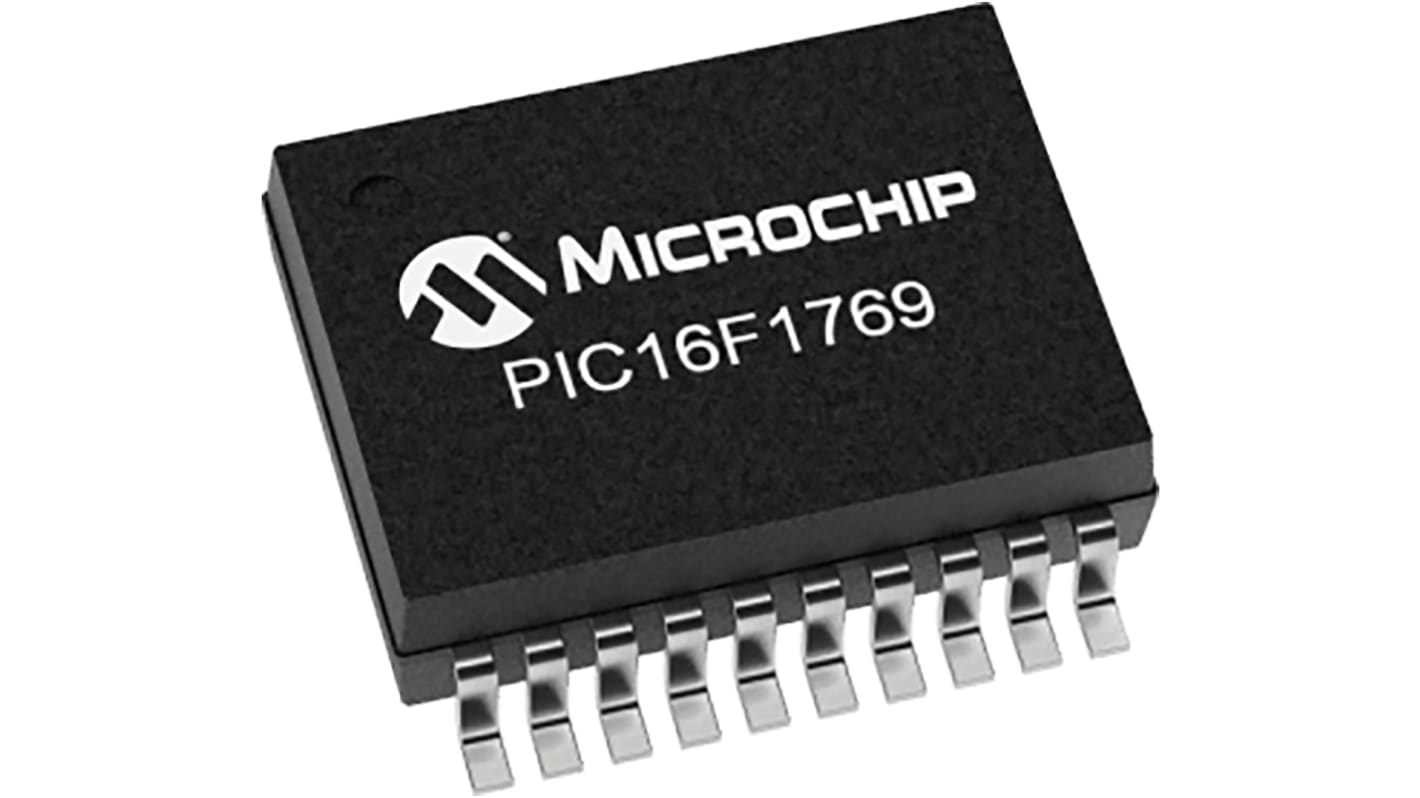

Microchip PIC16F1769-I/SS, 8bit PIC Microcontroller, PIC16F, 32MHz, 14 kB Flash, 20-Pin SSOP
- RS Stock No.:
- 177-2076
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC16F1769-I/SS
- ผู้ผลิต / Manufacturer:
- Microchip
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 20/06/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tube of 67)
THB76.489
(exc. VAT)
THB81.843
(inc. VAT)
| Units | Per unit | Per Tube* |
| 67 - 67 | THB76.489 | THB5,124.763 |
| 134 - 201 | THB74.806 | THB5,012.002 |
| 268 + | THB73.199 | THB4,904.333 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 177-2076
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC16F1769-I/SS
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
รายละเอียดสินค้า / Product Details
PIC16(L)F176X microcontrollers combine intelligent analog integration with digital peripherals to suit a variety of functions and applications.
Flash Program Memory with self read/write capability
PIC16 Mid-Range Core, 32 MHz oscillator
High Endurance Flash (HEF)
128 B of non-volatile data storage
100K erase / write cycles
Op Amps: Up to 2
Programmable Ramp Generator (PRG)
Slope Compensation
Ramp Generation\
Digital-to-Analog Converters (DAC):
5-bit: Up to 2
10-bit: Up to 2
10-bit Analog-to-Digital Converter (ADC): Up to 12 channels
Complementary Output Generator (COG): Up to 2
Data Signal Modulator (DSM): Up to 2
3 x Configurable Logic Cell (CLC)
PWMs: two 10-bit and two 16-bit
High Current Drive I/Os: Up to 100mA capacity
Zero Cross Detect (ZCD)
Wide Operating Voltage of PIC16F1764 variant (2.3V – 5.5V)
Enhanced Low-Voltage PIC16LF1764 variant (1.8V - 3.6V)
PIC16 Mid-Range Core, 32 MHz oscillator
High Endurance Flash (HEF)
128 B of non-volatile data storage
100K erase / write cycles
Op Amps: Up to 2
Programmable Ramp Generator (PRG)
Slope Compensation
Ramp Generation\
Digital-to-Analog Converters (DAC):
5-bit: Up to 2
10-bit: Up to 2
10-bit Analog-to-Digital Converter (ADC): Up to 12 channels
Complementary Output Generator (COG): Up to 2
Data Signal Modulator (DSM): Up to 2
3 x Configurable Logic Cell (CLC)
PWMs: two 10-bit and two 16-bit
High Current Drive I/Os: Up to 100mA capacity
Zero Cross Detect (ZCD)
Wide Operating Voltage of PIC16F1764 variant (2.3V – 5.5V)
Enhanced Low-Voltage PIC16LF1764 variant (1.8V - 3.6V)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | PIC16F |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 1 kB |
| USB Channels | 0 |
| Number of PWM Units | 2 x 10/16 bit |
| Number of SPI Channels | 1 |
| Number of USART Channels | 1 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Number of UART Channels | 1 |
| Number of CAN Channels | 0 |
| Instruction Set Architecture | RISC |
| Height | 1.85mm |
| ADCs | 12 x 10 bit |
| Length | 7.5mm |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 0 |
| Pulse Width Modulation | 1 (2 x 10 bit), 1 (2 x 16 bit) |
| Program Memory Type | Flash |
| Number of Ethernet Channels | 0 |
| Number of LIN Channels | 0 |
| Number of PCI Channels | 0 |
| Width | 5.6mm |
| Dimensions | 7.5 x 5.6 x 1.85mm |
