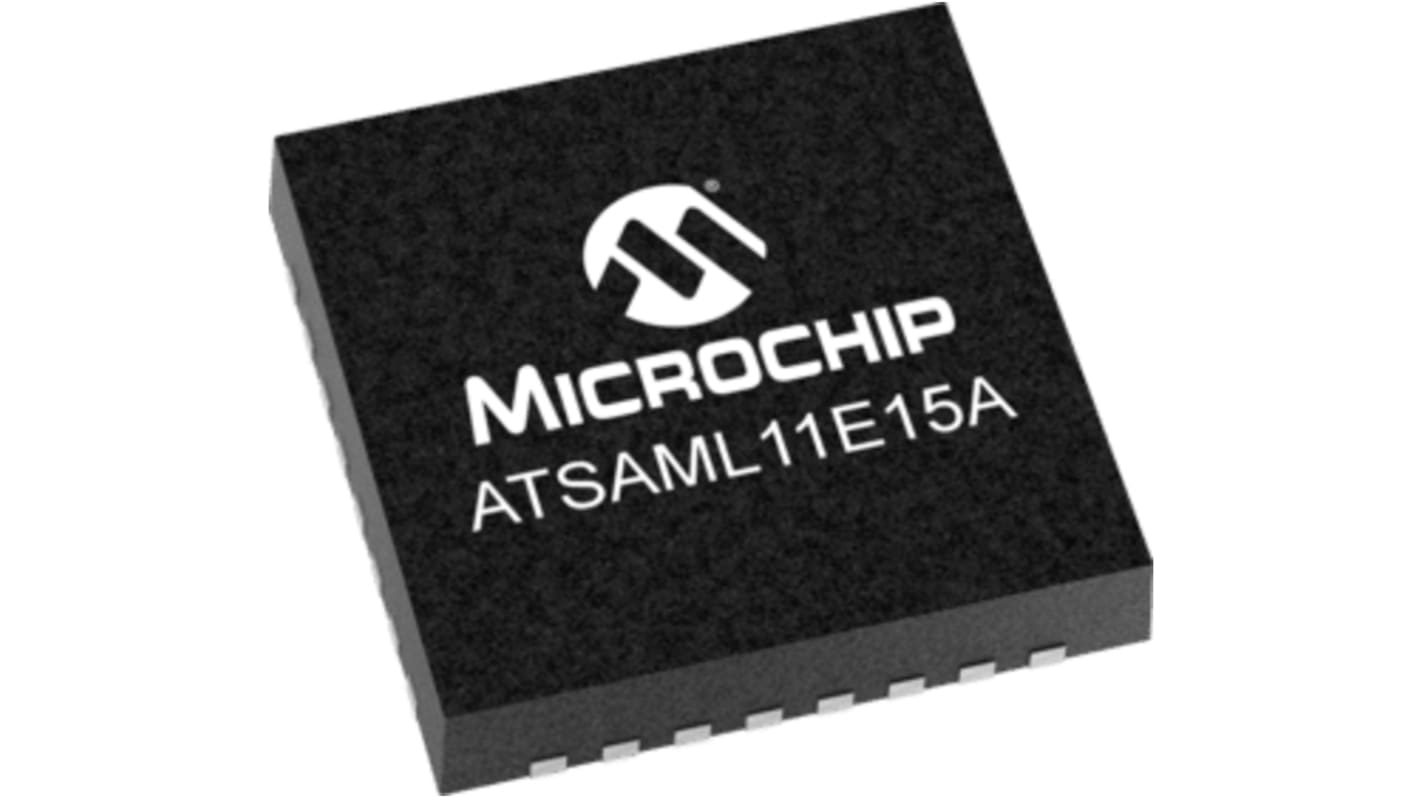

Microchip ATSAML11E15A-MU, 32bit ARM Cortex M23 Microcontroller, SAML11, 32MHz, 32 kB Flash, 32-Pin VQFN
- RS Stock No.:
- 175-9408
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAML11E15A-MU
- ผู้ผลิต / Manufacturer:
- Microchip
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 20/09/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 5)
THB95.178
(exc. VAT)
THB101.84
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 120 | THB95.178 | THB475.89 |
| 125 - 240 | THB92.798 | THB463.99 |
| 245 + | THB91.368 | THB456.84 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 175-9408
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAML11E15A-MU
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- US
รายละเอียดสินค้า / Product Details
Power Arm® Cortex®-M23 featuring chip-level security and ARM® TrustZone® Technology, consuming less than 25uA/MHz in active mode and less than 100 nA in sleep mode. It features secure key storage, chip-level tamper resistance, crypto accelerators, secure boot, secure bootloader, enhanced peripheral touch controller, advanced analog, ISO7816 smart card interface, event system and Sleep Walking peripherals.
Processor:
ARM Cortex®-M23
32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
Single-cycle hardware multiplier
Hardware divider
Nested Vector Interrupt Controller (NVIC)
Memory Protection Unit (MPU)
Operating Voltage Range:
1.62V to 3.63V
ARM Cortex®-M23
32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
Single-cycle hardware multiplier
Hardware divider
Nested Vector Interrupt Controller (NVIC)
Memory Protection Unit (MPU)
Operating Voltage Range:
1.62V to 3.63V
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | SAML11 |
| Package Type | VQFN |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | ARM Cortex M23 |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 8 kB |
| USB Channels | 0 |
| Number of PWM Units | 0 |
| Number of SPI Channels | 3 |
| Number of CAN Channels | 0 |
| Number of UART Channels | 0 |
| Typical Operating Supply Voltage | 1.62 → 3.63 V |
| Number of I2C Channels | 2 |
| Number of USART Channels | 1 |
| Length | 5mm |
| ADCs | 10 x 12 bit |
| Height | 0.95mm |
| Number of LIN Channels | 1 |
| Width | 5mm |
| Maximum Operating Temperature | +125 °C |
| Number of ADC Units | 1 |
| Dimensions | 5 x 5 x 0.95mm |
| Automotive Standard | AEC-Q100 |
| Maximum Number of Ethernet Channels | 0 |
| Number of PCI Channels | 0 |
| Instruction Set Architecture | MCU |
| Minimum Operating Temperature | -40 °C |
| Pulse Width Modulation | 1 (2 Channel) |
| Number of Ethernet Channels | 0 |
| Program Memory Type | Flash |
