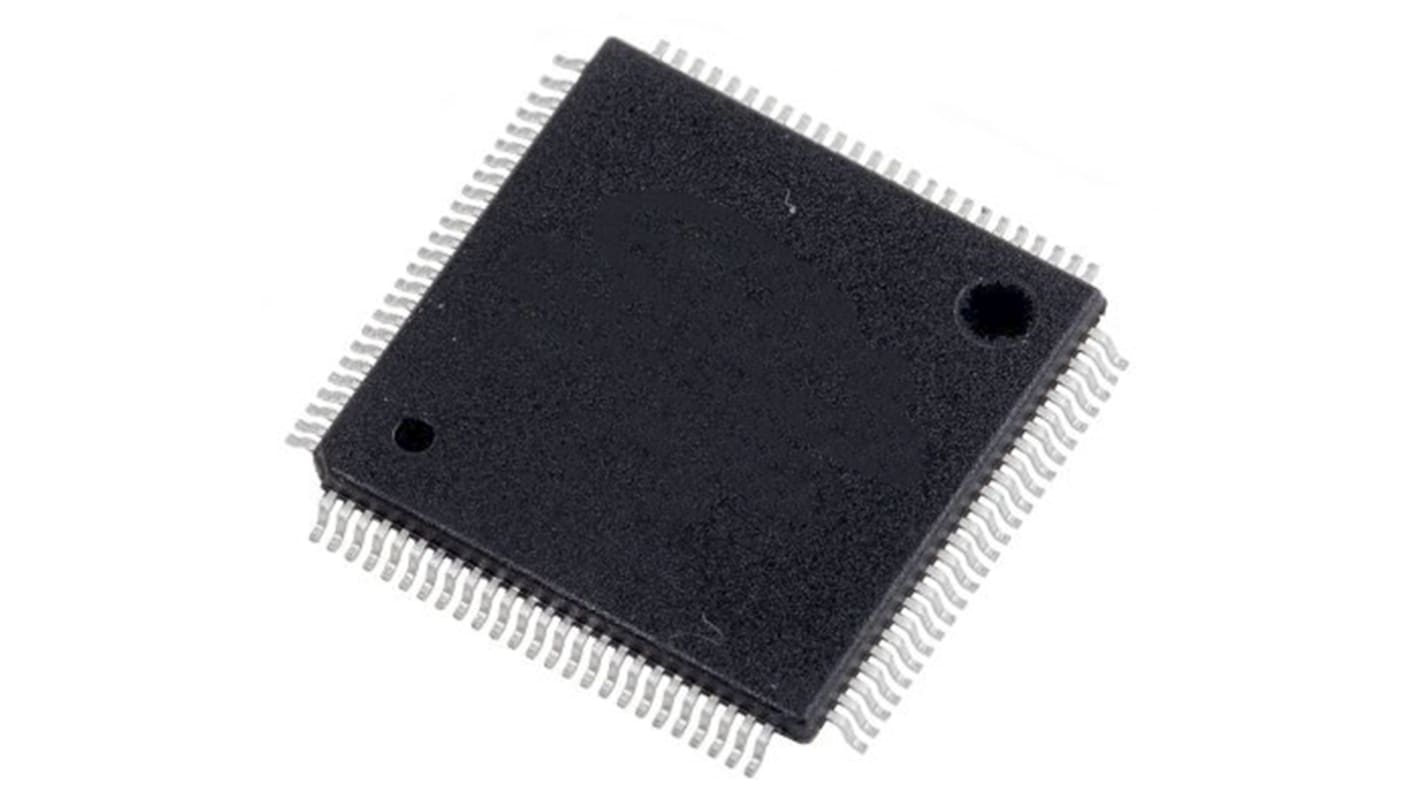

STMicroelectronics STM32L4R5VGT6, 32bit ARM Cortex M4 MCU, 120MHz, 2 MB Flash, 100-Pin LQFP

  • RS Stock No. 175-0722
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. STM32L4R5VGT6
  • ผู้ผลิต / Manufacturer STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
รายละเอียดสินค้า / Product Details

STMicroelectronics Microcontroller

The STMicroelectronics STM32L4 family type, LQFP package, surface mount, 100-pin 32-bit arm cortex-M4 core microcontroller. It has a voltage rating of 3.6V. This operates at a maximum speed of 120MHz and features 2Mb ISP flash program memory and 640kb of SRAM. It has features a floating-point unit (FPU) which supports arm double-precision and single-precision data-processing instructions and data types. This device supports a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

Features and Benefits

• 14-channel DMA controller
• 83 of I/O pins
• Advanced graphics features such as Chrom-ART Accelerator™ and Chrom-GRC™
• Batch acquisition mode (BAM) and brownout reset
• CAN (2.0B Active) and SDMMC interface
• Internal 48MHz with clock recovery
• It has an 8-bit to 14-bit camera interface
• LCD-TFT controller
• On-chip power-on-reset (POR), voltage detector (LVD) and key interrupt function (KIF)
• One 12-bit ADC 5 Msps, up to 16 bit with hardware oversampling
• One operational amplifier with built-in PGA
• Operating temperature ranges between -40°C and 85°C
• RTC with HW calendar, alarms and calibration
• Serial interfaces- CAN, UART, I2C, LIN, CSIs and SPI
• Serial wire debug supported
• True random number generator (RNG)
• Two 12-bit DAC, low-power sample and hold
• Two 16-bit advanced motor control timers
• Two 16-bit timers
• Two 32-bit timer
• Up to 21 capacitive sensing channels- support touch key, linear and rotary touch sensors

Applications

• Electronic equipments
• Low power appliances
• Temperature sensors

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name STM32L4
Package Type LQFP
Mounting Type Surface Mount
Pin Count 100
Device Core ARM Cortex M4
Data Bus Width 32bit
Program Memory Size 2 MB
Maximum Frequency 120MHz
RAM Size 640 kB
USB Channels 1
Number of PWM Units 2
ADC Channels 16
Number of SPI Channels 3
Typical Operating Supply Voltage 3.6 (Maximum) V
Timers 1 (2 x 16 bit), 1 (2 x 32 bit), 1 (5 x 16 bit)
Number of I2C Channels 4
PWM Channels 6
Instruction Set Architecture DSP, RISC
Minimum Operating Temperature -40 °C
Program Memory Type Flash
Width 14.2mm
ADCs 1 (16 x 12 bit)
Number of USART Channels 3
PWM Resolution 16bit
Number of ADC Units 1
Number of Timers 5
Number of CAN Channels 1
Dimensions 14.2 x 14.2 x 1.45mm
Length 14.2mm
Pulse Width Modulation 2 (6 x 16 bit)
Number of UART Channels 6
ADC Resolution 12bit
Maximum Operating Temperature +85 °C
Timer Resolution 16 bit, 32 bit
Height 1.45mm
540 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each (In a Tray of 90)
THB 353.373
(exc. VAT)
THB 378.109
(inc. VAT)
Units
Per unit
Per Tray*
90 - 90
THB353.373
THB31,803.57
180 - 450
THB314.333
THB28,289.97
540 +
THB288.134
THB25,932.06
*ตัวบ่งบอกราคา / price indicative
