- RS Stock No.:
- 171-7864
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:

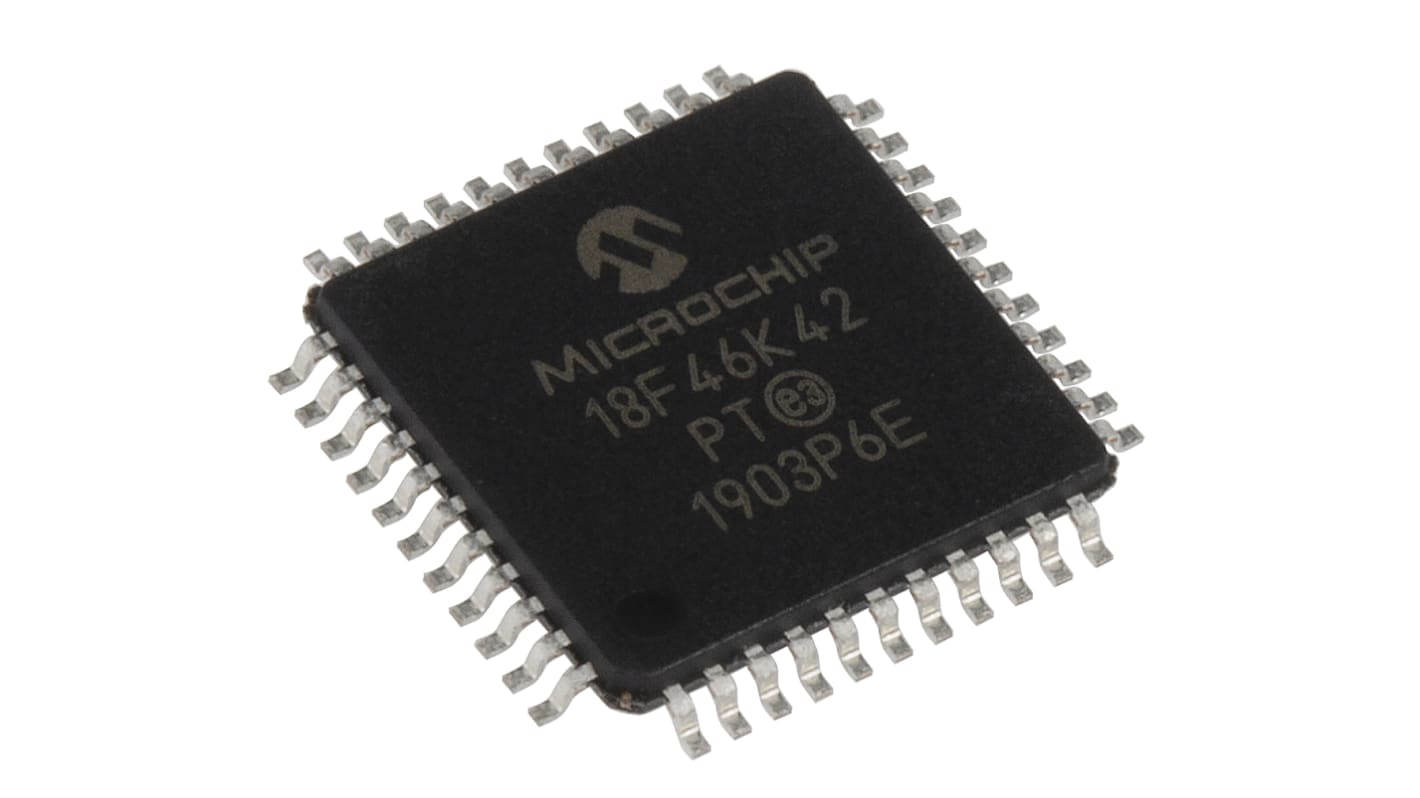

- PIC18F46K42-I/PT
- ผู้ผลิต / Manufacturer:
- Microchip
ขออภัย เราไม่สามารถตรวจสอบสต็อคสินค้าได้ในเวลานี้ โปรดรีเฟรชเพจอีกครั้ง
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 5)
THB94.484
(exc. VAT)
THB101.098
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 35 | THB94.484 | THB472.42 |
40 - 75 | THB92.598 | THB462.99 |
80 + | THB90.748 | THB453.74 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 171-7864
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18F46K42-I/PT
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
PIC18(L)FxxK42 MCUs integrate a rich set of core independent peripherals, intelligent analog peripherals and large Flash/RAM/EEPROM memories. These 28-, 40- and 48-pin devices also offer a host of low power features, performance improvements and design flexibility options that easily and rapidly enable the complex set of functions required by many of today's embedded control applications.
Vectored Interrupt (VI) capability - Faster interrupt response time
Interrupt Vector Table
Programmable single or dual priority
Two level hardware context saving
Direct Memory Access (DMA) controllers - Move data between without CPU
Eliminates need for CPU involvement in data transfers
Access to all memory spaces and peripherals
Flexible source and destination message sizes
Programmable DMA priority
Memory Access Partition (MAP) - Customize flash partitioning with bootloader write protection
Interrupt Vector Table
Programmable single or dual priority
Two level hardware context saving
Direct Memory Access (DMA) controllers - Move data between without CPU
Eliminates need for CPU involvement in data transfers
Access to all memory spaces and peripherals
Flexible source and destination message sizes
Programmable DMA priority
Memory Access Partition (MAP) - Customize flash partitioning with bootloader write protection
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | PIC18F |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 64MHz |
RAM Size | 4 kB |
USB Channels | 0 |
Number of PWM Units | 1 x 10 bit |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 5.5 V |
Number of I2C Channels | 2 |
Number of USART Channels | 0 |
Number of CAN Channels | 0 |
Number of UART Channels | 2 |
Dimensions | 10 x 10 x 1.05mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Instruction Set Architecture | RISC |
Minimum Operating Temperature | -40 °C |
Maximum Number of Ethernet Channels | 0 |
Number of PCI Channels | 0 |
Number of Ethernet Channels | 0 |
Length | 10mm |
ADCs | 35 x 12 bit |
Height | 1.05mm |
Number of LIN Channels | 1 |
Width | 10mm |
Program Memory Type | Flash |
Pulse Width Modulation | 1 (4 x 10 bit) |
