- RS Stock No.:
- 171-7842
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:

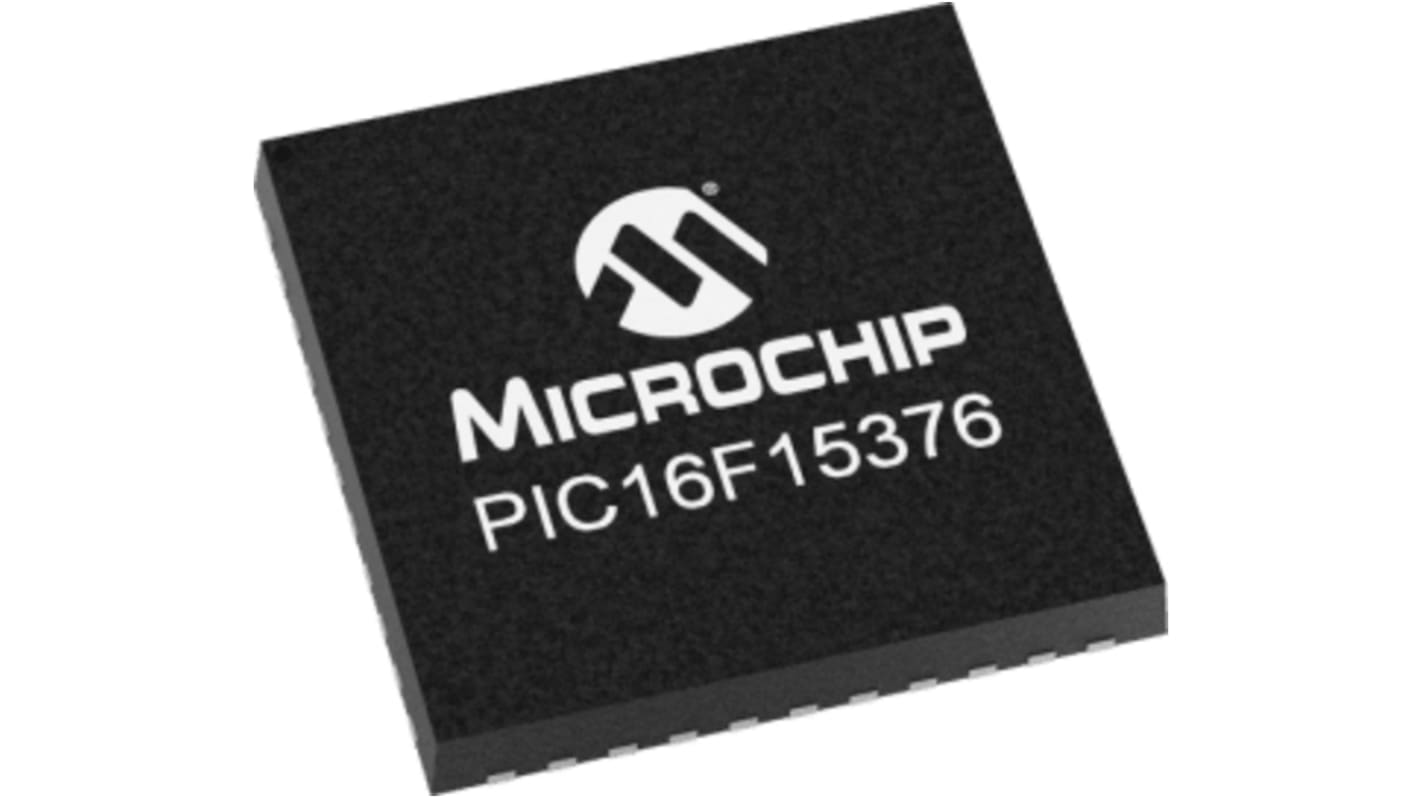

- PIC16F15376-I/ML
- ผู้ผลิต / Manufacturer:
- Microchip
315 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 5)
THB71.274
(exc. VAT)
THB76.263
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 10 | THB71.274 | THB356.37 |
15 - 20 | THB69.492 | THB347.46 |
25 + | THB68.426 | THB342.13 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 171-7842
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC16F15376-I/ML
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
PIC16(L)F153XX 8-bit product family feature essential peripherals like Intelligent Analog, Core Independent Peripherals (CIPs) and communication combined with eXtreme Low-Power (XLP) for a wide range of low-power applications. The family features PWMs, multiple communication, temperature sensor and memory features like Memory Access Partition (MAP) and Device Information Area (DIA). The products will be offered in a broad range of pin counts from 8 to 48-pins, to support customers in various applications.
Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
Flash Program Memory with self read/write capability
eXtreme Low Power (XLP)
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
4x 10-bit PWMs
2x Capture, Compare, PWM (CCP)
Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
Flash Program Memory with self read/write capability
eXtreme Low Power (XLP)
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
4x 10-bit PWMs
2x Capture, Compare, PWM (CCP)
Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | PIC16F |
Package Type | QFN |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 28 kB |
Maximum Frequency | 32MHz |
RAM Size | 2 kB |
USB Channels | 0 |
Number of PWM Units | 1 x 10 bit |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 5.5 V |
Number of USART Channels | 2 |
Number of UART Channels | 2 |
Number of I2C Channels | 2 |
Number of CAN Channels | 0 |
Pulse Width Modulation | 1 (4 x 10 bit) |
Program Memory Type | Flash |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Length | 8mm |
ADCs | 35 x 10 bit |
Height | 0.95mm |
Number of LIN Channels | 1 |
Width | 8mm |
Dimensions | 8 x 8 x 0.95mm |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | RISC |
Number of Ethernet Channels | 0 |
Number of PCI Channels | 0 |
Maximum Number of Ethernet Channels | 0 |
