- RS Stock No.:
- 171-7746
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATMEGA16U2-MU
- ผู้ผลิต / Manufacturer:
- Microchip
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 23/04/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tray of 490)
THB120.013
(exc. VAT)
THB128.414
(inc. VAT)
Units | Per unit | Per Tray* |
490 - 490 | THB120.013 | THB58,806.37 |
980 - 1470 | THB117.373 | THB57,512.77 |
1960 + | THB114.853 | THB56,277.97 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 171-7746
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATMEGA16U2-MU
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

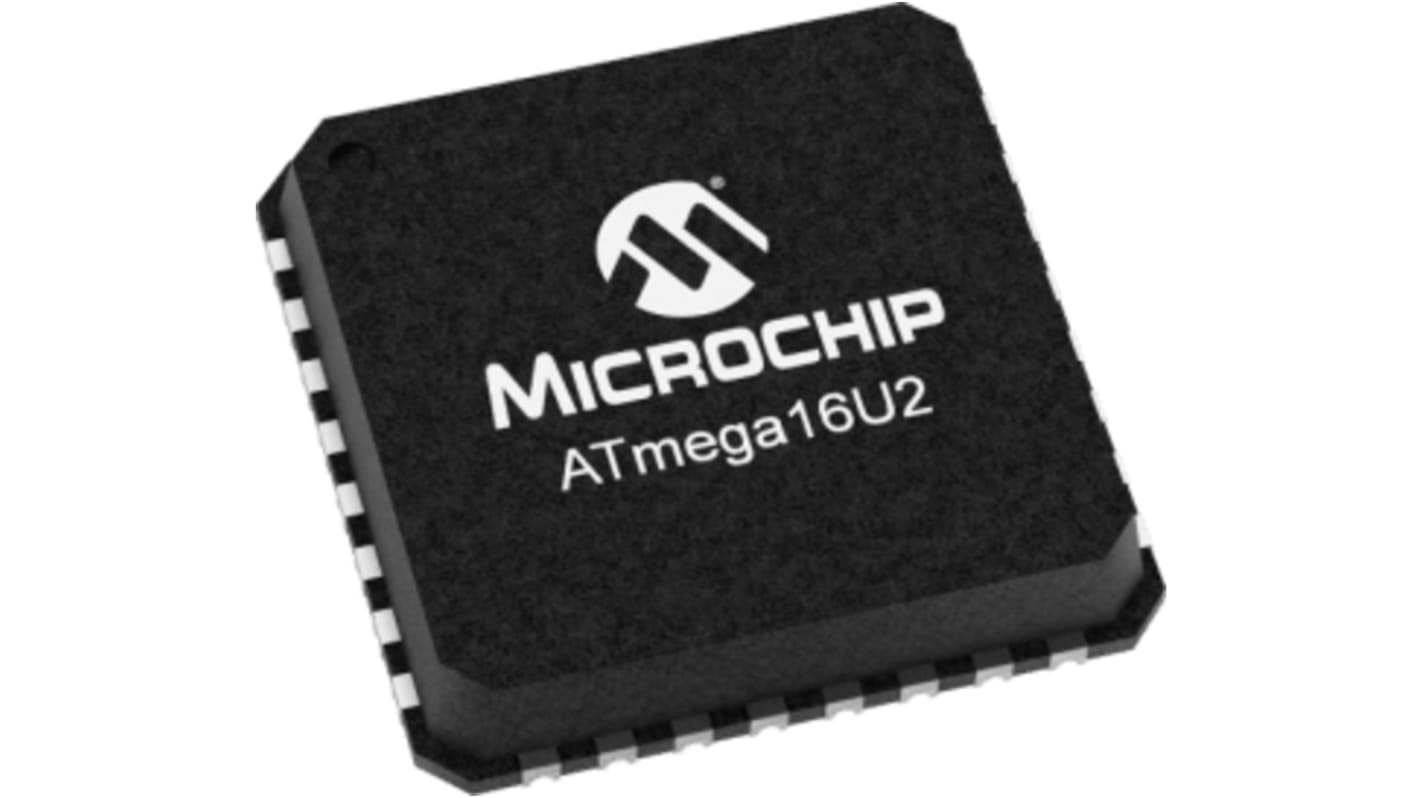

Microchip Technology Microcontroller
The Microchip technology ATMEGA family type, QFN package, surface mount, 32-pin AVR RISC-based 8-bit has a maximum voltage rating of 5.5 V. This microcontroller operates at a maximum speed of 16MHz and features 16kb ISP flash program memory, 512 byte of internal SRAM and 512 bytes EEPROM. It has 22 programmable I/O lines. The microcontroller has a real-time counter, two flexible timer/counters- compare modes and PWM, two USARTs and more. It also has a byte-oriented two-wire serial interface with optional differential input stage with programmable gain, programmable watchdog timer with an internal oscillator.
Features and Benefits
Advanced RISC Architecture
Bulk, interrupt and isochronous transfers
Default boot program interface with SAM-BAGRAPHIC user interface
High-performance, Low Power AVR® 8-Bit Microcontroller
In-System programming by on-chip boot program hardware-activated after reset
Non-volatile program and data memories
Operating temperature ranges between -40°C and 85°C
Sleep modes- idle, ADC noise reduction, power-save, power-down and standby
True read-while-write operation
USB 2.0 full-speed device module with interrupt on transfer completion operation
Bulk, interrupt and isochronous transfers
Default boot program interface with SAM-BAGRAPHIC user interface
High-performance, Low Power AVR® 8-Bit Microcontroller
In-System programming by on-chip boot program hardware-activated after reset
Non-volatile program and data memories
Operating temperature ranges between -40°C and 85°C
Sleep modes- idle, ADC noise reduction, power-save, power-down and standby
True read-while-write operation
USB 2.0 full-speed device module with interrupt on transfer completion operation
Applications
Embedded systems
LCD monitors and TVs
Mobile PC docking
PC motherboards
Portable hub boxes
Printers and scanners
LCD monitors and TVs
Mobile PC docking
PC motherboards
Portable hub boxes
Printers and scanners
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | ATmega |
Package Type | QFN |
Mounting Type | Surface Mount |
Pin Count | 32 |
Device Core | AVR |
Data Bus Width | 8bit |
Program Memory Size | 16 kB |
Maximum Frequency | 16MHz |
RAM Size | 512 kB |
USB Channels | 1 |
Number of PWM Units | 2 x 8 bit |
Number of SPI Channels | 1 |
Number of I2C Channels | 0 |
Number of UART Channels | 0 |
Number of USART Channels | 1 |
Number of CAN Channels | 0 |
Typical Operating Supply Voltage | 5.5 V |
Program Memory Type | Flash |
Number of Ethernet Channels | 0 |
Number of PCI Channels | 0 |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | RISC |
Number of ADC Units | 0 |
Maximum Operating Temperature | +85 °C |
Length | 5mm |
ADCs | 0 |
Maximum Number of Ethernet Channels | 0 |
Height | 0.95mm |
Number of LIN Channels | 0 |
Width | 5mm |
Dimensions | 5 x 5 x 0.95mm |
Pulse Width Modulation | 2 (5 x 8 bit) |
