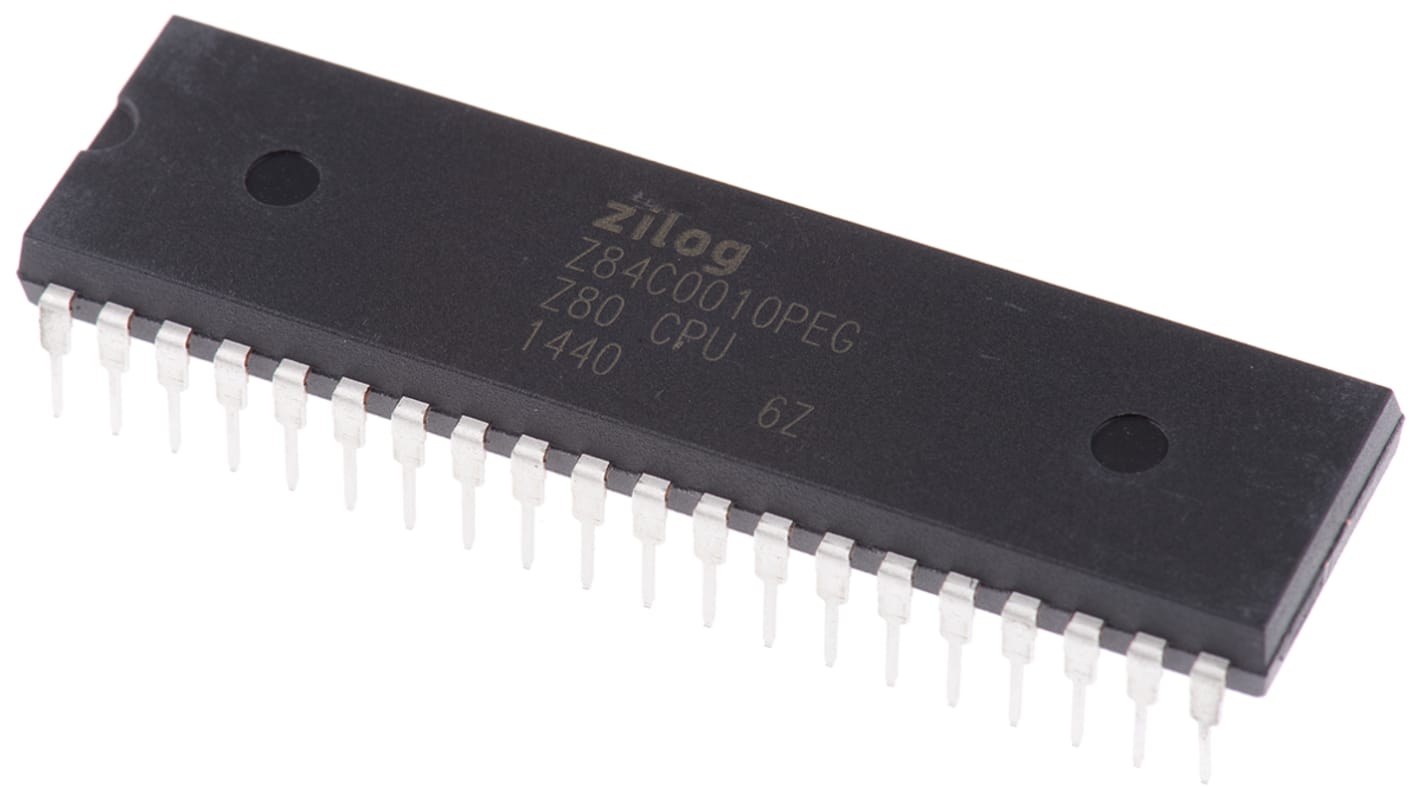

Zilog Z84C0010PEG, 8bit Z80 Microcontroller, Z80, 10MHz ROMLess, 40-Pin PDIP
- RS Stock No.:
- 169-8229
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- Z84C0010PEG
- ผู้ผลิต / Manufacturer:
- Zilog
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 01/11/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tube of 10)
THB284.153
(exc. VAT)
THB304.044
(inc. VAT)
| Units | Per unit | Per Tube* |
| 10 - 10 | THB284.153 | THB2,841.53 |
| 20 - 30 | THB277.902 | THB2,779.02 |
| 40 + | THB271.935 | THB2,719.35 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 169-8229
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- Z84C0010PEG
- ผู้ผลิต / Manufacturer:
- Zilog
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
Z80 Family Microcontrollers, Zilog
The Z80 CPUs are fourth-generation enhanced microprocessors with exceptional computational power. They offer higher system throughput and more efficient memory utilization than comparable second- and third generation microprocessors. The speed offerings from 6 -20 MHz suit a wide range of applications which migrate software. The Z80 architecture incorporates dual register banks that enable fast context switching and interrupt handling.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | Z80 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | Z80 |
| Data Bus Width | 8bit |
| Maximum Frequency | 10MHz |
| USB Channels | 0 |
| Number of SPI Channels | 0 |
| Number of USART Channels | 0 |
| Number of UART Channels | 0 |
| Number of CAN Channels | 0 |
| Typical Operating Supply Voltage | 4.5 → 5.5 V |
| Number of I2C Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 0 |
| Dimensions | 62.74 x 14.22 x 4.19mm |
| Instruction Set Architecture | CISC |
| Program Memory Type | ROMLess |
| Maximum Operating Temperature | +100 °C |
| Length | 62.74mm |
| Number of Ethernet Channels | 0 |
| Number of PCI Channels | 0 |
| Width | 14.22mm |
| Number of LIN Channels | 0 |
| Height | 4.19mm |
