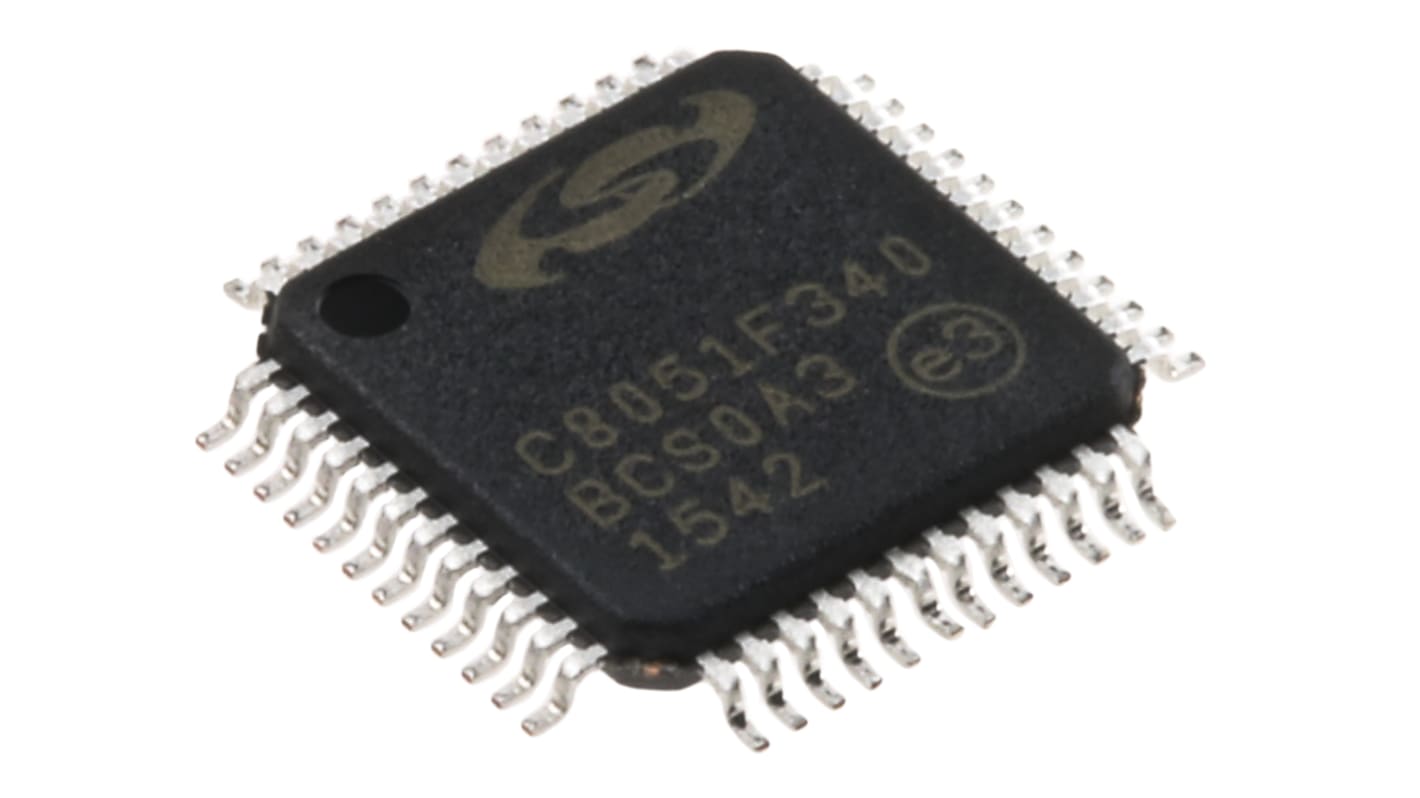

Silicon Labs C8051F340-GQ, 8bit 8051 Microcontroller, 48MHz, 64 kB Flash, 48-Pin TQFP

  • RS Stock No. 168-9903
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. C8051F340-GQ
  • ผู้ผลิต / Manufacturer Silicon Labs
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
รายละเอียดสินค้า / Product Details

C8051F32x/34x Microcontollers with USB, Silicon Labs

The Silicon Labs C8051F32x/34x families of microcontrollers (MCU) are embedded with full-speed USB 2.0, simplifying the implemention of USB into your design. Their USBXpress software enables a complete host and device side solution. No external resistors, crystal, voltage regulator, EEPROM or other components are required.

This family of microcontrollers includes a high-speed 8051 CPU with between 16 kB and 64 kB Flash. Together with UARTs, SMBus, SPI, timers, counters, PWM generators, multi-channel 10-bit ADC, voltage reference, internal oscillator, comparators and temperature sensor.

They are specified for 2.7 V to 3.6 V operation over the industrial temperature range (-45°C to +85°C). Available in 28-pin QFN, 32-pin LQFP or 48-pin TQFP packages.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name C8051F
Package Type TQFP
Mounting Type Surface Mount
Pin Count 48
Device Core 8051
Data Bus Width 8bit
Program Memory Size 64 kB
Maximum Frequency 48MHz
RAM Size 4.352 kB
USB Channels 2
Number of PWM Units 2
ADC Channels 17
Number of SPI Channels 1
Typical Operating Supply Voltage 2.7 → 5.25 V
Minimum Operating Temperature -40 °C
Timers 4 x 16 bit
Timer Resolution 16bit
ADC Resolution 10bit
Number of Timers 4
Number of ADC Units 1
ADCs 1(17 x 10 bit)
Width 7mm
Program Memory Type Flash
Number of PCI Channels 1
Height 0.95mm
Maximum Operating Temperature +85 °C
Instruction Set Architecture Harvard
PWM Resolution 8 bit, 16 bit
Dimensions 7 x 7 x 0.95mm
Length 7mm
Pulse Width Modulation 1(16 bit), 1(8 bit)
Number of UART Channels 2
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 03/01/2020, จัดส่งภายใน (delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each (In a Tray of 250)
THB 358.14
(exc. VAT)
THB 383.21
(inc. VAT)
Units
Per unit
Per Tray*
250 +
THB358.14
THB89,535.00
*ตัวบ่งบอกราคา / price indicative
