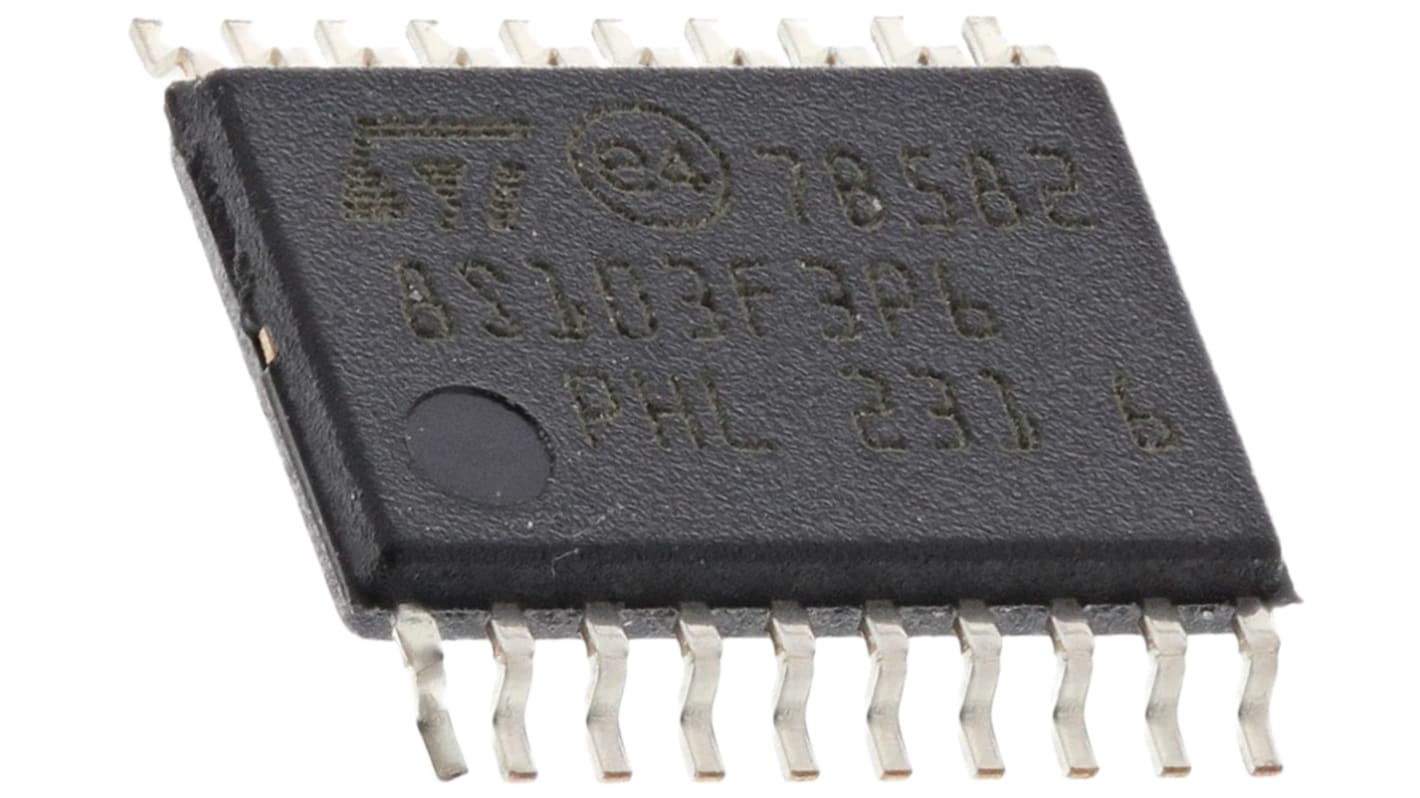

STMicroelectronics STM8S103F3P6, 8bit STM8 Microcontroller, 16MHz, 8 kB, 640 B Flash, 20-Pin TSSOP

  • RS Stock No. 168-7367
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. STM8S103F3P6
  • ผู้ผลิต / Manufacturer STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
รายละเอียดสินค้า / Product Details

STM8S Series Mainstream 8-Bit Microcontrollers, STMicroelectronics

The STM8S series of general-purpose 8-bit Flash microcontrollers is an advanced core version of the STM8 featuring a 3-stage pipeline. The STM8S delivers up to 20MIPS at a clock rate of 24MHz.

STM8 8-Bit Microcontrollers, STMicroelectronics

The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name STM8S
Package Type TSSOP
Mounting Type Surface Mount
Pin Count 20
Device Core STM8
Data Bus Width 8bit
Program Memory Size 8 kB, 640 B
Maximum Frequency 16MHz
RAM Size 1 kB
Number of PWM Units 1
ADC Channels 5
Number of SPI Channels 1
Typical Operating Supply Voltage 2.95 → 5.5 V
Program Memory Type Flash
Width 4.5mm
Height 1.05mm
Maximum Operating Temperature +85 °C
Number of UART Channels 1
Length 6.6mm
Dimensions 6.6 x 4.5 x 1.05mm
PWM Resolution 16bit
Instruction Set Architecture CISC
Minimum Operating Temperature -40 °C
Timers 1 x 8 bit, 4 x 16 bit
Timer Resolution 8 bit, 16 bit
ADC Resolution 10bit
Number of Timers 5
Number of ADC Units 1
ADCs 5 x 10 bit
PWM Channels 3
Number of I2C Channels 1
Pulse Width Modulation 3 x 16 bit
1258 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each (In a Tube of 74)
THB 38.48
(exc. VAT)
THB 41.17
(inc. VAT)
Units
Per unit
Per Tube*
74 +
THB38.48
THB2,847.52
*ตัวบ่งบอกราคา / price indicative
