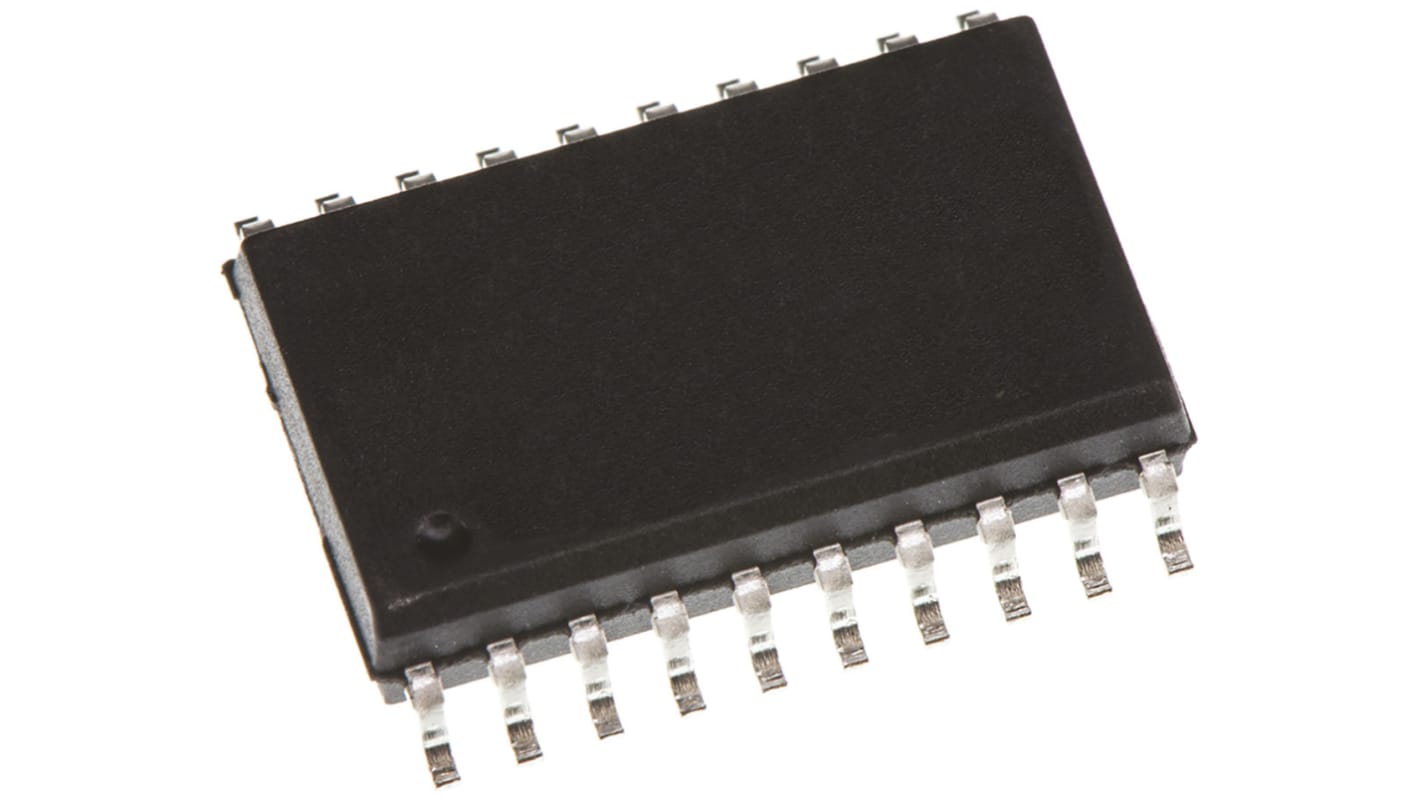

STMicroelectronics STM8S103F2M6, 8bit STM8 Microcontroller, STM8S, 16MHz, 8 kB Flash, 20-Pin SOIC
- RS Stock No.:
- 168-7016
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM8S103F2M6
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 24/03/2025, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tube of 40)
THB60.17
(exc. VAT)
THB64.38
(inc. VAT)
| Units | Per unit | Per Tube* |
| 40 - 40 | THB60.17 | THB2,406.80 |
| 80 - 120 | THB58.846 | THB2,353.84 |
| 160 + | THB57.582 | THB2,303.28 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 168-7016
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM8S103F2M6
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
รายละเอียดสินค้า / Product Details
STM8S Series Mainstream 8-Bit Microcontrollers, STMicroelectronics
The STM8S series of general-purpose 8-bit Flash microcontrollers is an advanced core version of the STM8 featuring a 3-stage pipeline. The STM8S delivers up to 20MIPS at a clock rate of 24MHz.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
STM8 8-Bit Microcontrollers, STMicroelectronics
The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | STM8S |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | STM8 |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 1 kB |
| USB Channels | 0 |
| Number of PWM Units | 1 x 16 bit |
| Number of SPI Channels | 1 |
| Number of CAN Channels | 0 |
| Number of USART Channels | 0 |
| Number of UART Channels | 1 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 5.5 V |
| Height | 2.35mm |
| Number of LIN Channels | 1 |
| Maximum Number of Ethernet Channels | 0 |
| Number of PCI Channels | 0 |
| Instruction Set Architecture | Harvard |
| Pulse Width Modulation | 1 (3 x 16 bit) |
| ADCs | 5 x 10 bit |
| Length | 13mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 13 x 7.6 x 2.35mm |
| Width | 7.6mm |
| Number of Ethernet Channels | 0 |
