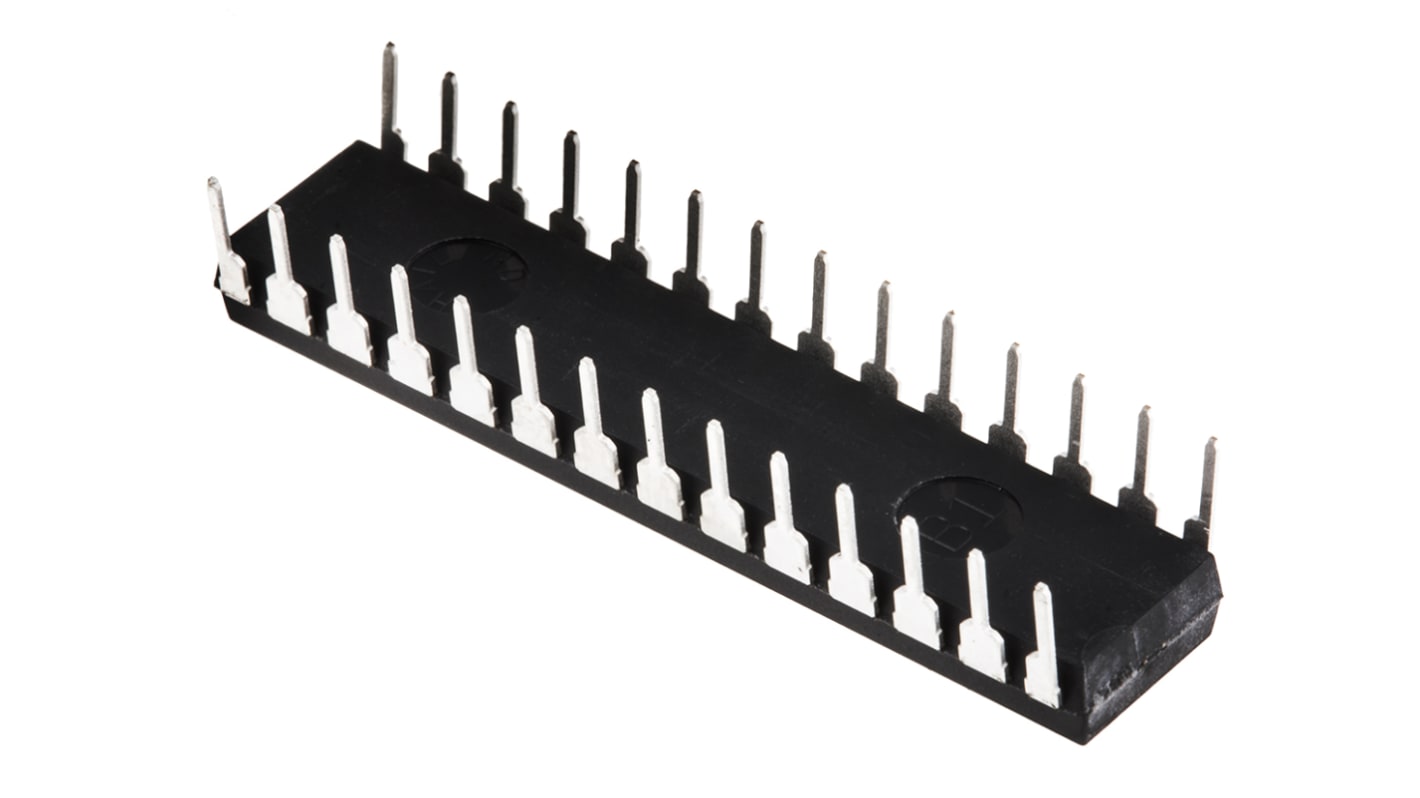

Microchip PIC16F872-I/SP, 8bit PIC Microcontroller, PIC16F, 20MHz, 64 B, 2K x 14 words Flash, 28-Pin SPDIP
- RS Stock No.:
- 165-4703
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC16F872-I/SP
- ผู้ผลิต / Manufacturer:
- Microchip
165 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tube of 15)
THB189.328
(exc. VAT)
THB202.581
(inc. VAT)
| Units | Per unit | Per Tube* |
| 15 - 15 | THB189.328 | THB2,839.92 |
| 30 - 45 | THB185.541 | THB2,783.115 |
| 60 + | THB181.83 | THB2,727.45 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 165-4703
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC16F872-I/SP
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
PIC16F872 8-Bit Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F872 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and EEPROM of 64 bytes.
The PIC16F872 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and EEPROM of 64 bytes.
Microcontroller Features
20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
22 I/O Pins
Power-On Reset (POR)
Brown-Out Reset (BOR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
35 Instructions
8 Level Hardware Stack
22 I/O Pins
Power-On Reset (POR)
Brown-Out Reset (BOR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Peripherals
5 Channel 10-bit Analogue-to-Digital Converter (ADC)
Capture, Compare, PWM (CCP) Module
Two 8-bit Timers
One 16-bit Timer
Synchronous Serial Port (SSP) with SPI and I2C
Capture, Compare, PWM (CCP) Module
Two 8-bit Timers
One 16-bit Timer
Synchronous Serial Port (SSP) with SPI and I2C
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | PIC16F |
| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 64 B, 2K x 14 words |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| USB Channels | 0 |
| Number of PWM Units | 1 x 10 bit |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 4 → 5.5 V |
| Number of USART Channels | 0 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 0 |
| Number of CAN Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 0 |
| Length | 35.18mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (10 bit) (CCP) |
| Dimensions | 35.18 x 7.49 x 3.43mm |
| Width | 7.49mm |
| Number of LIN Channels | 0 |
| Height | 3.43mm |
| ADCs | 5 x 10 bit |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
