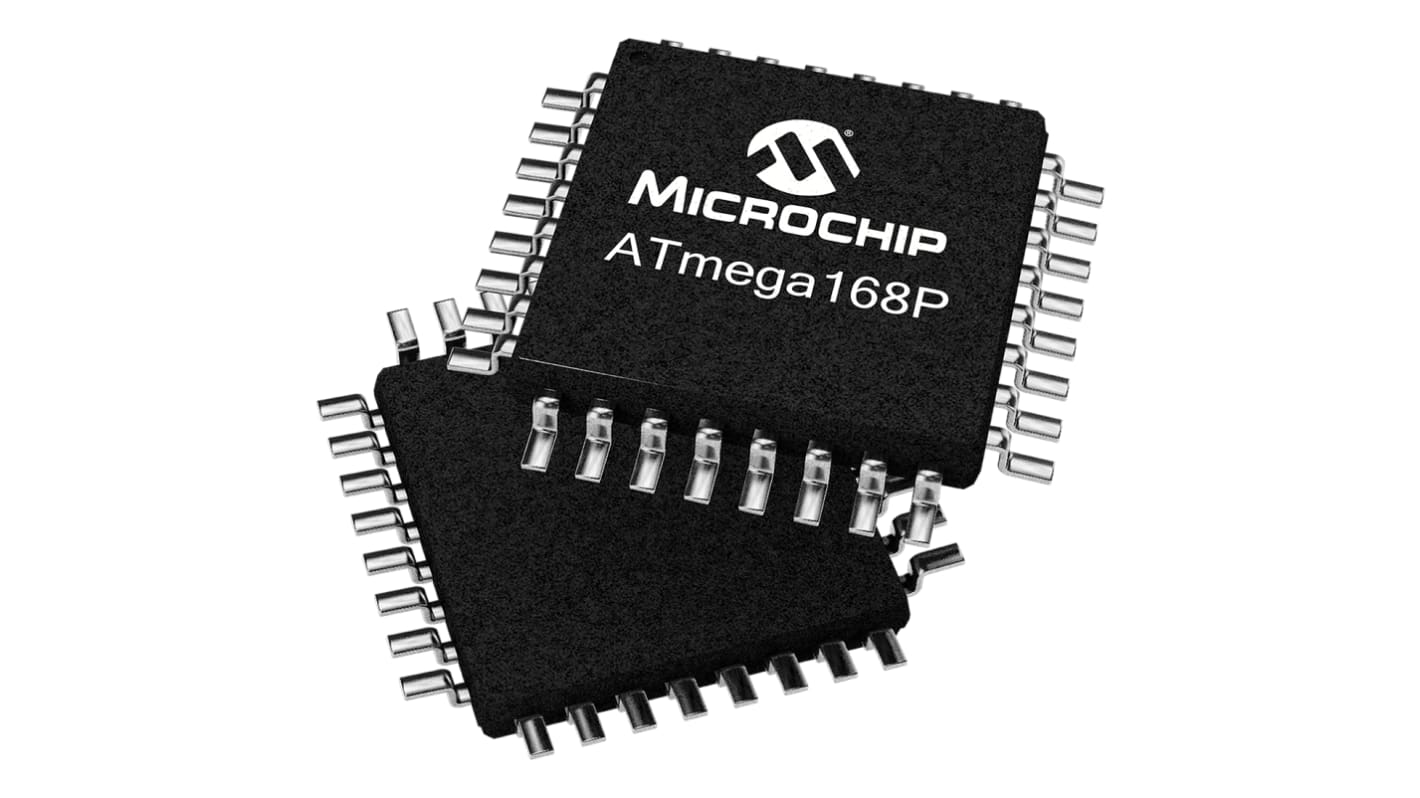

Microchip Technology ATMEGA168PV-10AU, 8bit AVR Microcontroller, 10MHz, 16 kB Flash, 32-Pin TQFP

  • RS Stock No. 127-8271
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. ATMEGA168PV-10AU
  • ผู้ผลิต / Manufacturer Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
รายละเอียดสินค้า / Product Details

8-Bit PicoPower megaAVR Family Microcontrollers

This range of megaAVR microcontrollers feature picoPower technology — perfect for energy saving. They offer generous program and data memories with performance of up to 20 MIPS.

Features & Benefits of picoPower megaAVR microcontrollers
•On-chip Flash
•SRAM
•Internal EEPROM
•SPI
•TWI (I²C)
•USART, USB, CAN & LIN interfaces
•Watchdog timer
•Precision oscillator
•GPIO pins
•ADC
•DAC
•Built-in temperature sensor
•Internal voltage reference
•Brown-out detector

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name ATmega
Package Type TQFP
Mounting Type Surface Mount
Pin Count 32
Device Core AVR
Data Bus Width 8bit
Program Memory Size 16 kB
Maximum Frequency 10MHz
RAM Size 1.024 kB
Number of PWM Units 1
ADC Channels 8
Typical Operating Supply Voltage 1.8 → 5.5 V
Width 7.1mm
Instruction Set Architecture RISC
Number of Timers 2
Program Memory Type Flash
Minimum Operating Temperature -40 °C
ADCs 1(8 x 10 bit)
Number of ADC Units 1
ADC Resolution 10bit
Maximum Operating Temperature +85 °C
Height 1.05mm
Pulse Width Modulation 1(6 Channel)
Timer Resolution 8 bit, 16 bit
Length 7.1mm
PWM Channels 6
Timers 1(1 x 16 bit), 1(2 x 8 bit)
Dimensions 7.1 x 7.1 x 1.05mm
162 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each: (In a Pack of 2)
THB 99.27
(exc. VAT)
THB 106.22
(inc. VAT)
Units
Per unit
Per Pack*
2 - 8
THB99.27
THB198.54
10 - 48
THB94.305
THB188.61
50 - 98
THB86.52
THB173.04
100 - 498
THB79.885
THB159.77
500 +
THB74.12
THB148.24
*ตัวบ่งบอกราคา / price indicative
