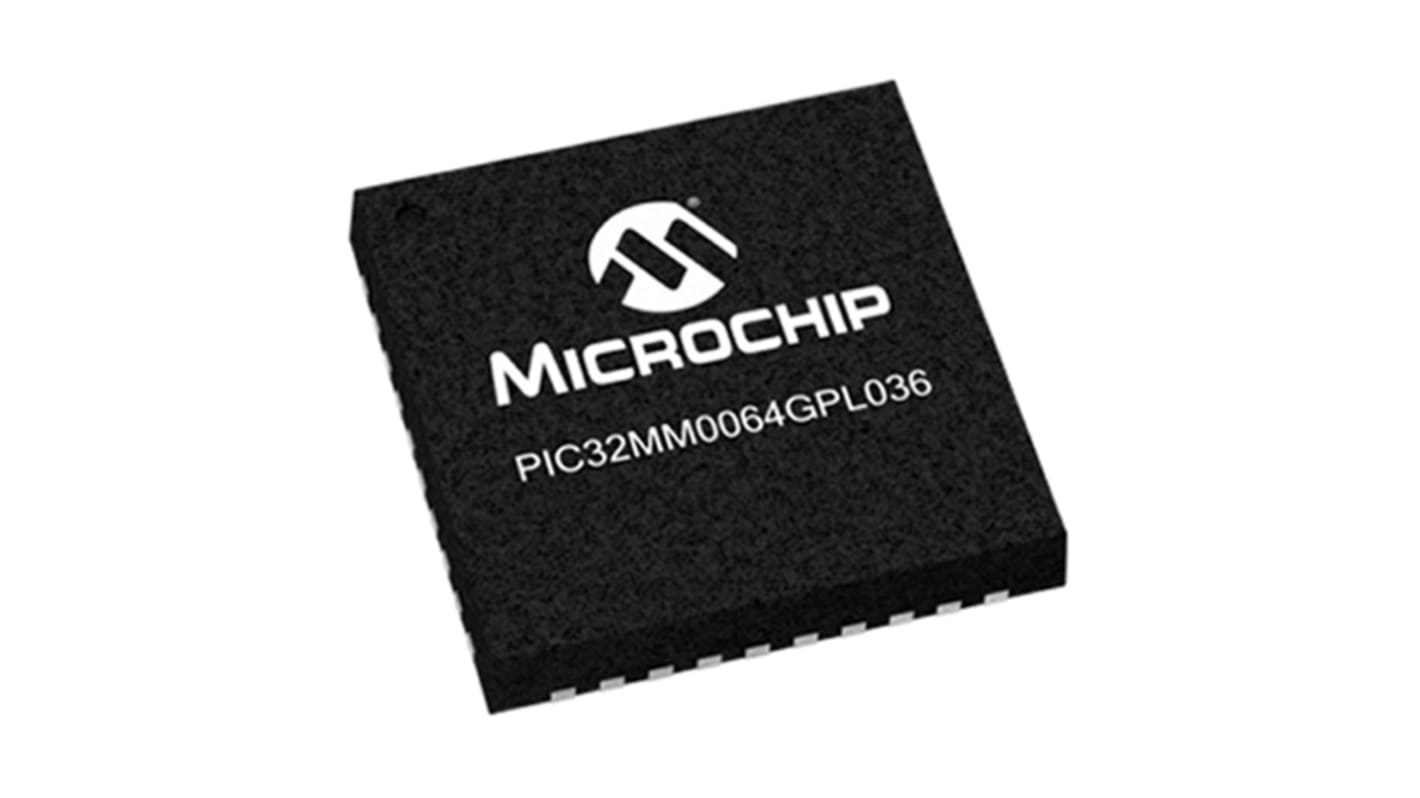

Microchip PIC32MM0064GPL036-I/MV, 32bit MIPS32® MicroAptiv™ Microcontroller, 25MHz, 64 kB Flash, 40-Pin UQFN

  • RS Stock No. 122-9757
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PIC32MM0064GPL036-I/MV
  • ผู้ผลิต / Manufacturer Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

PIC32MMxxxxGPL 32-Bit Microcontrollers

Microchip 32-bit PIC32MM family microcontrollers with microAptiv™ UC core and ECC Flash program memory. They feature the microMIPS™ instruction set for 35% smaller code while retaining 98% performance compared to MIPS32 processors. These PIC32MM MCUs are from Microchip's lowest power and most cost-effective family of 32-bit PIC32 microcontrollers. They are high performance general purpose MCUs ideal for applications demanding low power and longer battery life. Featuring core-independent peripherals, these MCUs offload key fucntions from the CPU. The devices are fully supported by Microchip’s MPLAB® Code Configurator (MCC) software to help simplify designs. Typical target applications include IoT sensor nodes, environmental monitoring devices, portable medical or fitness devices, building automation/control and low-cost motor control applications.

Microcontroller features:

High-performance 32-Bit RISC CPU
microMIPS™ instruction set
16-bit/32-bit wide instructions with 32-bit wide data path
Two sets of 32 register files (32-bit) to reduce interrupt latency
Single-cycle 32 x 16 multiply and two-cycle 32 x 32 multiply
+2.0 to +3.6V operating voltage
Low-power operation: 500 nA sleep current for RAM retention mode

Analogue features:

Up to 14-channel, software-selectable 10/12-Bit SAR ADC
Two analogue comparators with input multiplexing
5-bit DAC with output pin

Peripheral features:

Two 4-wire SPI modules (up to 25 Mbps) with I²S
Two UART modules with LIN
CRC module
Hardware real-time clock and calendar (RTCC)
Seven 16-Bit Timers
One multiple output module and two single output modules
Up to 20 peripheral pin select (PPS) re-mappable pins
Two configurable logic cells with internal connections to select peripherals and PPS

High-performance 32-bit microcontrollers designed for: High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name PIC32MM
Package Type UQFN
Mounting Type Surface Mount
Pin Count 40
Device Core MIPS32® MicroAptiv™
Data Bus Width 32bit
Program Memory Size 64 kB
Maximum Frequency 25MHz
RAM Size 8 kB
ADC Channels 14
Typical Operating Supply Voltage 3.3 V
Length 5mm
Dimensions 5 x 5 x 0.55mm
Number of Timers 7
Number of ADC Units 1
ADCs 14 x 10 bit, 14 x 12 bit
Width 5mm
Program Memory Type Flash
Timers 7 x 16 bit
Height 0.5mm
Timer Resolution 16bit
Maximum Operating Temperature +85 °C
ADC Resolution 10 bit, 12 bit
Minimum Operating Temperature -40 °C
Instruction Set Architecture RISC
270 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each: (In a Pack of 5)
THB 58.656
(exc. VAT)
THB 62.762
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
THB58.656
THB293.28
25 - 45
THB55.724
THB278.62
50 - 95
THB52.938
THB264.69
100 - 495
THB50.29
THB251.45
500 +
THB47.776
THB238.88
*ตัวบ่งบอกราคา / price indicative
ตัวเลือกบรรจุภัณฑ์ / Packaging Options :
