MikroElektronika ARM MINI M4 MINI-M4 Development Board Development Board MIKROE-1595

  • RS Stock No. 882-9017
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. MIKROE-1595
  • ผู้ผลิต / Manufacturer MikroElektronika
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

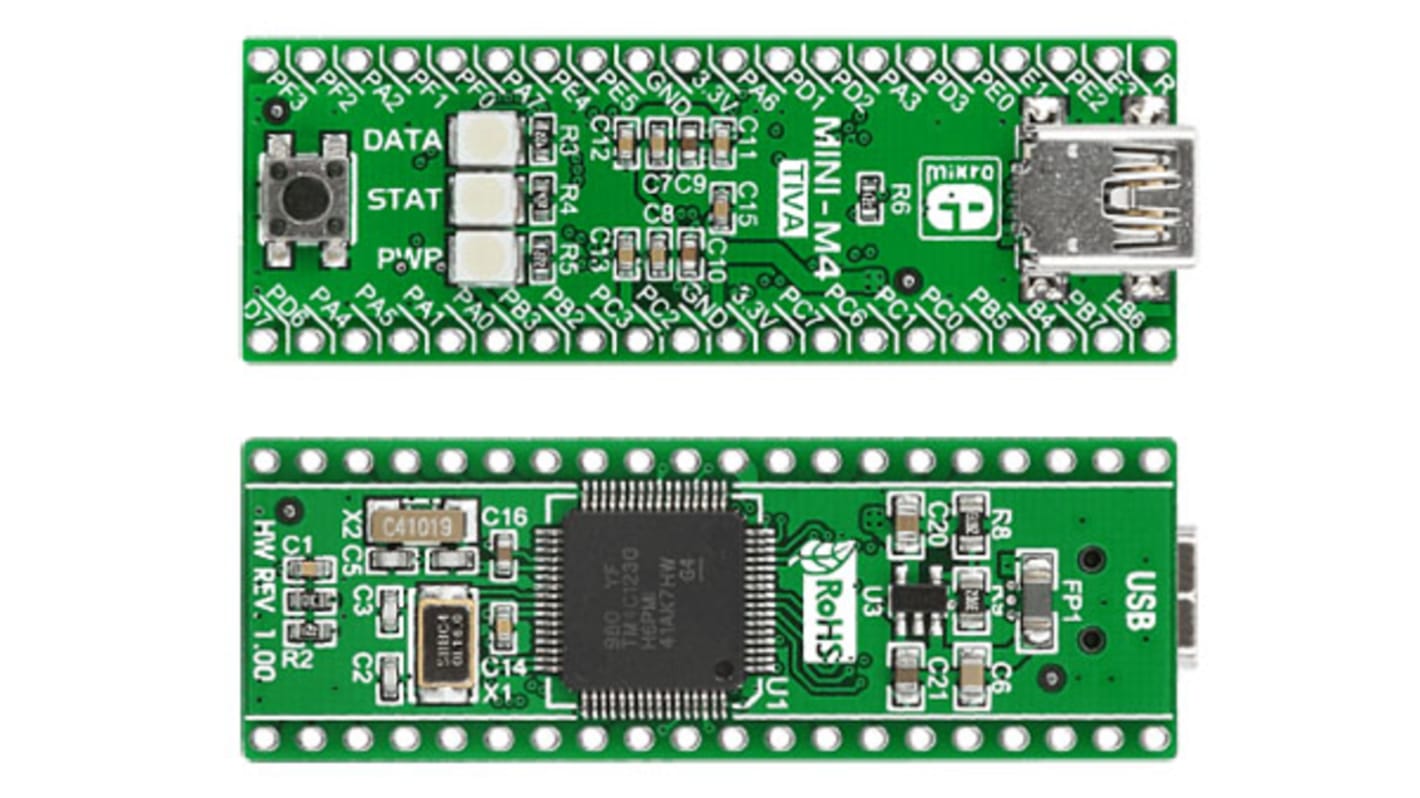

ARM Mini-M4 Tiva™ MCU Development Board

The ARM Mini-M4 Tiva™ MCU Development Board is a tiny development board for the Tiva™ C Series microcontrollers. The Tiva™ microcontrollers stand out for their 65 nanometer flash process technology, their large memory capacity and power saving, with a TM4C123GH6PM MCU on-board the ARM Mini-M4.

Features & Benefits of the Mini-M4 Tiva™
•TM4C123GH6PM microcontroller
•16 MHz crystal oscillator
•Connection pads
•USB MINI-B connector
•3 signal LEDs (Data, STAT & Power Supply)
•Reset button
•Power supply regulator
•Preprogrammed fast USB HID bootloader
•3.3 V power supply
•Can be powered from a USB cable

คุณสมบัติ / Specifications
คุณสมบัติ Value
Classification Development Board
Kit Name ARM MINI M4
Technology MINI-M4 Development Board
Device Core ARM
Processor Family Name TM4C123
Processor Part Number TM4C123GH6PM
Processor Type MCU
10 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 893.66
(exc. VAT)
THB 956.22
(inc. VAT)
Units
Per unit
1 - 9
THB893.66
10 +
THB885.64
