- RS Stock No.:
- 802-9428
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NUCLEO-L152RE
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
สินค้าหมดและไม่สามารถสั่งซื้อล่วงหน้าได้ในขณะนี้
ขออภัย เราไม่มีสินค้าในสต็อกและไม่สามารถสั่งซื้อล่วงหน้าได้ในขณะนี้
เพิ่ม / Added
ราคา / Price Each
THB603.06
(exc. VAT)
THB645.27
(inc. VAT)
Units | Per unit |
1 - 9 | THB603.06 |
10 + | THB595.38 |
- RS Stock No.:
- 802-9428
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NUCLEO-L152RE
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

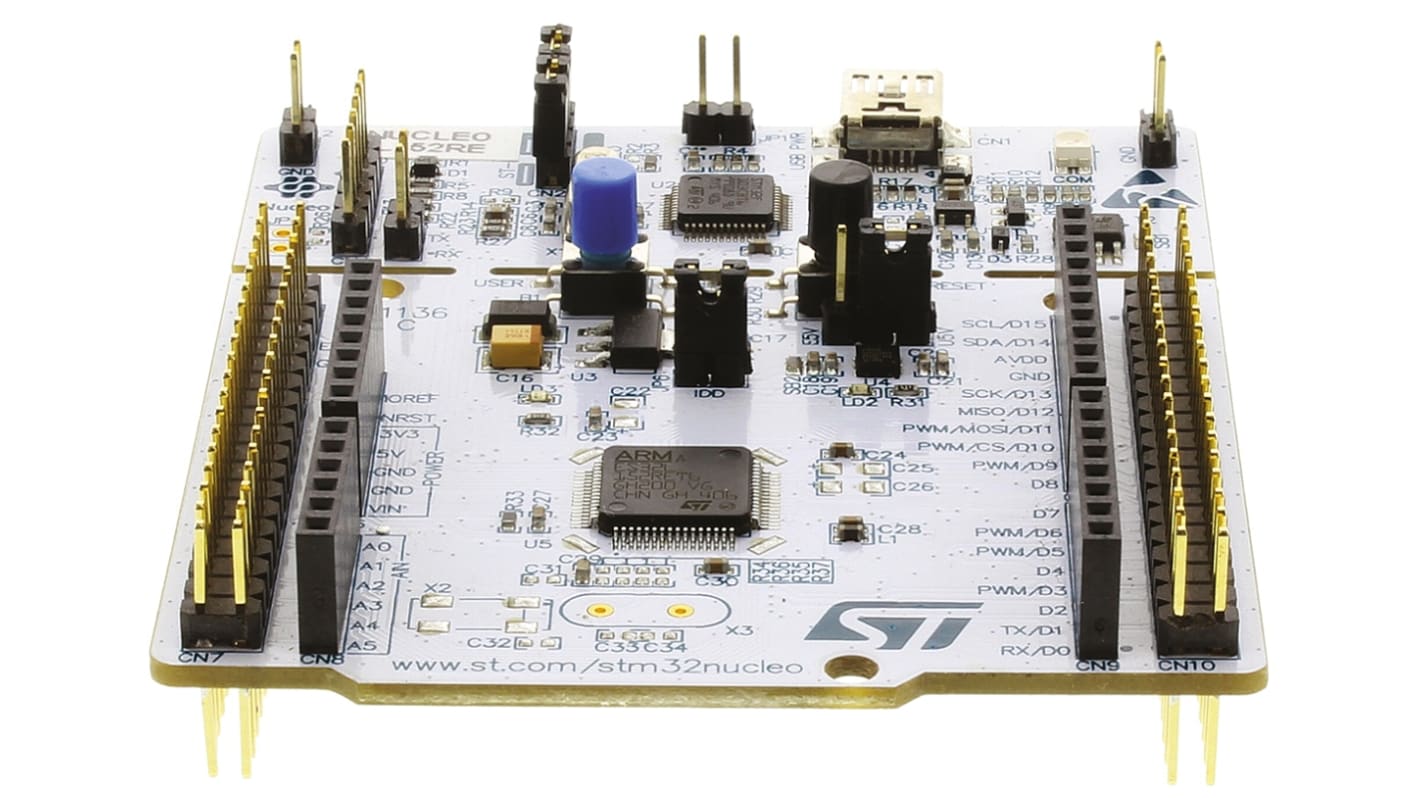

NUCLEO-L152RE Nucleo-64 Development Board
This STM32 Nucleo-64 board provides an affordable and flexible way for users to build prototypes with the ultra-low power STM32L152RET6 microcontroller. Arduino Uno v3 and ST morpho headers expand the functionality with a choice of Shields. The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based and ARM mbed.
STM32L152RET6 32MHz Cortex-M3 core microcontroller with 512KB ECC Flash memory, 80KB RAM, 16KB ECC EEPROM
Serial communication interfaces: USART, SPI, I²C, I²S, USB
23 x Capacitive sensing channels
LCD driver for up to 4 x 32 or 8 x 28 segments
CRC calculation unit
96-bit unique ID
Arduino Uno v3 connectivity support
ST morpho extension pin headers for access to all GPIO
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
Flexible board power supply
3 x LEDs: USB communication, Power and User
Reset and User pushbuttons
ARM mbed™ Enabled (see http://mbed.org)
Serial communication interfaces: USART, SPI, I²C, I²S, USB
23 x Capacitive sensing channels
LCD driver for up to 4 x 32 or 8 x 28 segments
CRC calculation unit
96-bit unique ID
Arduino Uno v3 connectivity support
ST morpho extension pin headers for access to all GPIO
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
Flexible board power supply
3 x LEDs: USB communication, Power and User
Reset and User pushbuttons
ARM mbed™ Enabled (see http://mbed.org)
STM32L1 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics
ARM® Cortex™-M3-based STM32 L1 series uses STs proprietary ultra-low-leakage process technology with an innovative autonomous dynamic voltage scaling and five (5) low-power modes offering unprecedented platform flexibility to fit any application. The STM32 L1 series extends the ultra-low power concept with no compromise on performance.
Ultra-Low-Power mode: 300nA with backup registers (3 wakeup pins)
Ultra-Low-Power mode + Real Time Clock (RTC): 900nA with backup registers (3 wakeup pins)
Low-Power Run mode: down to 9μA
Dynamic Run mode: down to 230μA/MHz
Ultra-Low-Power mode + Real Time Clock (RTC): 900nA with backup registers (3 wakeup pins)
Low-Power Run mode: down to 9μA
Dynamic Run mode: down to 230μA/MHz
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Classification | Development Board |
Kit Name | STM32 Nucleo-64 |
Technology | MCU |
Device Core | ARM Cortex M3 |
Processor Family Name | STM32L1 |
Processor Part Number | STM32L152RET6 |
Processor Type | MCU |
