STMicroelectronics STM32 Nucleo-64 MCU Development Board NUCLEO-F401RE
- RS Stock No.:
- 802-9425
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NUCLEO-F401RE
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
1 สามารถจัดส่งได้จากคลังสินค้าในประเทศไทยภายใน (ภายใน) 3 วันทําการ
6 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB6,361.16
(exc. VAT)
THB6,806.44
(inc. VAT)
| Units | Per unit |
| 1 + | THB6,361.16 |
- RS Stock No.:
- 802-9425
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NUCLEO-F401RE
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details

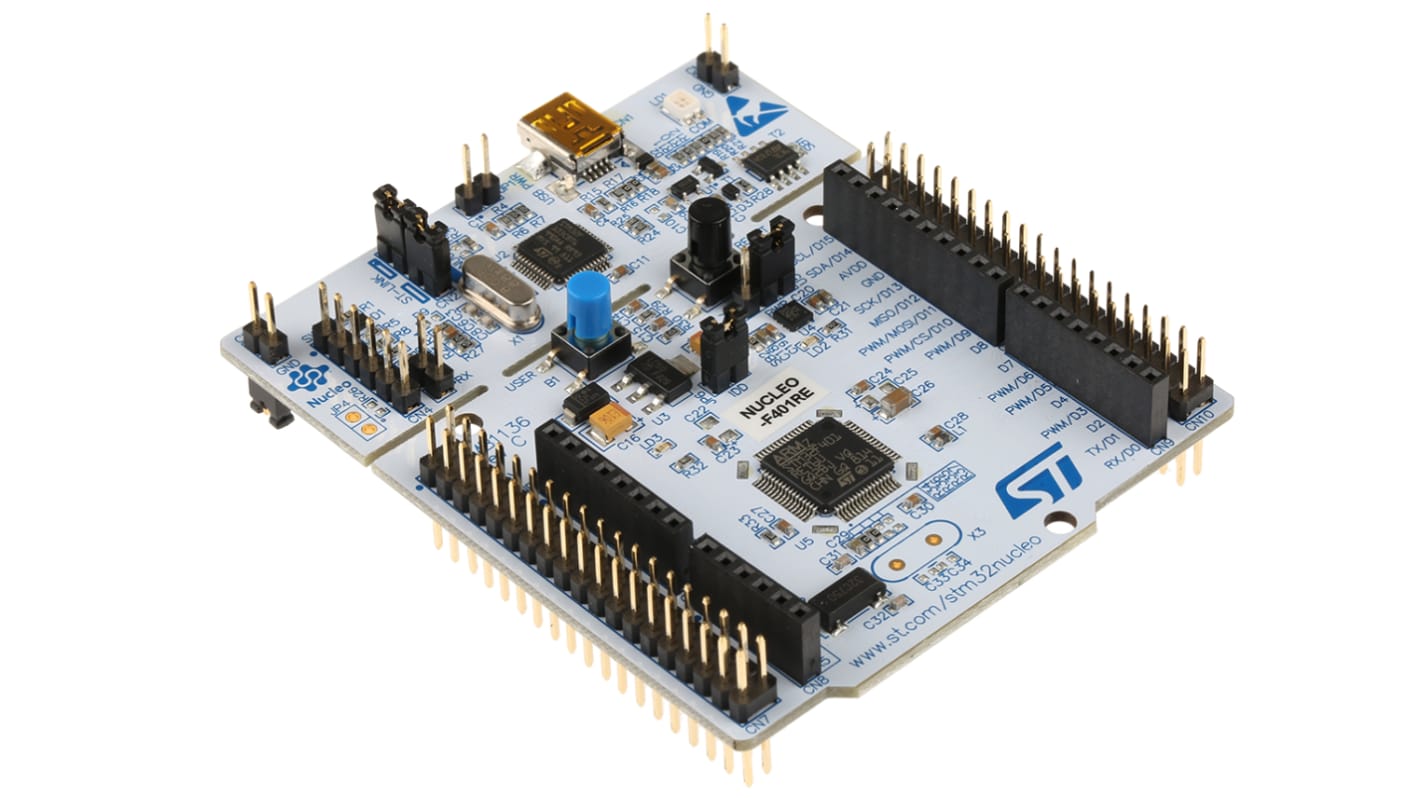

NUCLEO-F401RE Nucleo-64 Development Board
This STM32 Nucleo-64 board provides an affordable and flexible way for users to build prototypes with the STM32F401RET6 microcontroller. Arduino Uno v3 and ST morpho headers expand the functionality with a choice of Shields. The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based and ARM mbed.
• STM32F401RET6 84MHz Cortex-M4F core microcontroller with 512KB Flash memory, 96KB SRAM
• Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory
• Up to 12 serial communication interfaces: USART, IrDA, I²C, SPI, USB, I²S, SDIO
• CRC calculation unit
• RTC with subsecond accuracy and hardware calendar
• 96-bit unique ID
• Arduino Uno v3 Shield connectivity
• ST morpho extension pin headers for access to all GPIO
• ST-LINK/V2-1 debugger/programmer with SWD connector
• Flexible board power supply
• USB OTG or FS Device with micro-AB connector
• 3 x LEDs: Power LED, USB communication, User LED
• User and Reset pushbuttons
• 32.768 KHz crystal oscillator
• ARM mbed Enabled (mbed.org)
STM32F4 Series 32-Bit ARM Cortex-M4 Microcontrollers, STMicroelectronics
The ARM Cortex-M4 based STM32 F4 series of high-performance MCUs with DSP and FPU instructions is an extension of the industry-leading STM32 portfolio towards even higher performance. Up to 180 MHz operating frequency.
Up to 2x USB 2.0 OTG FS/HS
SDIO (Secure Digital Input Output)
USART, SPI, I²C
I²S (Inter-IC Sound) + Audio PLL
16 and 32 Bit Timers
Up to 3x 12-Bit ADC
Low Voltage 1.7 V to 3.6 V
SDIO (Secure Digital Input Output)
USART, SPI, I²C
I²S (Inter-IC Sound) + Audio PLL
16 and 32 Bit Timers
Up to 3x 12-Bit ADC
Low Voltage 1.7 V to 3.6 V
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Classification | Development Board |
| Kit Name | STM32 Nucleo-64 |
| Technology | MCU |
| Device Core | ARM Cortex M4F |
| Processor Family Name | STM32F4 |
| Processor Part Number | STM32F401RET6 |
| Processor Type | MCU |
