- RS Stock No.:
- 170-7993
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- HEF4011BT,653
- ผู้ผลิต / Manufacturer:
- Nexperia
15000 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (On a Reel of 2500)
THB6.43
(exc. VAT)
THB6.88
(inc. VAT)
Units | Per unit | Per Reel* |
2500 - 2500 | THB6.43 | THB16,075.00 |
5000 - 10000 | THB6.301 | THB15,752.50 |
12500 - 22500 | THB6.175 | THB15,437.50 |
25000 + | THB6.052 | THB15,130.00 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 170-7993
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- HEF4011BT,653
- ผู้ผลิต / Manufacturer:
- Nexperia
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

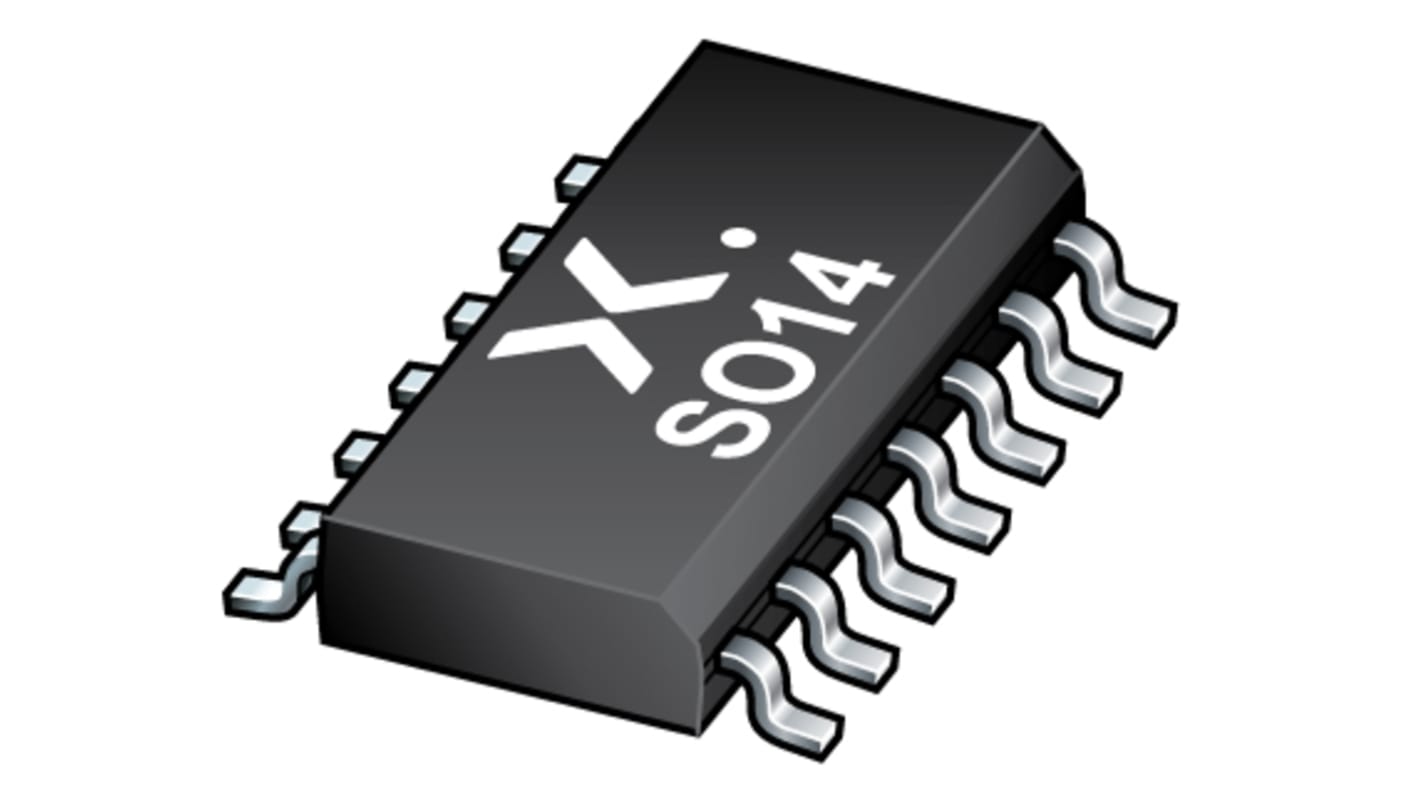

4000 Series Logic Gates, Nexperia
The HEF4011B is a quad 2-input NAND gate. The outputs are fully buffered for the highest noise immunity and pattern insensitivity to output impedance. It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS(usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features and benefits
Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
4000 CMOS Logic Family, Nexperia
CMOS Family devices
Wide operating voltage range: 3 to 18V
Wide operating voltage range: 3 to 18V
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Logic Function | NAND |
Mounting Type | Surface Mount |
Number of Elements | 4 |
Number of Inputs per Gate | 2 |
Package Type | SO |
Pin Count | 14 |
Logic Family | HEF |
Input Type | CMOS |
Maximum Operating Supply Voltage | 15 V |
Maximum High Level Output Current | -4.2mA |
Maximum Propagation Delay Time @ Maximum CL | 110 ns @ 50 pF |
Minimum Operating Supply Voltage | 3 V |
Maximum Low Level Output Current | 4.2mA |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
Width | 4mm |
Height | 1.45mm |
Dimensions | 8.7 x 4 x 1.45mm |
Output Type | Buffer |
Propagation Delay Test Condition | 50pF |
Length | 8.7mm |
