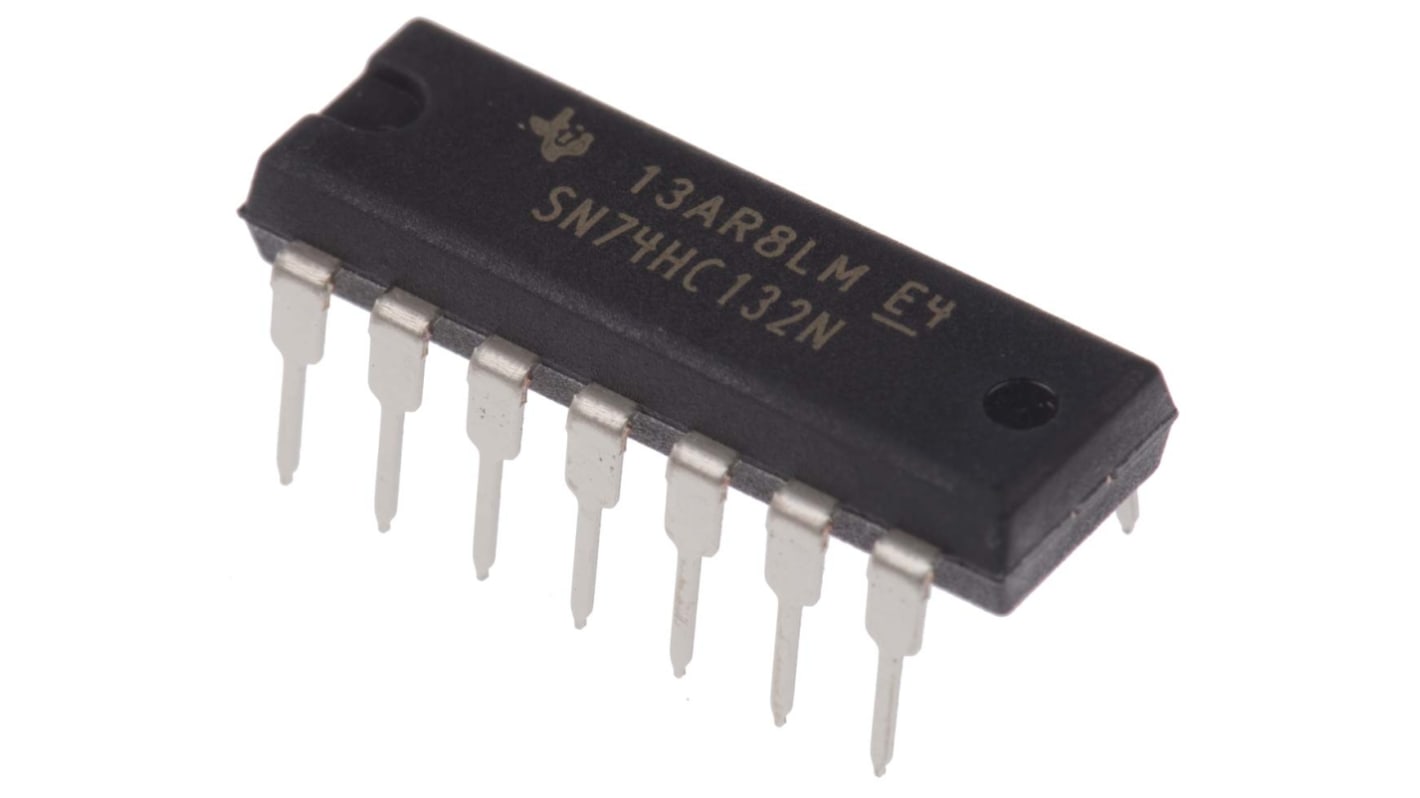

Texas Instruments SN74HC132N, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin PDIP

RS Stock No.:: 443-025
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: SN74HC132N
ผู้ผลิต / Manufacturer:: Texas Instruments

Texas Instruments SN74HC132N, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin PDIP

251 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)

เพิ่ม / Added

ราคา / Price Each

THB34.08

(exc. VAT)

THB36.47

(inc. VAT)

Units	Per unit
1 - 6	THB34.08
7 - 12	THB33.21
13 +	THB32.71

RS Stock No.:: 443-025
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: SN74HC132N
ผู้ผลิต / Manufacturer:: Texas Instruments

ข้อมูลทางเทคนิค / Technical Data Sheets

ESD Control Selection Guide V1

Legislation and Compliance

รายละเอียดสินค้า / Product Details

74HC Family Logic Gates, Texas Instruments

Texas Instruments range of standard Logic Gates from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

74HC Family

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Logic Function	NAND
Mounting Type	Through Hole
Number of Elements	4
Number of Inputs per Gate	2
Schmitt Trigger Input	Yes
Package Type	PDIP
Pin Count	14
Logic Family	HC
Input Type	Schmitt Trigger
Maximum Operating Supply Voltage	6 V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ Maximum CL	120 ns @ 2 V, 21 ns @ 6 V, 25 ns @ 4.5 V
Minimum Operating Supply Voltage	2 V
Maximum Low Level Output Current	5.2mA
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+85 °C
Propagation Delay Test Condition	50pF
Dimensions	19.3 x 6.35 x 4.57mm
Height	4.57mm
Width	6.35mm
Length	19.3mm
