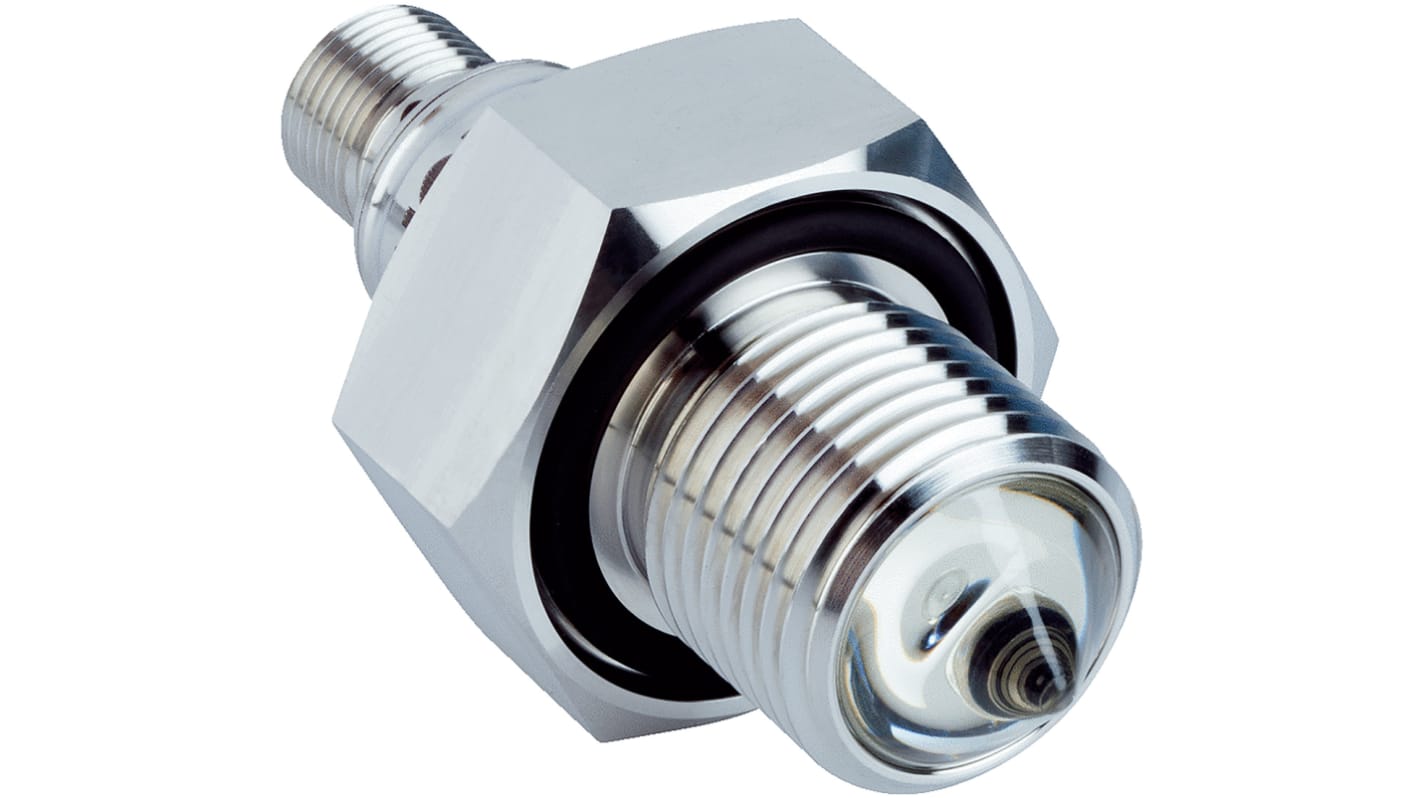

Sick GRF Series Optical Point Level Switch Level Switch, NC, NPN Output, G1/2 Thread, Stainless Steel Body
- RS Stock No.:
- 183-7324
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- GRF18S-N234LV
- ผู้ผลิต / Manufacturer:
- Sick
2 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB4,264.89
(exc. VAT)
THB4,563.43
(inc. VAT)
Units | Per unit |
1 + | THB4,264.89 |
- RS Stock No.:
- 183-7324
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- GRF18S-N234LV
- ผู้ผลิต / Manufacturer:
- Sick
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
รายละเอียดสินค้า / Product Details
Rugged fill level measurement in fluid media
Small, compact design, no medium calibration required
Process temperature up to 55 °C, process pressure up to 16 bar
Process connection G
Highly medium resistant due to stain-less steel housing 1.4404, polysul-fone apex
Output available as PNP or NPN transistor
Benefits
Small, compact sensor ideal for difficult installation conditions with limited space
Quick commissioning without medi-um calibration saves time and money
No moving mechanical parts reduce maintenance and eliminate the need to recalibrate, even after long periods of use
Small, compact design, no medium calibration required
Process temperature up to 55 °C, process pressure up to 16 bar
Process connection G
Highly medium resistant due to stain-less steel housing 1.4404, polysul-fone apex
Output available as PNP or NPN transistor
Benefits
Small, compact sensor ideal for difficult installation conditions with limited space
Quick commissioning without medi-um calibration saves time and money
No moving mechanical parts reduce maintenance and eliminate the need to recalibrate, even after long periods of use
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Device Type | Optical Point Level Switch |
Mounting Type | G1/2 Thread |
Switch Output | NC, NPN |
Body Material | Stainless Steel |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +55°C |
Maximum DC Voltage | 30V |
Maximum Pressure | 16bar |
Series | GRF |
Standards Met | CE Certified, UL Listed |
Current Rating | ≤30 mA |
