- RS Stock No.:
- 135-9775
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DT024DTFT
- ผู้ผลิต / Manufacturer:
- Displaytech
256 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB1,312.95
(exc. VAT)
THB1,404.86
(inc. VAT)
Units | Per unit |
1 - 4 | THB1,312.95 |
5 + | THB1,181.61 |
- RS Stock No.:
- 135-9775
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DT024DTFT
- ผู้ผลิต / Manufacturer:
- Displaytech
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
Displaytech TFT LCD Display Modules
Displaytech's TFT LCD display modules are designed to combine performance with value. These reliable TFT LCD modules are suitable for a wide variety of industrial, medical and consumer applications. The driver ICs are mounted directly on to the glass and are as follows:
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A

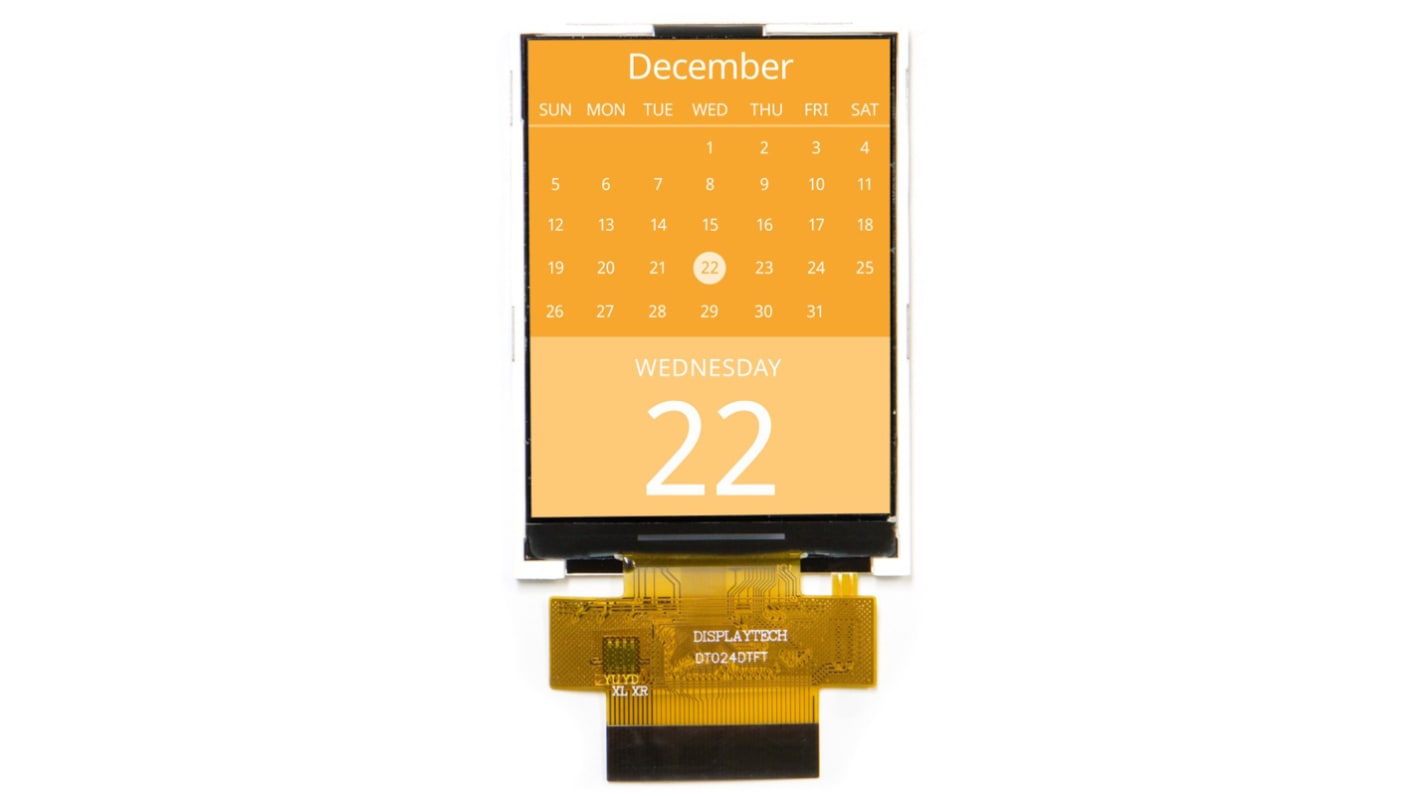

The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.
Transmissive TFT LCD display modules
LED backlight
DC voltage input
Connection to drive the display module is via FPC (Flexible Printed Circuit)
Operating temperature range: -20 to +70°C
Viewing direction: 6 oclock (DT035TFT and DT035TFT-TS are: 12 oclock)
Touch screen versions come fitted with a 4 wire resistive touch screen
LED backlight
DC voltage input
Connection to drive the display module is via FPC (Flexible Printed Circuit)
Operating temperature range: -20 to +70°C
Viewing direction: 6 oclock (DT035TFT and DT035TFT-TS are: 12 oclock)
Touch screen versions come fitted with a 4 wire resistive touch screen
Note
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Displaytech Colour LCD Graphic Dispalys
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Diagonal Display Size | 2.4in |
Interface Type | Parallel, RGB |
Resolution | 240 x 320pixels |
Touch Screen | No |
Viewing Area Dimensions | 37 x 49mm |
Supply Voltage | 2.6 → 3.3 V |
Touch Screen Type | None |
Display Mode | Transmissive |
AC or DC Input Voltage | dc |
Dimensions | 42.72 x 59.46 x 2.2mm |
Display Matrix Technology | IPS TFT |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Brightness | 220cd/m² |
Viewing Area Width | 36.72mm |
Voltage Rating | 2.6 → 3.3V |
Width | 42.72mm |
Number of Colours | 262,144 |
Depth | 2.2mm |
Response Time | 10ms |
Viewing Area Height | 48.96mm |
Contrast Ratio | 500:1 |
Operating Temperature Range | -20 → +70°C |
Power Supply Included | Yes |
Current Rating | 12mA |
Height | 59.46mm |
