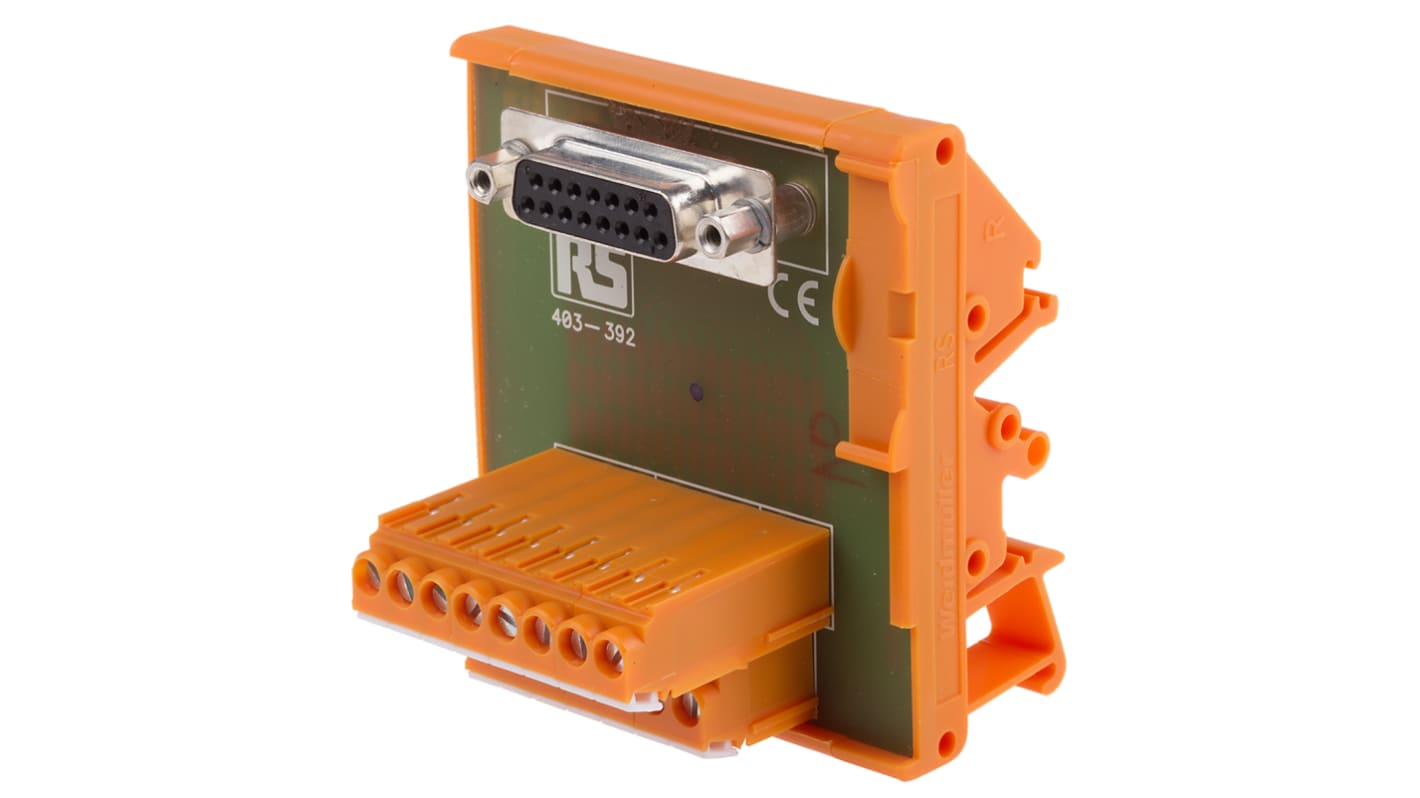

RS PRO 15-Contact Female Interface Module, D-sub Connector, DIN Rail Mount, 1A
- RS Stock No.:
- 403-392
- ผู้ผลิต / Manufacturer:
- RS PRO
3 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB2,939.26
(exc. VAT)
THB3,145.01
(inc. VAT)
| Units | Per unit |
| 1 + | THB2,939.26 |
- RS Stock No.:
- 403-392
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- PL
รายละเอียดสินค้า / Product Details
D Subminiature
Screw terminal interface modules with connectors suitable for interfacing electrical cabling to I/O cards and electronic equipment. Designed to mount on standard BS 5584:1978 'DIN' rail. Orange polyamide 6.6 housings with gold plated connector contacts
Temperature range -20 to +50°C
Height 62mm, Width 70mm
Length: 9-way (45mm), 15-way (65mm), 25-way (90mm), 37-way (110mm)
Suitable CSA: (Flexible)2.5mm², (Solid)4 mm²
Height 62mm, Width 70mm
Length: 9-way (45mm), 15-way (65mm), 25-way (90mm), 37-way (110mm)
Suitable CSA: (Flexible)2.5mm², (Solid)4 mm²
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Gender | Female |
| Number of Contacts | 15 |
| Connector Type | D-sub |
| Mounting Type | DIN Rail Mount |
| Voltage Rating | 50 V |
| Current Rating | 1A |
| Cable CSA | 4mm² |
| Dimensions | 65 x 70 x 62mm |
| Depth | 62mm |
| Length | 65mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| Width | 70mm |
