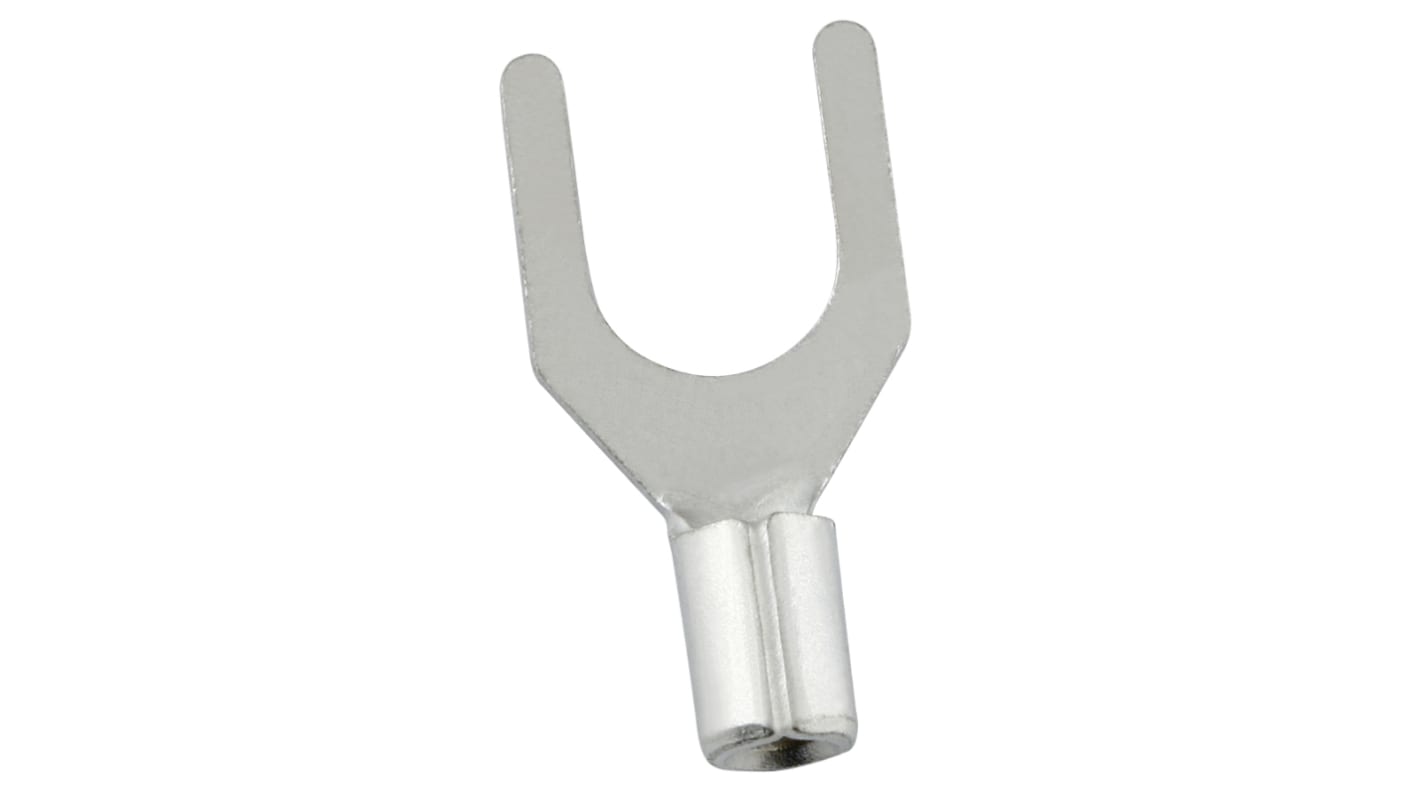

RS PRO Uninsulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 4.3mm Stud Size
- RS Stock No.:
- 178-8696
- ผู้ผลิต / Manufacturer:
- RS PRO
1900 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Bag of 100)
THB2.592
(exc. VAT)
THB2.773
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | THB2.592 | THB259.20 |
| 1000 - 1900 | THB2.54 | THB254.00 |
| 2000 - 4900 | THB2.489 | THB248.90 |
| 5000 - 24900 | THB2.439 | THB243.90 |
| 25000 + | THB2.007 | THB200.70 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 178-8696
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
รายละเอียดสินค้า / Product Details
The RS PRO Uninsulated spade connector has overall length of 16mm with thickness of 0.75mm and 600V of voltage rating.
Terminal material: Copper
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Insulation | Uninsulated |
| Width | 7.2mm |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | 4.3mm |
| Overall Length | 16mm |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 0.75mm |
