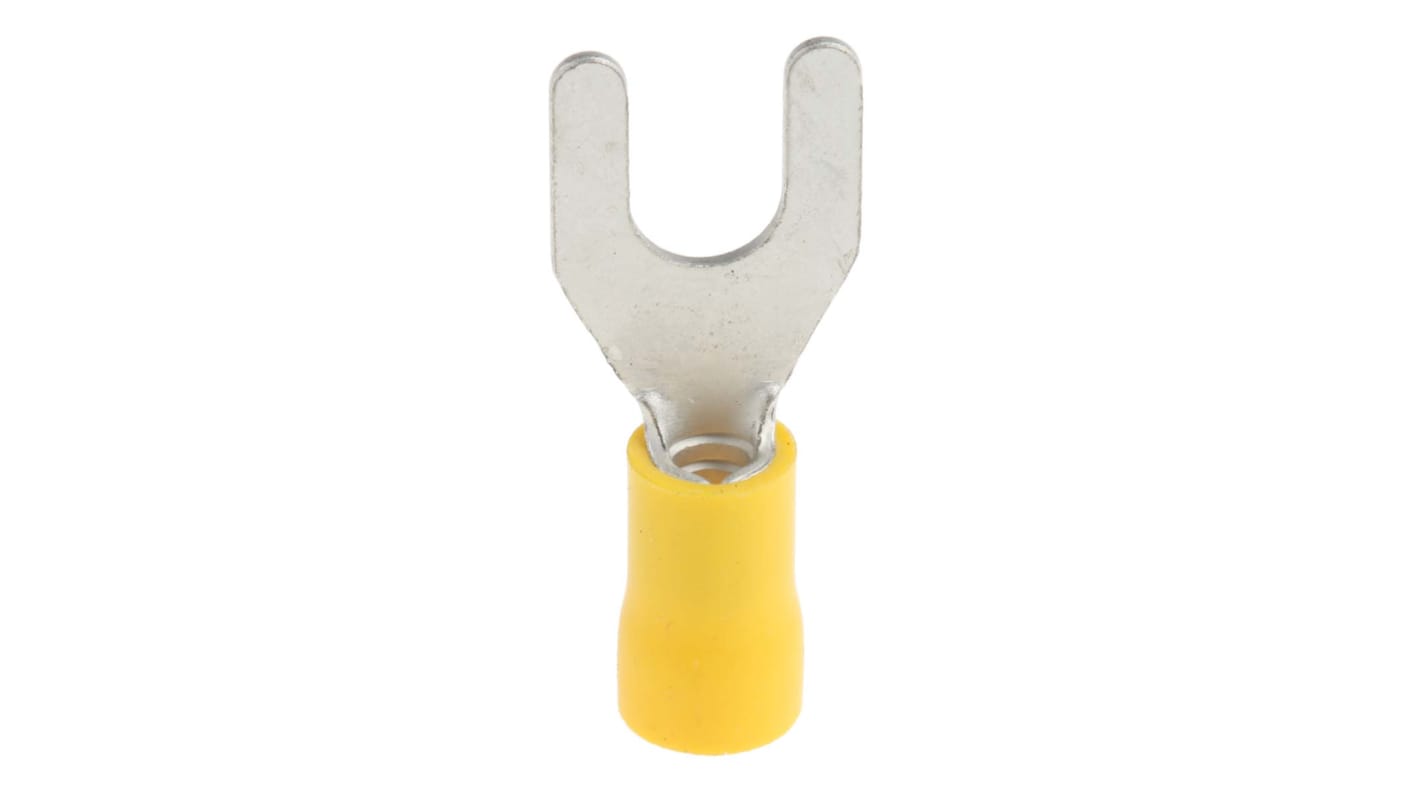

RS PRO Insulated Crimp Spade Connector, 2.5mm² to 6mm², 12AWG to 10AWG, M6 Stud Size Vinyl, Yellow
- RS Stock No.:
- 534-474
- ผู้ผลิต / Manufacturer:
- RS PRO
700 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
16700 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 100)
THB24.115
(exc. VAT)
THB25.803
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 400 | THB24.115 | THB2,411.50 |
| 500 - 2400 | THB23.512 | THB2,351.20 |
| 2500 - 4900 | THB22.924 | THB2,292.40 |
| 5000 + | THB22.351 | THB2,235.10 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 534-474
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
RS PRO Insulated Crimp Spade Connector, 2.5 mm² to 6 mm², 12 AWG to 10 AWG, M6 Stud Size Vinyl, Yellow
Need a reliable way to connect wiring with screws and studs? Choose this RS PRO insulated crimp-spade connector. You'll commonly find it used in industrial applications, from electronics engineering to telecommunications.
This component doesn't require soldering, making it easy to connect. Simply crimp the end of the connector to secure it in place. The nylon and vinyl insulation sleeves feature a flared design that makes it easier to insert the connector. It has copper contacts for a high level of conductivity, ensuring reliable electrical transmission.
For convenient use, the connector has a yellow colour that makes it easily identifiable. You can use the connector with wiring harnesses, electrical panels and terminal blocks for wires ranging from 12 to 10 AWG (American Wire Gauge) in size.
This component doesn't require soldering, making it easy to connect. Simply crimp the end of the connector to secure it in place. The nylon and vinyl insulation sleeves feature a flared design that makes it easier to insert the connector. It has copper contacts for a high level of conductivity, ensuring reliable electrical transmission.
For convenient use, the connector has a yellow colour that makes it easily identifiable. You can use the connector with wiring harnesses, electrical panels and terminal blocks for wires ranging from 12 to 10 AWG (American Wire Gauge) in size.
Features and Benefits
- Yellow colour
- Copper contact material
- Tin contact plating
- Insulated
- Vinyl insulation material
- Maximum wire size (AWG) of 10 AWG
- Maximum wire size (mm²) of 6 mm²
- Minimum wire size (AWG) of 12 AWG
- Minimum wire size (mm²) of 2.5 mm²
- Overall length of 32.5 mm
- M6 stud size
- Thickness of 1 mm
- Width of 12 mm
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Width | 12mm |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M6 |
| Colour | Yellow |
| Overall Length | 32.5mm |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 1mm |
