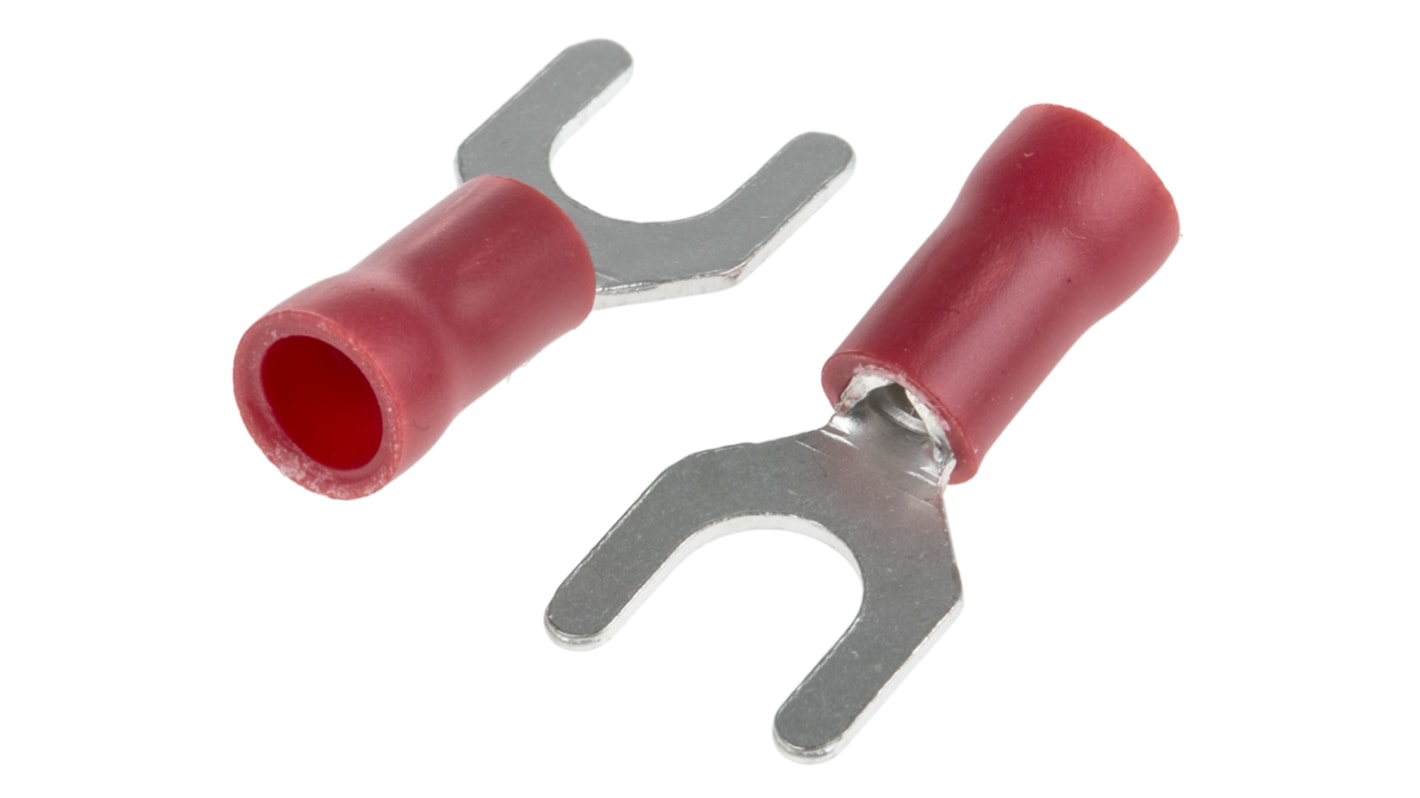

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, M5 Stud Size Vinyl, Red

  • RS Stock No. 534-250
  • ผู้ผลิต / Manufacturer RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
รายละเอียดสินค้า / Product Details

RS Pro Insulated Spade Connectors

RS Pro range of insulated crimp spade terminals made from copper with a tin plating. These spade connectors have vinyl or nylon insulation with a flared design for easy wire insertion. The insulation of these crimp spade terminals is colour coded to correspond with the wire size they are used with. All models are highly reliable and excellent quality.

Features & Benefits

Various metric sizes available Available in Red, Yellow and Blue
Each colour corresponds to different wire sizes

RS Pro Range

คุณสมบัติ / Specifications
คุณสมบัติ Value
Insulation Insulated
Width 8.5mm
Insulation Material Vinyl
Minimum Wire Size mm² 0.5mm²
Maximum Wire Size mm² 1.5mm²
Minimum Wire Size AWG 22AWG
Maximum Wire Size AWG 16AWG
Stud Size M5
Colour Red
Overall Length 20.5mm
Contact Plating Tin
Contact Material Copper
Thickness 0.8mm
9100 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each: (In a Pack of 100)
THB 2.793
(exc. VAT)
THB 2.989
(inc. VAT)
Units
Per unit
Per Pack*
100 - 400
THB2.793
THB279.30
500 - 2400
THB2.646
THB264.60
2500 - 4900
THB2.483
THB248.30
5000 - 9900
THB2.359
THB235.90
10000 +
THB2.221
THB222.10
*ตัวบ่งบอกราคา / price indicative
