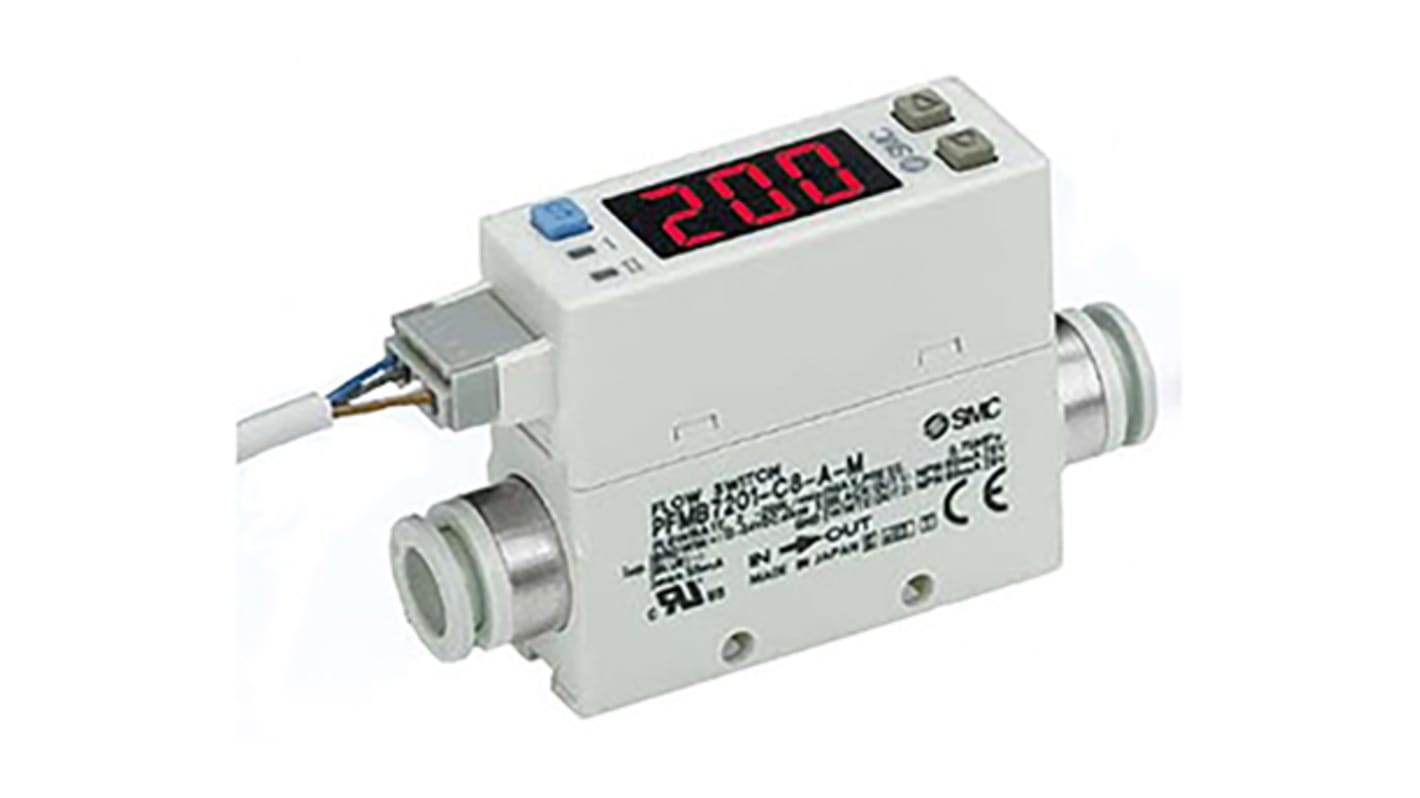

SMC PFMB7 Series Integrated Display Flow Switch for Air, Gas, 2 L/min Min, 200 L/min Max
- RS Stock No.:
- 849-9394
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PFMB7201-C8-A-M
- ผู้ผลิต / Manufacturer:
- SMC
ผลิตภัณฑ์ที่เลิกผลิตแล้ว
- RS Stock No.:
- 849-9394
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PFMB7201-C8-A-M
- ผู้ผลิต / Manufacturer:
- SMC
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
รายละเอียดสินค้า / Product Details
SMC Flow Switch
The SMC PFMB7 series digital flow switch has a flow rate of 2L/min to 200L/min. It is a dual flow switch designed to detect microchip component adsorption in a vacuum, congestion in filter and nozzle. Compact and lightweight design, this device is suitable for use with carbon dioxide, air, nitrogen, or argon. It has 12VDC to 24VDC power supply.
Features and Benefits
Pipe diameter range is 8mm
Connection type is one-touch fitting
Digital 2 colour indication
Integrated flow adjustment valve
Several combinations are possible
Different mounting methods are possible
Display: 3-digit 7-segment
Maximum pressure of 0.7MPa
Connection type is one-touch fitting
Digital 2 colour indication
Integrated flow adjustment valve
Several combinations are possible
Different mounting methods are possible
Display: 3-digit 7-segment
Maximum pressure of 0.7MPa
Certifications
IP40 rated
CE certified
UL approved
CE certified
UL approved
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Media Monitored | Air, Gas |
| Device Type | Integrated Display |
| Minimum Flow Rate | 2 L/min |
| Maximum Flow Rate | 200 L/min |
| Supply Voltage | 12 → 24 V dc |
| Pipe Diameter Range | 8 mm |
| Connection Type | One-Touch Fitting |
| Maximum Pressure | 0.7MPa |
| Material | PBT |
| Minimum Media Temperature | 0 °C |
| Maximum Media Temperature | +50°C |
| Minimum Operating Temperature | 0°C |
| Series | PFMB7 |
| Maximum Operating Temperature | +50°C |
