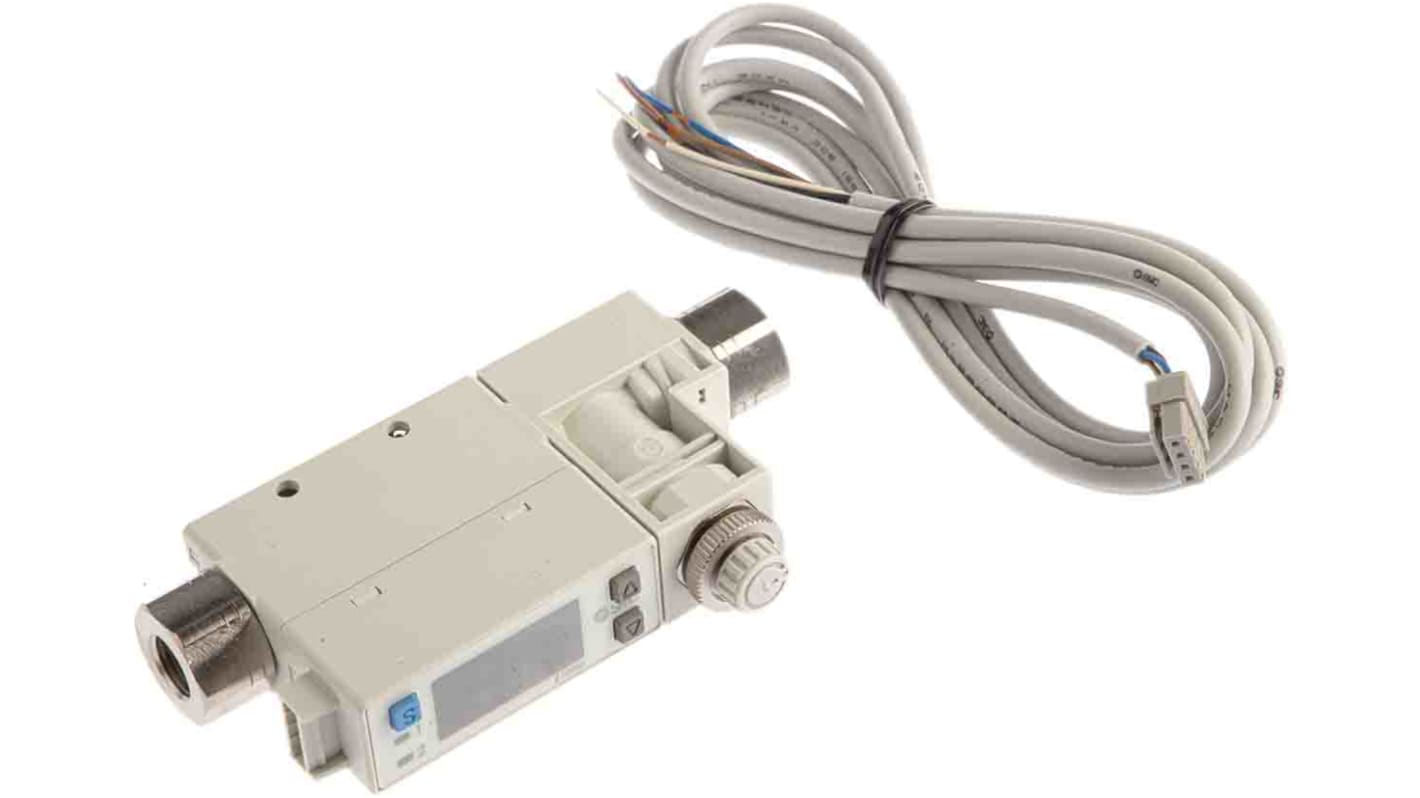

SMC, 0.2 → 10 L/min Flow Controller, PNP, 24 V dc, 3 Digit 7 Segment LED

  • RS Stock No. 721-3957
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PFM710S-F01-F
  • ผู้ผลิต / Manufacturer SMC
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
รายละเอียดสินค้า / Product Details

SMC Dual Switch

The SMC digital flow controller has PNP control output and a 3-digit 7 segment LED display. It has a flow rate that ranges between 0.2L/min and 10L/min. This switch has a 24VDC supply voltage rating. It is initially designed to detect microchip component adsorption in a vacuum. The series is incredibly compact and lightweight compared to the existing flow sensors. It is suitable for use with carbon dioxide, air, nitrogen or argon.

Features and Benefits

Compact and light in weight
Elbow piping can be used
Integrated flow adjustment valve
Several combinations are possible
Different mounting methods are possible
Minimum unit setting is 0.01l/min
Repeatability is ±1%F. S. or less
Grease free
Flow adjustment valve is integrated - reduced piping and space-saving
Response time can be set

คุณสมบัติ / Specifications
คุณสมบัติ Value
Maximum Flow Rate 0.2 → 10 L/min
Control Output PNP
Mounting Style Compact
Supply Voltage 24 V dc
Display Screen 3 Digit 7 Segment LED
Pipe Diameter Range 1/8 in
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
12 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 9,527.26
(exc. VAT)
THB 10,194.17
(inc. VAT)
Units
Per unit
1 +
THB9,527.26
