Fan Speed Controller, Infinitely Variable, 230 V ac, 15A

  • RS Stock No. 748-0832
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. VAC2/-15E
  • ผู้ผลิต / Manufacturer United Automation
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
รายละเอียดสินค้า / Product Details

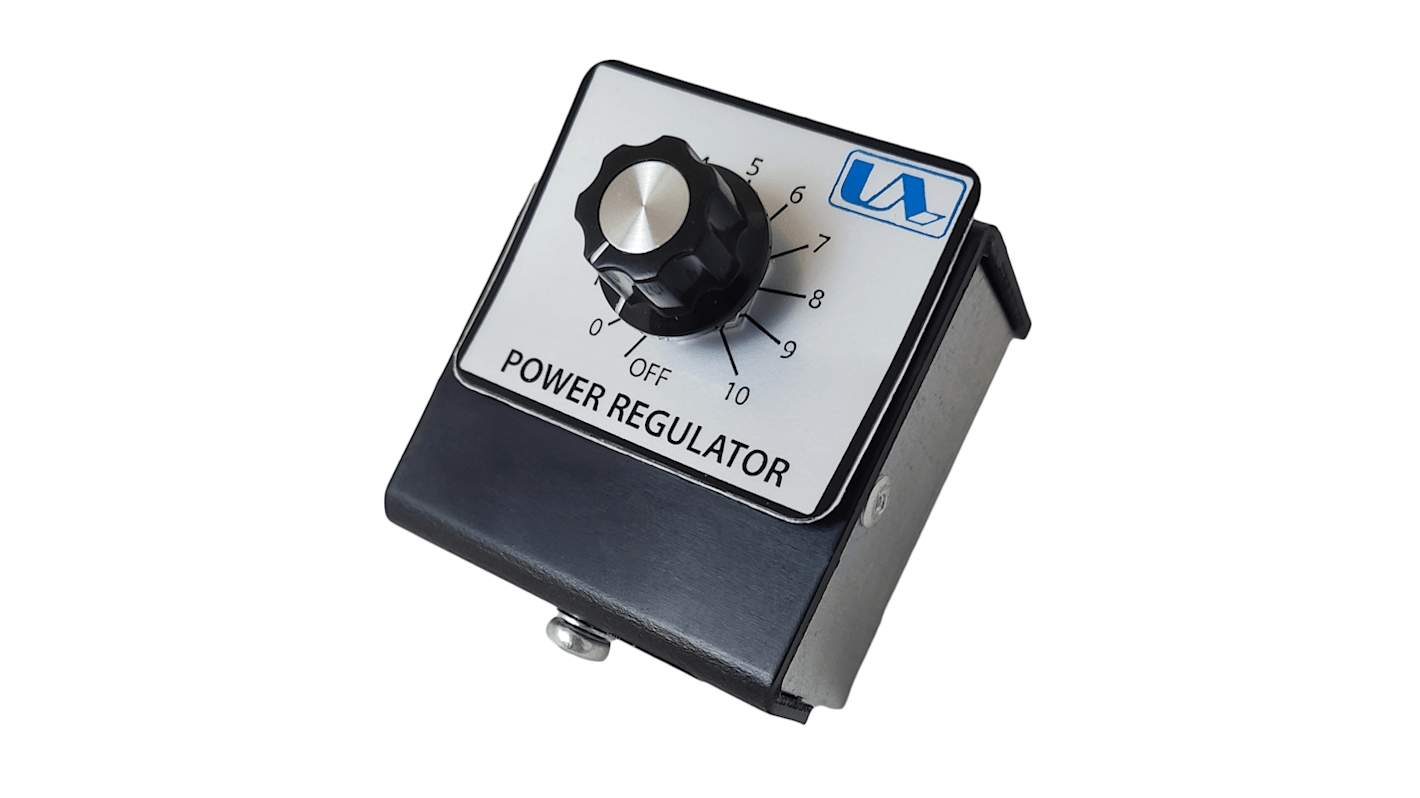

VAC2-15E 15A Fan Speed Controller

These variable phase angle regulators are robust, compact and enclosed units for 230V or 110V up to 15A single phase mains driven inductive loads, such as induction motors, fans & pumps. They give fully adjustable voltage outputs from zero to maximum. A version (/S) of these controllers also incorporate an OFF switch when the potentiometer is fully anti-clockwise.
The controller has an integral RC Snubber network for control of inductive loads.
Minimum Set Speed adjuster (at the rear) allows the designer/installer to fix a minimum output voltage level to prevent a motor being driven too slow.

Infinitely variable 0-98% output
Optional OFF switch on potentiometer (/S versions)
Minimum Set Speed Adjuster
Single hole fixing
Rugged and compact
Large triac for inrush protection
Integral RC Snubber
Suitable applications for most single-phase mains voltage driven Motors & Fans

คุณสมบัติ / Specifications
คุณสมบัติ Value
Speed Settings Infinitely Variable
Maximum Current 15A
Supply Voltage 230 V ac
7 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 2,386.68
(exc. VAT)
THB 2,553.75
(inc. VAT)
Units
Per unit
1 - 9
THB2,386.68
10 - 49
THB2,312.10
50 - 99
THB2,260.49
100 +
THB2,211.96
