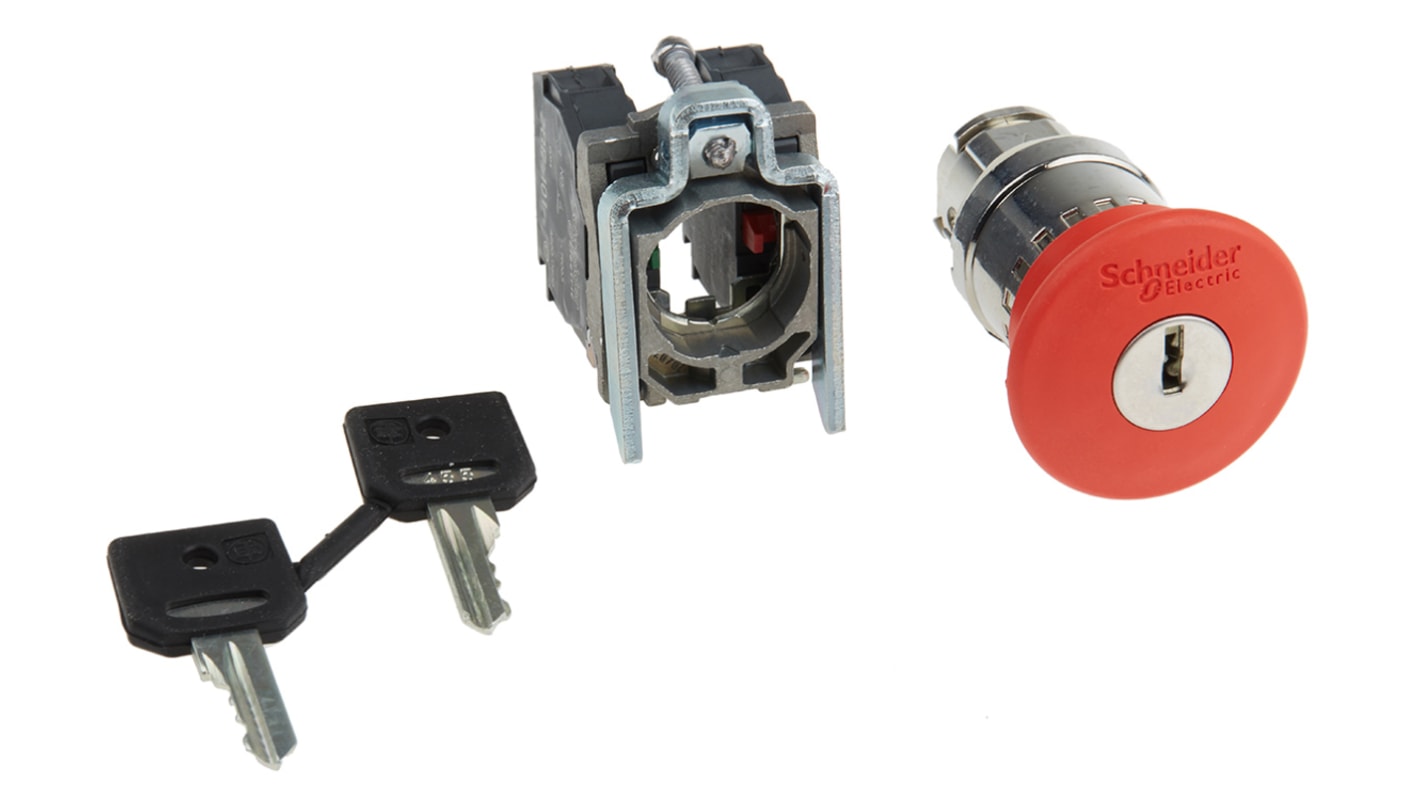

Schneider Electric Harmony XB4 Series Key Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1 NO + 1 NC
- RS Stock No.:
- 795-1283
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- XB4BS9445EX
- ผู้ผลิต / Manufacturer:
- Schneider Electric
ขออภัย เราไม่สามารถตรวจสอบสต็อคสินค้าได้ในเวลานี้ โปรดรีเฟรชเพจอีกครั้ง
เพิ่ม / Added
ราคา / Price Each
THB7,477.48
(exc. VAT)
THB8,000.90
(inc. VAT)
| Units | Per unit |
| 1 + | THB7,477.48 |
Better World
กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม
- RS Stock No.:
- 795-1283
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- XB4BS9445EX
- ผู้ผลิต / Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- FR
รายละเอียดสินค้า / Product Details
Product Details
Harmony XB4 Emergency Stop Push Buttons
The Harmony XB4 range is designed for industry to eliminate complexity of setup. Their flexibility and a robust construction has proven to be the first choice for customers around the world. An ingenious locking system consisting of a snap-fit head and body, tightened with a single screw, ensures easy yet secure mounting.
Schneider range of the Harmony XB4 stop push buttons eliminates the complicated decision of which button you need for the desired application and which standard it must confirm to. The range comply with the two key standards IEC 60204 and ISO 13850.
The Harmony XB4 range offers a metal series of emergency stop push button complete units with a range of push button diameters and operating types.
They can be used in the following industries: machine manufacturers (automotive, textiles, timber), control system panel builders, but also in energy distribution panel builders, public works, building or airports.
Features and benefits
- Effortless to use "turn to release" functionality for easy reset once activated
- Chromium plated metal panel with prominent red round push button, easily alerting to the eye
- 2 NC contacts, for simple configuration
- Short-circuit protection using a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1
- Conforming to several industry standards including, EN/IEC 60204-1, 60947-1, 60947-5-1 and more
- Rated NEMA 13 & NEMA 4X, providing additional protection against environmental disturbances such as dust, oil or spraying of water (primarily fit for indoor use)
- The XB4 E-Stop buttons have a mechanical durability of 300000 cycles
- The base unit E-Stop works well in temperatures ranging from -40°C to 70°C
- IP 65, IP 66, IP 67 & IP 69K rated conforming to IEC 60536, further protecting your device from dust ("dust tight rated") and protected against heavy seas or powerful jet washers at 7,000,000 Pa at 55 degrees celsius
- Schneider Green Premium product as standard across the XB6 Emergency Stop Button range
- 8-month manufacturer warranty with Schneider
Applications
- Machine, chemical & Marine applications (particularly with water/chemical involvement).
- Service sectors such as restaurants, kitchens, car washes and more.
XB4BS9445EX Harmony XB4 Emergency Stop Push Button.
- Complete Emergency stop push button (standard head type).
- XB4.
- Made from Chromium plated metal.
- Zamak fixing collar.
- 22 mm Diameter.
- Operator trigger action / mechanical latching.
- Key release (key number 455).
- Red mushroom head – 40 mm diameter.
- 1 NO plus 1 NC Contacts (slow break operation).
- Screw clamp terminals.
- Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 (screw fix).
- Lifecycle 3000000 cycles.
Protection.
- IP66 to IEC 60529, IP69, IP69K, IP67, IK03.
Standards.
- EN/IEC 60947-5-5, EN 60079-0:2009, EN 60079-31:2009, EN 61000-6-2, EN/ISO 13850, IEC 60079-0:2007, IEC 60079-31:2008.
Certification.
- INERIS 04ATEX9004U.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Mounting Type | Panel Mount |
| Cutout Diameter | 22mm |
| Contact Configuration | 1 NO + 1 NC |
| Push Button Actuation | Key Release |
| Illuminated | No |
| Series | Harmony XB4 |
| Colour | Red |
| Voltage Rating | 600V ac |
| Supply Current | 1.2A |
| Depth | 104.5mm |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Push Button Material | Plastic |
| Pole and Throw Configuration | DPST |
